OK so going back to this

Scenario A has 15psi pushing the diaphragm seat closed.

Scenario B has 5psi pushing the diaphragm seat closed.

and to add, the seat area is pretty much bang on 1" squared


Attachments:
Click to Enlarge
7.37kb
Click to Enlarge
7.86kb

Edited by Sprocket on 16th Apr, 2013.

On 26th Oct, 2004 TurboDave16v said:
 Is it A-Series only? I think it should be...
So when some joey comes on here about how his 16v turbo vauxhall is great compared to ours, he can be given the 'bird'...


On 26th Oct, 2004 Tom Fenton said:
Yep I agree with TD........

Doodmeister

485 Posts
Member #: 149
Senior Member

Alberta, Canada

1st May, 2013 at 03:09:53am



Check this site as it makes for some good reading for Dump Valve specs and questions.

Two things are infinite: the universe and human stupidity; and I'm not sure about the the universe.

Paul R

User Avatar

4018 Posts
Member #: 1757
Back to Fucking Tool status

Swindon

1st May, 2013 at 07:43:34pm

The low pressure version of the boosh valve is wank, I now use the better grade one and its perfect *smiley*

Drives
-Ford S-max Mk2 Ecoboost
-Rover 100 VVC #2 - track project

Searching is all you need on TurboMinis


theoneeyedlizard

User Avatar

7265 Posts
Member #: 1268
The Boom Boom speaker Police!

Essex

1st May, 2013 at 07:53:24pm

Wastegate is better though eh Paul?

In the 13's at last!.. Just

bakker110

313 Posts
Member #: 9367
Senior Member

Derby

6th Jun, 2013 at 07:31:32pm

Where does the nipple on top pipe back into on car?


On 16th Apr, 2013 Sprocket said:
OK so going back to this

Scenario A has 15psi pushing the diaphragm seat closed.

Scenario B has 5psi pushing the diaphragm seat closed.

and to add, the seat area is pretty much bang on 1" squared

Turbo Phil

User Avatar

4634 Posts
Member #: 20
My sister is so fit I won't show anyone her picture

Lake District

6th Jun, 2013 at 08:27:10pm

The inlet manifold.


On 6th Jun, 2013 bakker110 said:
Where does the nipple on top pipe back into on car?


On 16th Apr, 2013 Sprocket said:
OK so going back to this

Scenario A has 15psi pushing the diaphragm seat closed.

Scenario B has 5psi pushing the diaphragm seat closed.

and to add, the seat area is pretty much bang on 1" squared

WWW.TURBO-MINI.COM


bakker110

313 Posts
Member #: 9367
Senior Member

Derby

6th Jun, 2013 at 08:57:12pm

So the dv top goes into the same place as the boost gauge reads from and the mega jolt reads from? All 3 into 1?

The way I see it is it goes actuator -> bleed valve leg 1.
Bleed valve leg 2 goes to atmosphere and bleed valve leg 3 goes back to the turbo inlet housing nipple.


bakker110

313 Posts
Member #: 9367
Senior Member

Derby

6th Jun, 2013 at 09:02:49pm

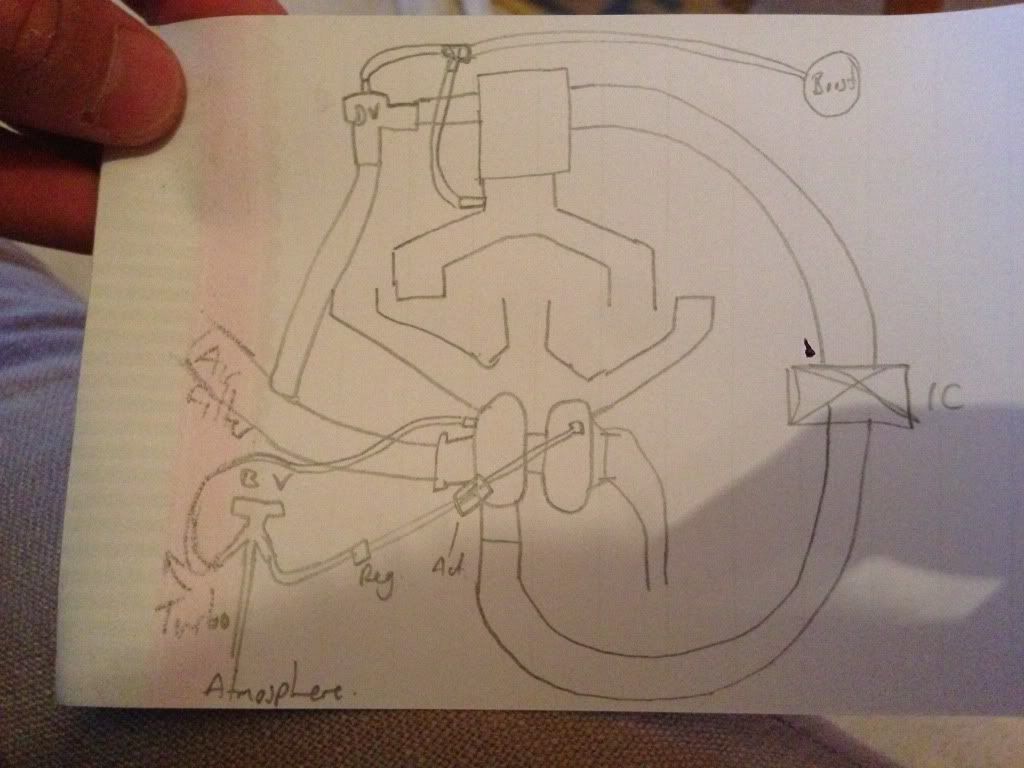

Like this sketch I just did


bakker110

313 Posts
Member #: 9367
Senior Member

Derby

7th Jun, 2013 at 09:00:18pm

Can anyone confirm this sketch is correct? Or wrong of course.

Home > Help Needed / General Tech Chat > dump valve selection
