It was the diff I was referring to, apparently the MED Quaife is a much bigger unit compared to Swiftunes does anyone know if this is correct, and would that imply a stronger unit?

With regards to ratios, how does it work, is it the lower the number the lower the top speed?

1310cc TWINK - T Conversion

a 2.9 diff will turn once per 2.9 revolutions of the pinion (i.e. in 4th the engine too as 4th gear is a 1:1 ratio on most min boxes)

a 4.1 diff will turn once per 4.1 revolutions of the pinion so in effect the engine will be revving:

4.1/2.9 = 1.4 times faster if you use a 4.1 over a 2.9 diff

so in short, the lower number, the faster youll be going for a given rpm

"Turbo's make torque, and torque makes fun"

"did you know you can toast potato waffles?"

Hi, thats a great read, very interesting. As im doing this conversion in the near future!

Could you get some close ups of that oil box/ catcher thing that bolts onto the old fuel pump location? As im interested how it all fits on and works. :)

cheers

all you need is here

http://www.efiminis.olicentral.com/index.php

where? sorry.

Hi,

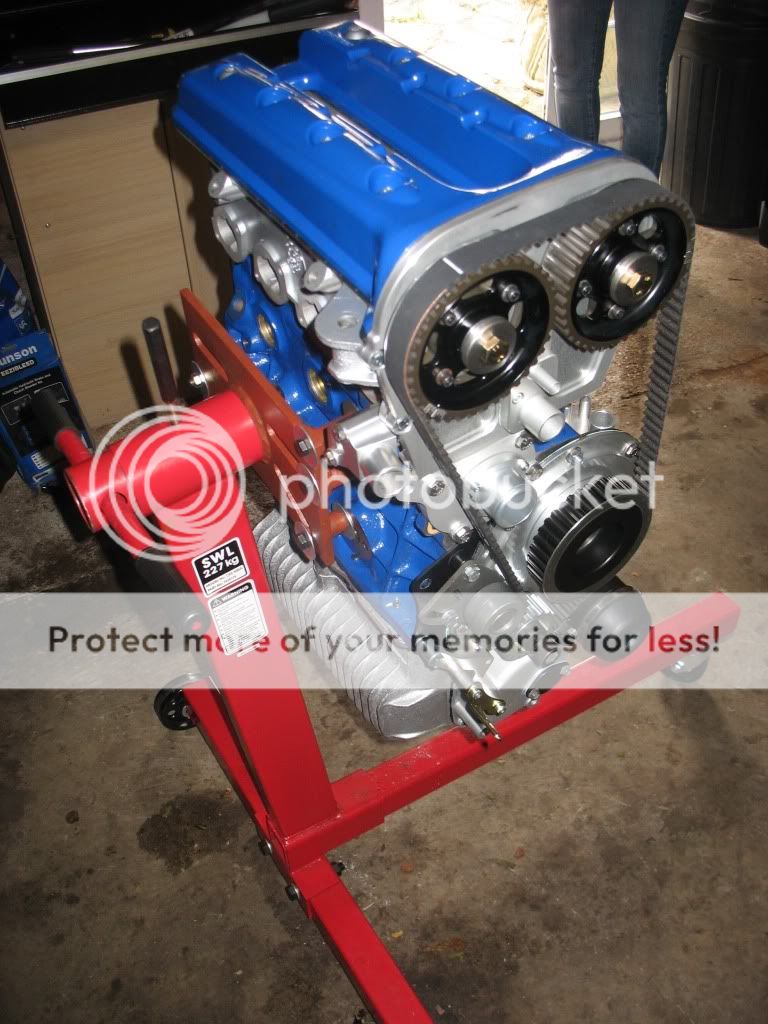

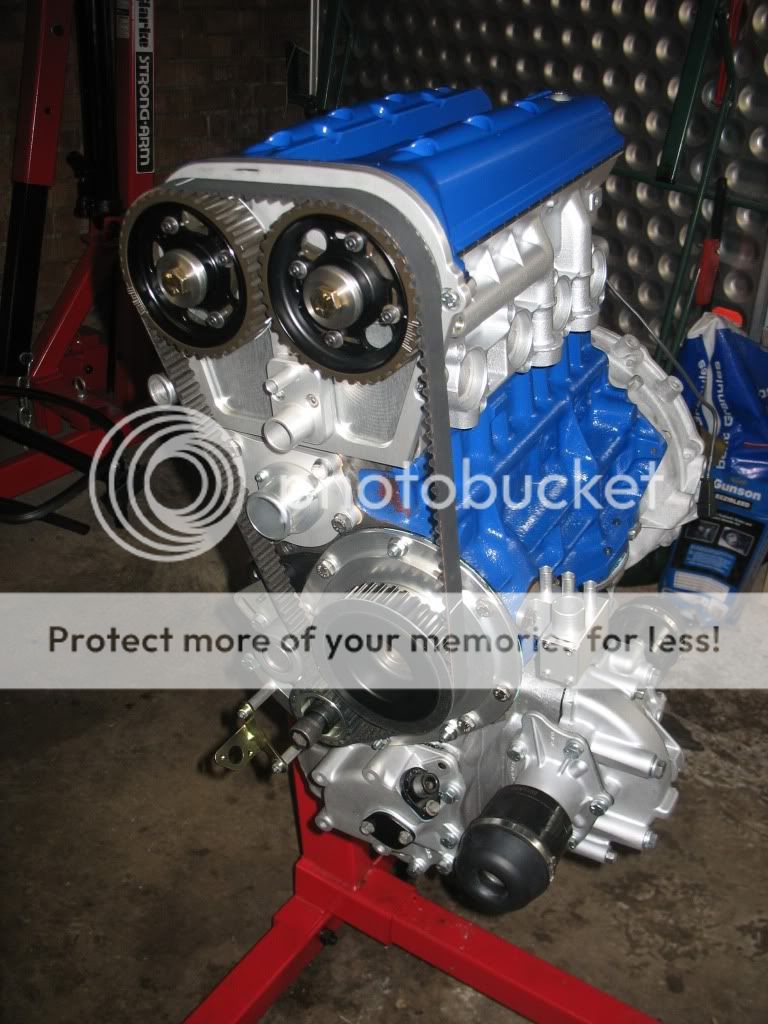

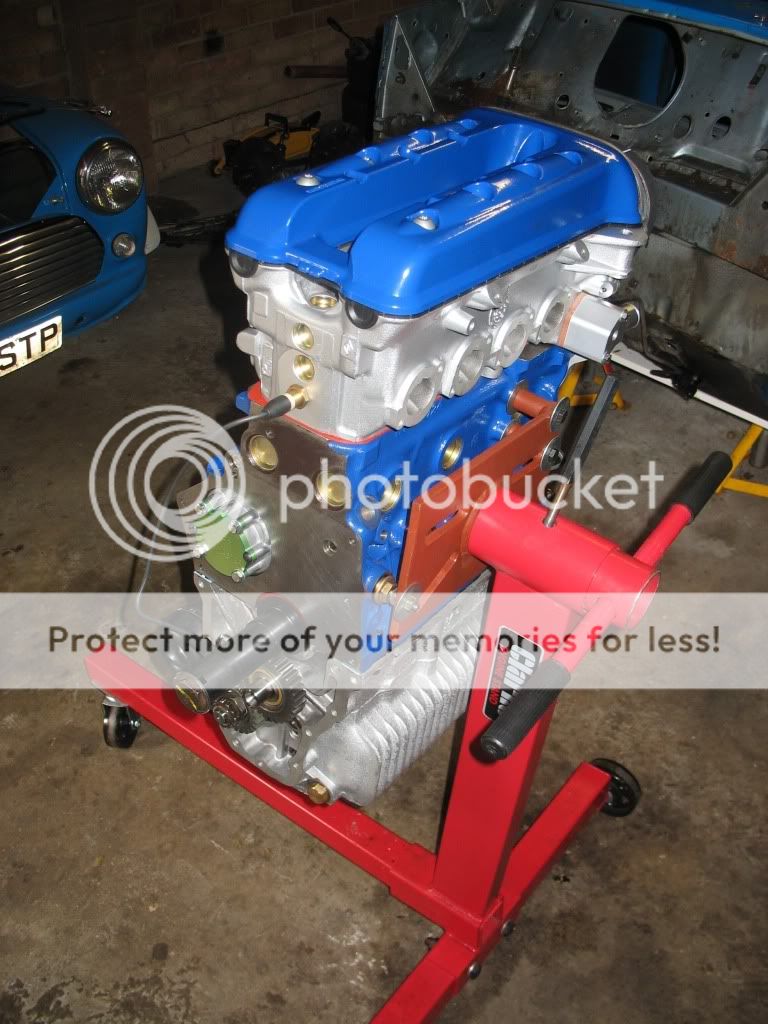

Been a while since I posted an update. But have made good progress recently. I have taken a few snaps of the engine as I go.

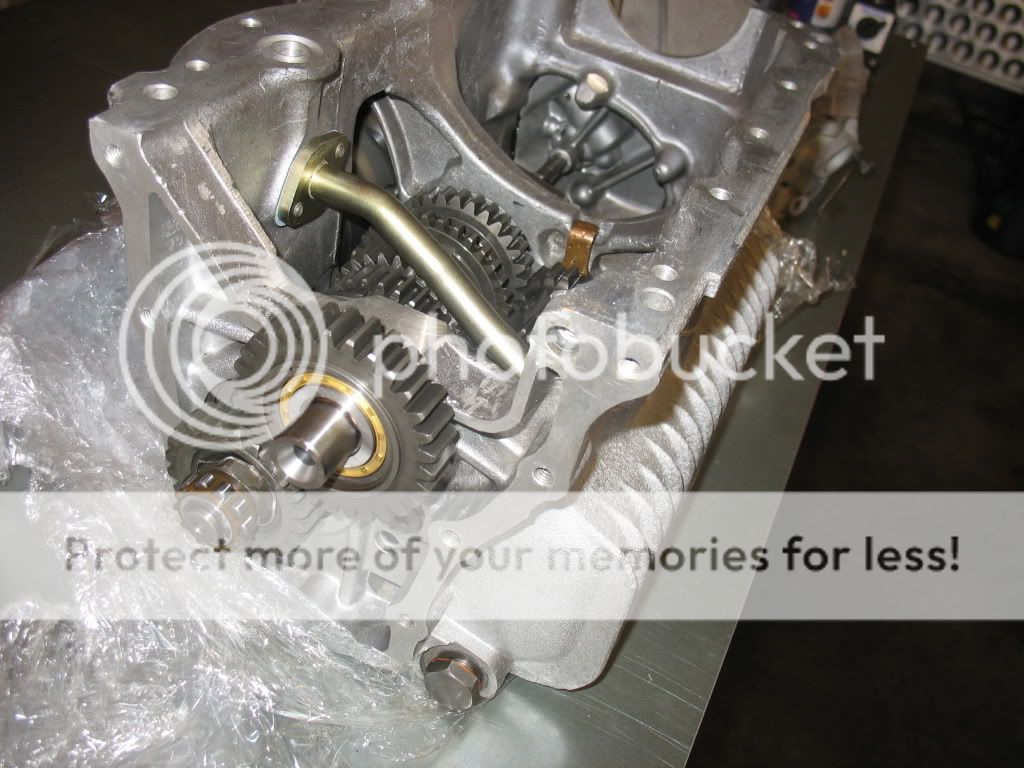

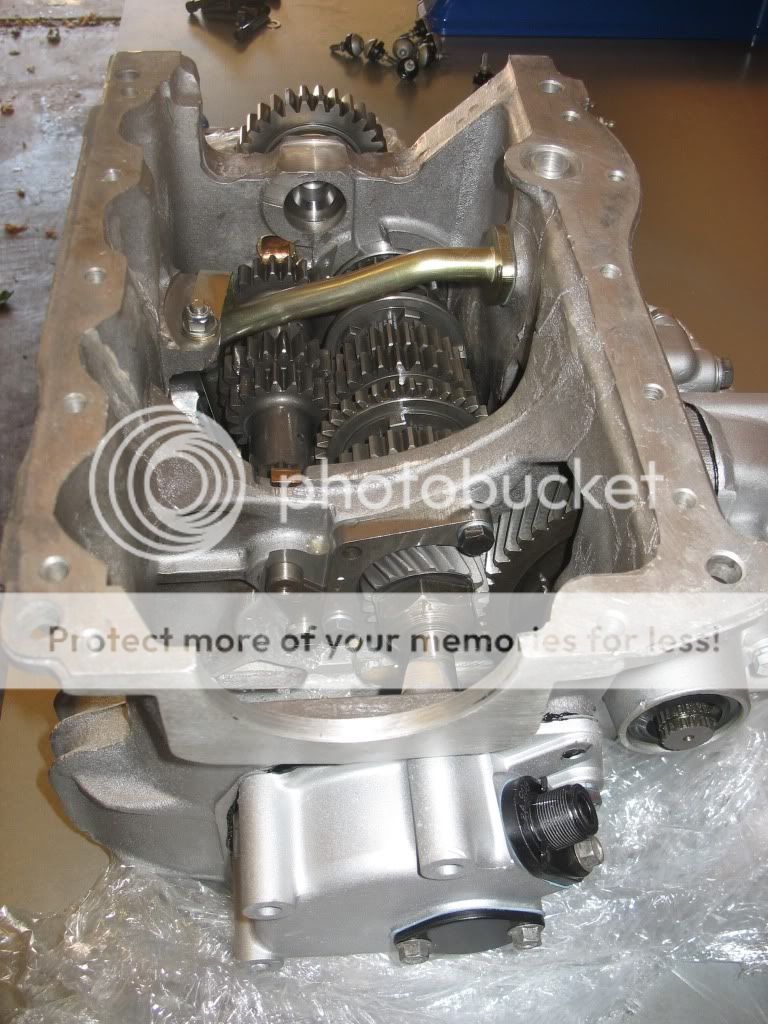

This is a 4 speed dogbox, with needle roller bearings and straight cut transfer gears and Quaife LSD supplied by MED. Excellent piece of kit, very good quality indeed.







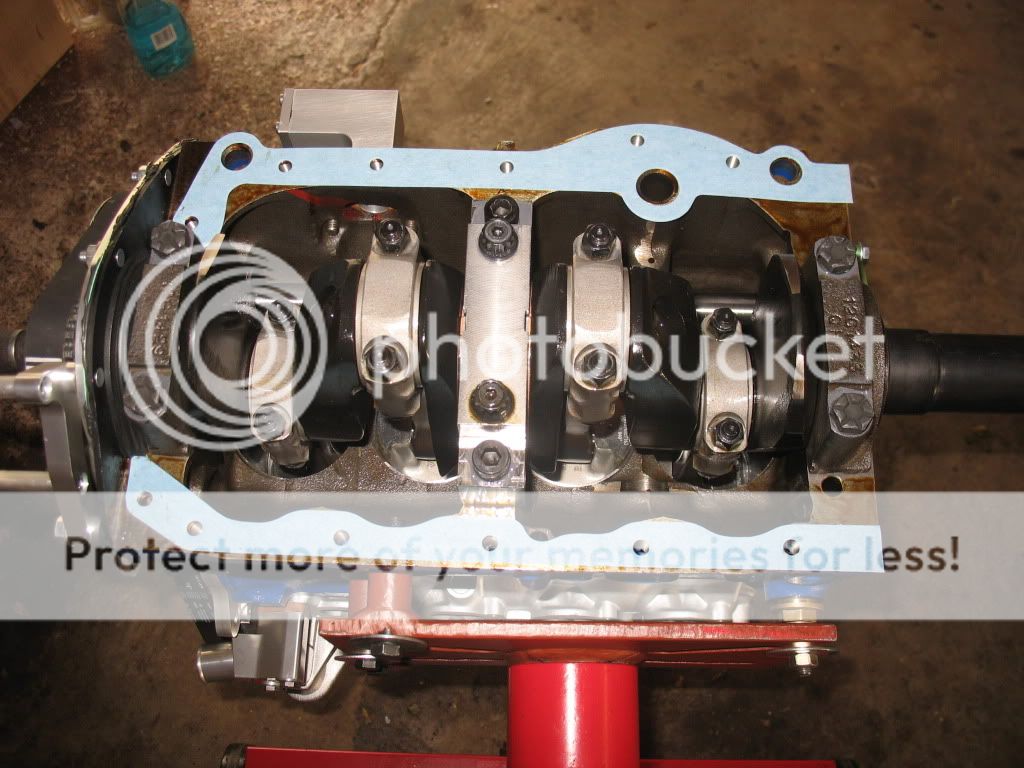

You will note that I have changed the centre main bolts from cheese to 12.9 grade cap head, and MSA54s. MSA54s also on outer caps.



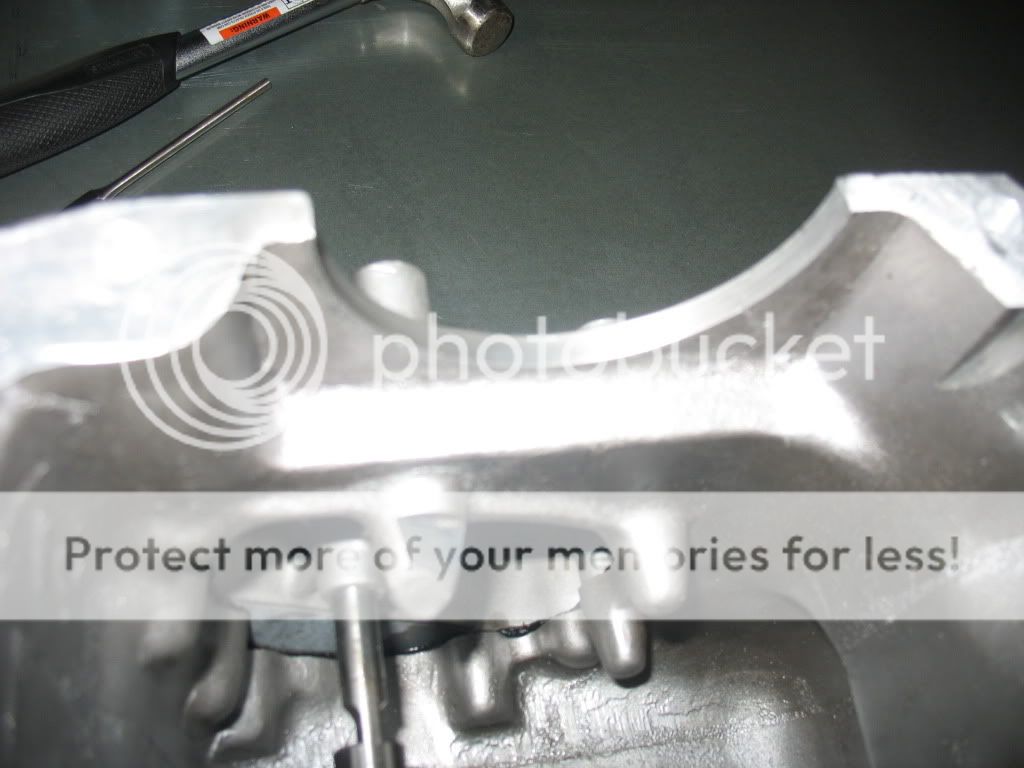

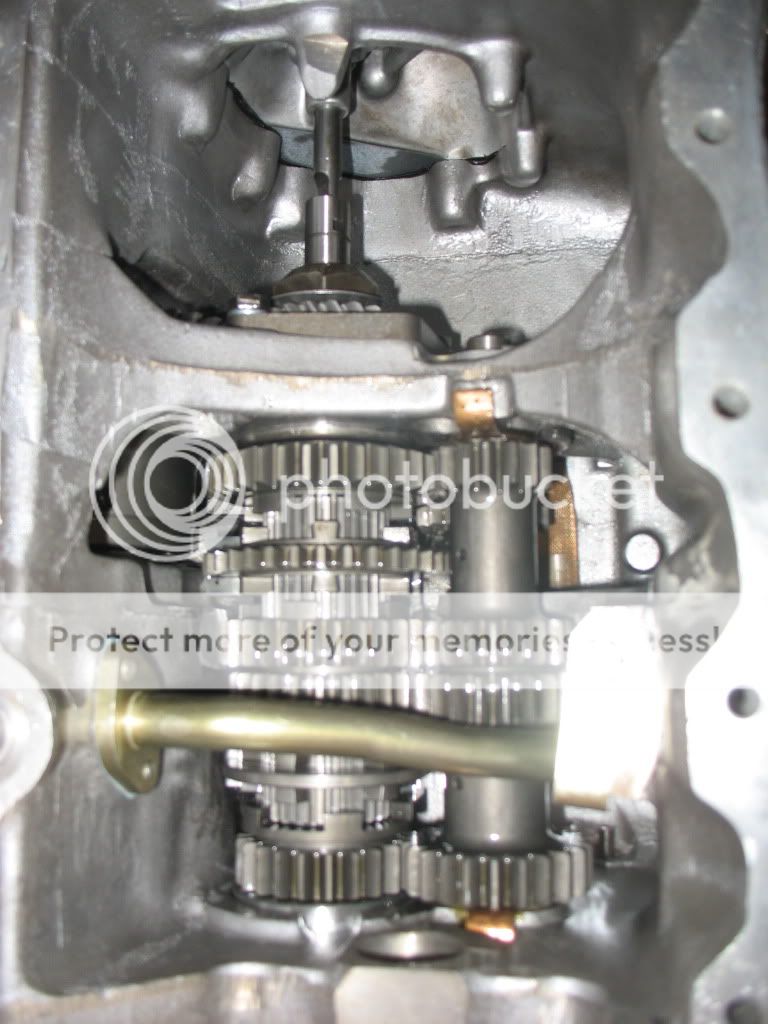

However I wasnt happy with the clearance required for the bolts next to the half moon seal (the gearbox modification nearly breaks through casing). In this location:



So I have removed them, and fitted new 6 stripes:



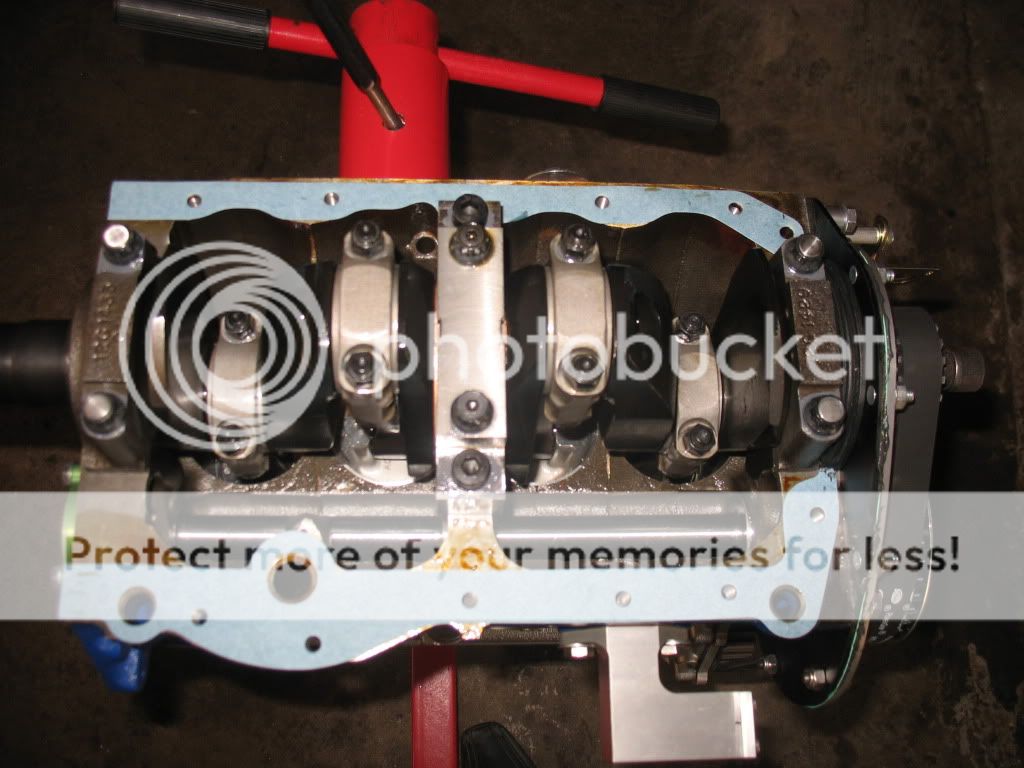

Well seal on both sides of the gasket face, and loctite gasket sealant on both sides of the half moon seal. Gearbox now fitted. Block and gearbox holes enlarged to 5/16'. I have fitted cap head bolts for easier access.





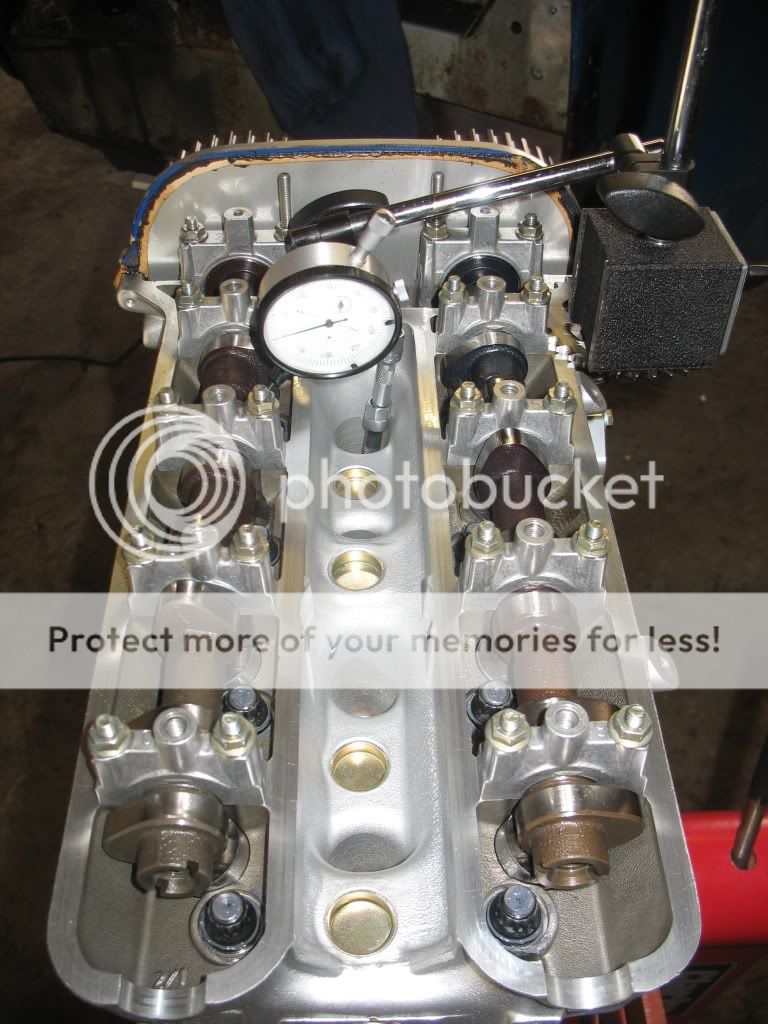

Cams now timed in. I used a safe 2.4mm lift for RS cams using a DTI guage to accurately measure TDC, then placed the pointer on the cam buckets for each the inlet and exhaust respectively. Once on the Dyno or Rolling Road I shall have these timed in further.





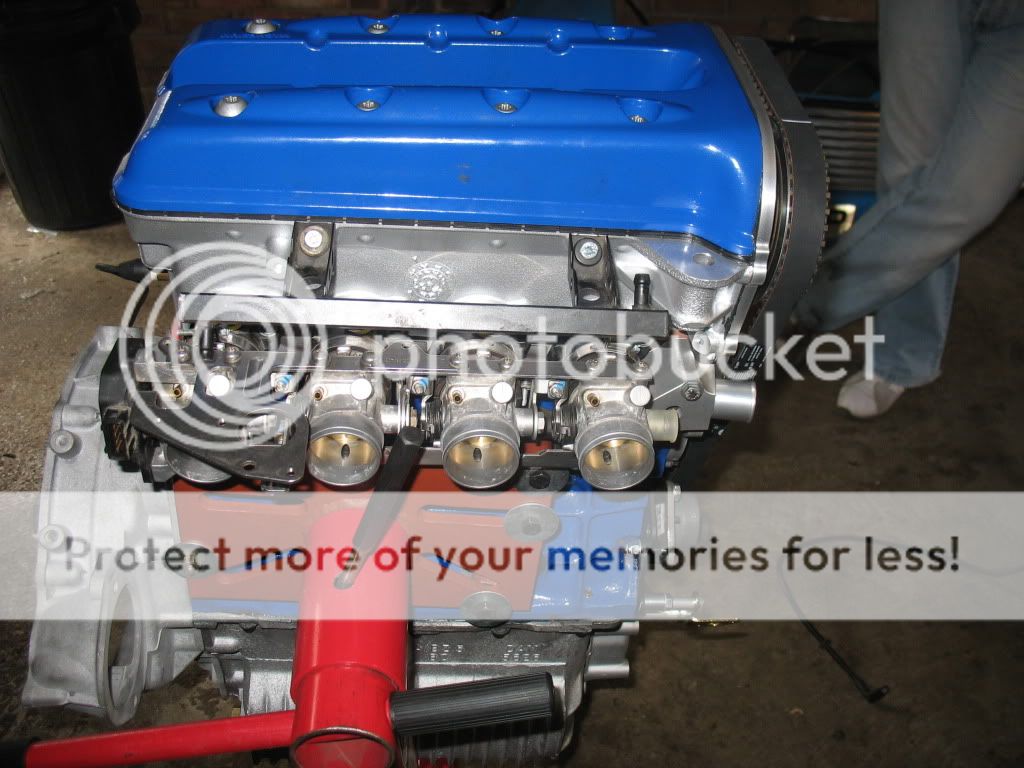

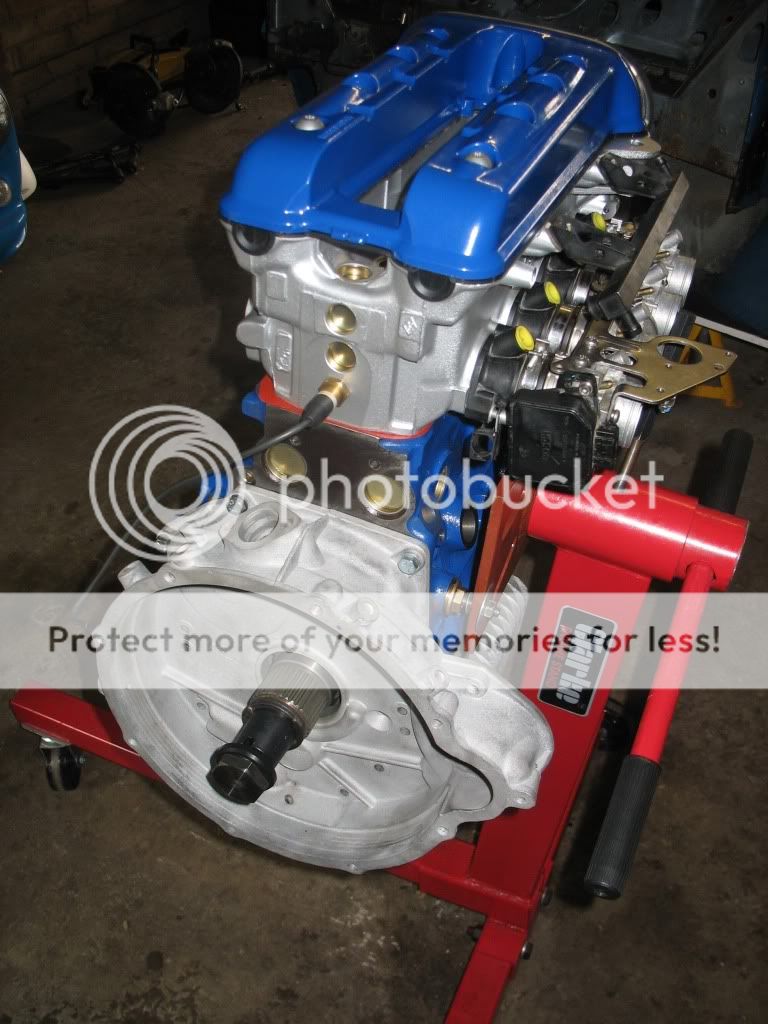

36mm throttle bodies installed:



Billet oil filter installed. A little oil inserted into pump prior to installation:



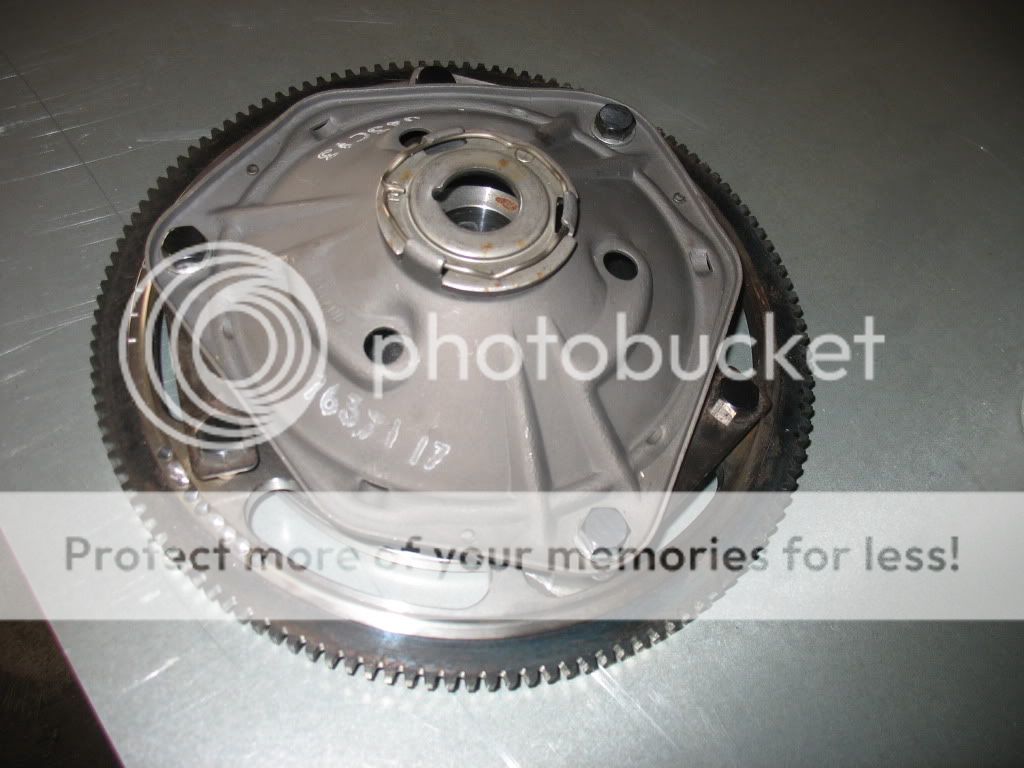

Im now ready to fit my Clutch. This is an MED billet lightened flywheel and backplate, pre verto, pre engaged with orange diaphram.



Ready to be fitted. I am just dry building to check tolerances.



This is the workbench I made a few weeks ago.



All being put together with new stainless steel, or HT Zinc Plated whichever is more appropriate.

I am just awaiting the dowels and primer for the aluminium clutch housing and cover. The Primary gear however is very tight and cannot turn it by hand once the C-clip is in place. So I need to reduce the thickness of the clutch bearing, is this correct?

Hope you enjoyed looking. I am certainly enjoying the build!
