Where was the boost measured? On the tuners equipment or on a gauge in the car or both??

I'd say the rollers are pretty accurate, my n/a engine got 88 banannas and 81 curlies earlier this year, which is about what I expected. On the way home the ignition module packed up outside stonehenge, so I had lots of tourists and vistors laughing at me.

That said, that engine is getting ripped out now for something much more serious.

As far as im aware, it was on both.

feature=mhum

As far as im aware, it was on both.

feature=mhum

As far as im aware, it was on both.

feature=mhum

Was that on both??

I managed 199.5 on the slark rollers this year

Nic. You must be the 200bhp one he was wanting to show me on the computer!!

It was read from the boost gauge on the dash and from the lap top he had plugged in.

feature=mhum

on 5psi boost?

Fastest 998 mini in the world? 13.05 1/4 mile 106mph

Mine is currently running just under 5 PSI. The one that Neil tried to show me the graph of was at 20+PSI. Not sure if it was Nics. He wanted to show me it as a comparison

feature=mhum

No 18 i think it was

It did 202 on 20 but it didnt look a particularly good curve at the top end

If only the fan could have reached the intercooler.... the intake temp would not have been 94 deg...

The 200 HP mini had 180lbft but much further up the rev range. Also had a 150hp turbo with 140lbft @500rpm. Looking at all the turbo minis on the compter, the charger setup as is has almost 20hp more than any turbo below 3500 rpm

feature=mhum

The 5 psi confuses me too.

I hope I got this right; but a theoretical(!) calculation on an M45 shows me:

M45 flows about 750cc / rotation
Pulley diameter Mpi:113mm
Std M45 SC pulley: 75mm
Crank to SC ratio = 1,507

SC output: 1,51x750=1130cc (flow per crank turn)
Extra flow/crank turn: 1130-646,5=483,5 (I am building a 1293; 1293/2=646,5)
483,5/646,5=0,75bar = 10,8psi

This is all theoretical!
No compensation for leaks in SC, losses on the way, valve overlap, etc.

But I would think your more likely to push about dubble the 5psi you are saying.

Don't know if the performance you've quoted make more sence with about 10 psi?

Hope this helps you.

Dazed and Confused....

There is certainly plenty of belt slip at the mo. That would certainly cause a loss of power and the power run was done with no tensioner fitted just to see how it would run. We are re mounting the charger to eliminate movement and locating the tensioner

feature=mhum

johhny ,

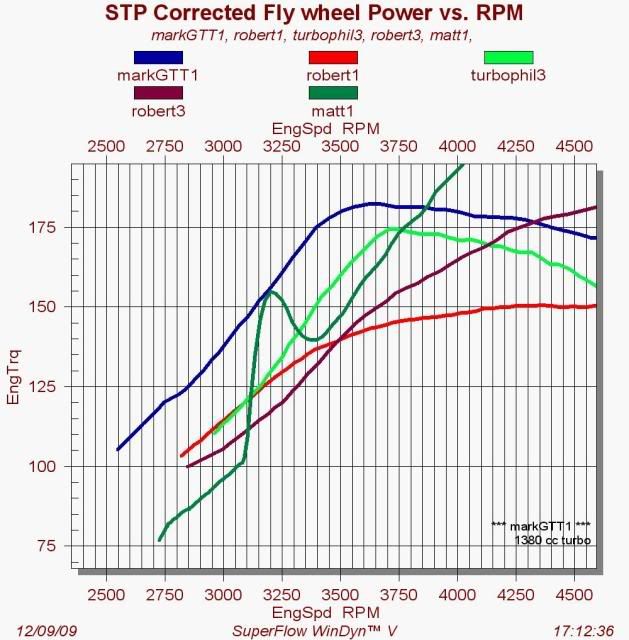

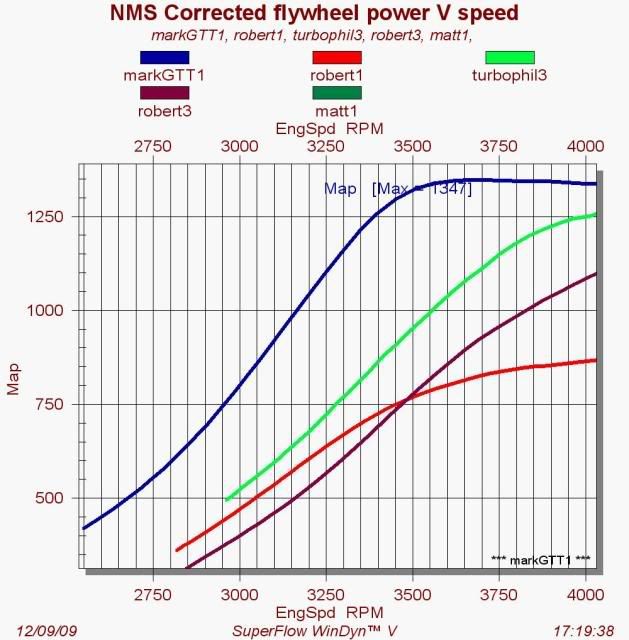

these are the torque graphs from the rr day ,all 1300cc ish apart from marks which i think is 1380 . i v focused on the 3100 rpm area so you can see the general trends ,and included the boost graph for that rpm area too .. matts car had no boost measurement ,and also had nitrous, this is what makes the bump in his curve where hes tested the gas briefly.hope this helps .
