| Home > Help Needed / General Tech Chat > Megasquirt wiring diagram... | |||||||
  4436 Posts Member #: 164 The Stig.. Newport Pagnell |
22nd Jan, 2007 at 08:32:59pm
Please could somebody post up a MS wiring diagram??
On 21st Jan, 2011 fastcarl said:
therefore acheiving two things , a sore knob and a beer bellyl |
||||||
 8604 Posts Member #: 573 Formerly Axel Podland |
22nd Jan, 2007 at 08:35:03pm

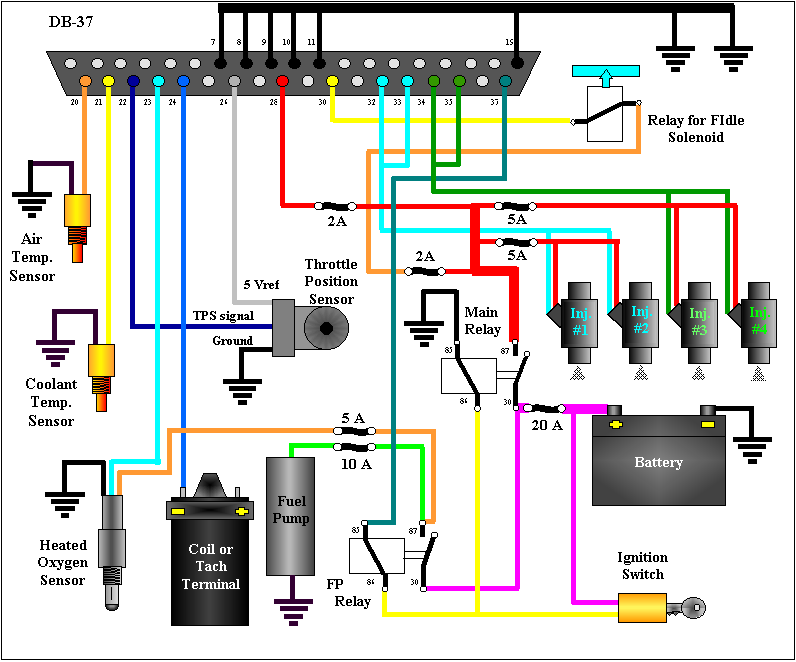

This what you're looking for? Saul Bellow - "A great deal of intelligence can be invested in ignorance when the need for illusion is deep."
|
||||||
|
4436 Posts Member #: 164 The Stig.. Newport Pagnell |
22nd Jan, 2007 at 08:39:24pm
Yes great but even better if one exists without the injecters...
On 21st Jan, 2011 fastcarl said:
therefore acheiving two things , a sore knob and a beer bellyl |
||||||
|
8604 Posts Member #: 573 Formerly Axel Podland |
22nd Jan, 2007 at 08:45:44pm
I'm not sure one exists but this may help, if its for the MS and EDIS setup you are selling. Edited by Paul S on 22nd Jan, 2007. Saul Bellow - "A great deal of intelligence can be invested in ignorance when the need for illusion is deep."
|
||||||
|
4436 Posts Member #: 164 The Stig.. Newport Pagnell |
22nd Jan, 2007 at 08:55:13pm
Yes trying to answer questions for someone else I can not answer.
On 21st Jan, 2011 fastcarl said:
therefore acheiving two things , a sore knob and a beer bellyl |
||||||
|
8604 Posts Member #: 573 Formerly Axel Podland |
22nd Jan, 2007 at 08:57:46pm
Is the Megasquirt unit setup to use MSnSextra code?
Saul Bellow - "A great deal of intelligence can be invested in ignorance when the need for illusion is deep."
|
||||||
 3329 Posts Member #: 184 Senior Member Melton Mowbray, Pie Country |
22nd Jan, 2007 at 10:08:29pm
Jon,
http://www.twin-turbo.co.uk
|
||||||
|
3329 Posts Member #: 184 Senior Member Melton Mowbray, Pie Country |
22nd Jan, 2007 at 10:18:53pm
OK, I have found it now. Unfortunately it is a dwg file and when I convert it to anything else the detail is lost. I will continue to try. If you can view dwg ( I use voloview or DWGSee pro) then the file is here..
http://www.twin-turbo.co.uk
|
||||||
|
3329 Posts Member #: 184 Senior Member Melton Mowbray, Pie Country |
22nd Jan, 2007 at 10:22:32pm
Arse, looking at that it is an old version. It is correct, but the later version is better.
http://www.twin-turbo.co.uk
|
||||||
 2514 Posts Member #: 1217 I like nice quiet girly Minis Cheltenham, Gloucestershire |
22nd Jan, 2007 at 11:28:09pm
Ben, if you post the DWG I'll convert it to a GIF for you ..... just remind me I said that .... Every day is a school day ...........
On 27th of Sep, 2007 at 12:45pm Jimster said:
why do you you think I got a girlfriend with small hands? |
||||||
|
3596 Posts Member #: 655 Post Whore Northern Ireland |
22nd Jan, 2007 at 11:55:23pm
On 22nd of Jan, 2007 at 08:35pm Axel said:
This what you're looking for? Why are the outputs on the injectors paired up then split again ? Or is it just to simplify the drawing ? 9.85 @ 145mph
|
||||||
 2909 Posts Member #: 83 Post Whore Glasgow, Scotland |
23rd Jan, 2007 at 12:56:41am
On 22nd of Jan, 2007 at 11:55pm stevieturbo said:
On 22nd of Jan, 2007 at 08:35pm Axel said:
This what you're looking for? Why are the outputs on the injectors paired up then split again ? Or is it just to simplify the drawing ? there not paired and split in the way i think your thinking
2 pins on the DB37 are used for each injector channel dueo to the current draw from the injector(s) being greater than the capacity of a single pin on the DB37. there are only 2 injector outputs on the current megasquirt boards. turbo 16v k-series 11.9@118.9 :)
|
||||||
|
3596 Posts Member #: 655 Post Whore Northern Ireland |
23rd Jan, 2007 at 06:19:52pm
SO MS cant do sequential ? 9.85 @ 145mph
|
||||||
|
2514 Posts Member #: 1217 I like nice quiet girly Minis Cheltenham, Gloucestershire |
23rd Jan, 2007 at 08:00:40pm
Not MS1 but MS2 with router board will. Every day is a school day ...........
On 27th of Sep, 2007 at 12:45pm Jimster said:
why do you you think I got a girlfriend with small hands? |
||||||
|
3329 Posts Member #: 184 Senior Member Melton Mowbray, Pie Country |
24th Jan, 2007 at 01:11:23pm
OK Here is the better diagram. It is basically the TT2 wiring diagram, but it covers all the bits you need (obviously we don't use the injection part)
http://www.twin-turbo.co.uk
|
||||||
