Plan A is a mirage package, plan B is a home made manifold, would you gents mind sharing a few pics of your home made manifolds, either rear mounted turbo, or remote, anything is good! Just trying to get a few ideas on the go at the moment.
Thanks
Shane.

benjamin

User Avatar

171 Posts
Member #: 621
Advanced Member

nsw austalia

9th Mar, 2007 at 09:59:45pm

i was going to go mirage manifolds when i started my turbo build but was out of my price range a little so i made my own , basically i held the turbo as close as possible to the block and it fits a T2 without firewall mods

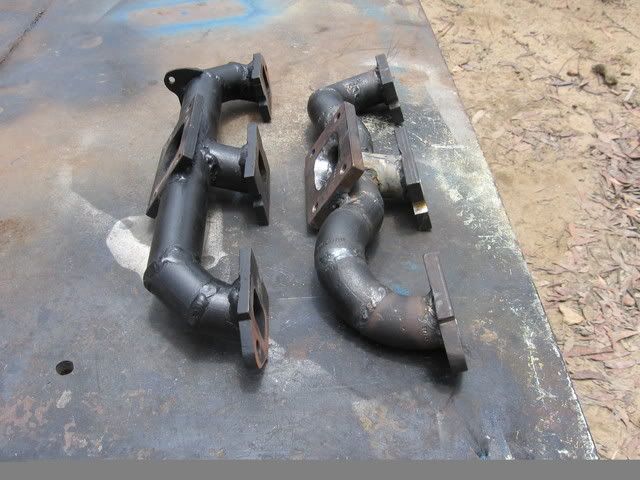

this was my first one on the left and my newest one on the right (both hold turbo in same position)

original was arc welded medium wall 34mm gal pipe and bends were made by cutting wedges out.
new one is medium wall 34mm steam pipe and tig welded and is off to be ceramic coated atm




1152cc turboed mini clubman, most powerful 1.1L a-series?

http://boostmini.justboard.net/

Alex1340

User Avatar

902 Posts
Member #: 111
Post Whore

Loughborough

9th Mar, 2007 at 10:38:49pm

Did you have the flanges made or did you use a standard(ish) manifold and chop it?
Alex

benjamin

User Avatar

171 Posts
Member #: 621
Advanced Member

nsw austalia

9th Mar, 2007 at 11:04:53pm

flanges were cut with hacksaw, drilled and then filed , the new manifold i had the holes milled out

1152cc turboed mini clubman, most powerful 1.1L a-series?

http://boostmini.justboard.net/

RogerM

User Avatar

2514 Posts
Member #: 1217
I like nice quiet girly Minis

Cheltenham, Gloucestershire

9th Mar, 2007 at 11:13:48pm

Looking good for a home brew ..... my last attempt at something similar (Toyota 4AGE turbo in RWD kitcar) looked like a dogs breakfast in comparison!

Every day is a school day ...........

How fast and how expensive ...... the same question...

On 27th of Sep, 2007 at 12:45pm Jimster said:
why do you you think I got a girlfriend with small hands?

shane

User Avatar

2643 Posts
Member #: 1246
Post Whore

Lowestoft, Suffolk.

9th Mar, 2007 at 11:57:09pm

I was planning to use 321 grade stainless, I have been recently installing a few air conditioning units at one of my local metal bashing firms, they have laser cutting facilities, was going to ask them to knock out all the flanges I needed for me, but that kind of went out of the window when at 07.15 am on tues I accidentally put a 30 mm sds masoary bit thru a fire alarm cable, DOH!! Think Illl leave it a week or so before i stick my head in their office to ask the favour!!
Shane.

shane

User Avatar

2643 Posts
Member #: 1246
Post Whore

Lowestoft, Suffolk.

11th Mar, 2007 at 12:34:20pm

Anyone else have pics they dont mind adding??
Thanks
Shane

Paul S

User Avatar

8604 Posts
Member #: 573
Formerly Axel

Podland

11th Mar, 2007 at 02:05:51pm


On 9th of Mar, 2007 at 11:57pm shaneyboy said:
I was planning to use 321 grade stainless,Shane.


I'm thinking along the same lines. I've found a company local to me that can cut the flanges.

Have you got a source of 321 grade stainless bends?

Saul Bellow - "A great deal of intelligence can be invested in ignorance when the need for illusion is deep."
Stephen Hawking - "The greatest enemy of knowledge is not ignorance, it is the illusion of knowledge."
