bulkhead box bananza !
Turbo Mini Forums

Hi,
I am currently around halfway through my mini turbo project and am after some advice...

The car is in the "shell" stage at the moment but i am planning ahead as to what engine i would like. I have decided it has to be a turbo (for obvious reasons !) and due to the limiting factor of the mirage manifolds, i want to fit a bulkhead box .

my questions are as follows...

1. Does fitting a bulkhead box reduce the strength of the bulkhead a lot ?

2. Would fitting a roll cage counter this weakening ?

3. Not knowing exactly what set up i will use, i want to fit a bulkhead box that will fit all possible setups ( t2,t25,t3 - metro manifolds, other manifolds etc.) Which box does everyone use or do you all make your own ??

Thanks
Ryan

Will my project ever be finished !!? hopefully you guys can help !
Its only been like 10 years in the making and I'm only just assembling my engine!

1) Not especially, as long as it is welded in to a good standard. I've certainly never known anyone have a problem.

2) Not really, it does nothing to brace the bulkhead. You are better off fitting solid mounts to use the subframe to brace the bulkhead. You can also bolt the subframe through below the bulkhead box if you wish.

3) Any of the boxes you can buy will do the job. There is a guy on here does them.

Edited by Tom Fenton on 29th Jul, 2007.

hey thanks Tom,

What do you mean when you say "bolt the subframe through below the bulkhead box " ?

do you mean fitting a solid spacer between the subframe and bulkhead and bolting through it ? do you have any pictures of this modification ?

Also, any ideas who it is on here who does the bulkhead boxes ?

and lastly, what thickness of meterial should be used for the boxes, i would assume it should be fairly substancial ?

cheers

Will my project ever be finished !!? hopefully you guys can help !
Its only been like 10 years in the making and I'm only just assembling my engine!

You are in luck, I have found one.

milamber does the box's top work he does as well.

give hime a pm im sure he will sort somthing out.

cheers
josh

My build thread..

http://www.turbominis.co.uk/forums/index.php?p=vt&tid=542985

What do you mean? Limiting factor?

Got some new improved bulkheads available. Just pm Arge

Cheers Josh...wheres my instructions! :)

hopfuly if the weather stays good it will be done soon!
i need to get me dad to weld it in as im not very good at mig welding yet! need more practice. lol

My build thread..

http://www.turbominis.co.uk/forums/index.php?p=vt&tid=542985

No probs, just take some pictures m8

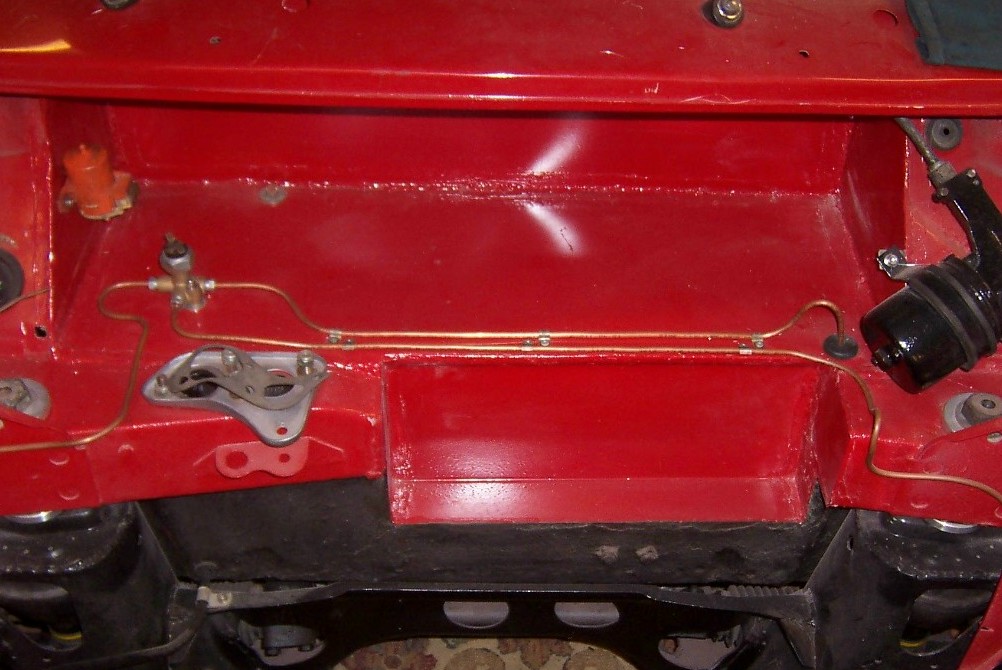

heres mine, made it myself 1.5mm thick sheet seem welded.

Edited by Monster22 on 31st Jul, 2007.

I'm worrying about that corner on the right sticking out buddy. I've a fair suspiscion that the air intake pipe won't get past that.

Heres Mine Also made it myself

1/4 Mile 14.3secs 96Mph Terminal 10psi of boost.


Fibreglass Parts? - http://www.tdkracing.co.uk/
Split Rims? - http://www.force-racing.co.uk/

Thanks Tom, will bolt the subframe in tonight and hang the engine in place :( thought I'd got it right, never mind. Have to get the electric glue gun out Thanks for the spot.
M

Just back to your questions....I'm seam welding as much of the shell as possible so I don't need a rollcage. Insurance was a big consideration in my thoughts.

Good job 1573wx :)

If your turboing it.....I think a roll cage is the least of your probs with insurance.

on this subject & slightly off it, would you guys think it a problem to have a turbo box & a weber box (or should i say upsidedown battery box) structually speaking, my welding is pretty good on the mig & i nkow jimters & 1573wx's minis have the whole thing cut out in the top firewall area, anyway you lads of experiance know what i mean, cheers chaps, good to see some bulkhead box pis so i know where to pop it in, got a better idea now! ths enquiey is cause i'm welding my dads van bk 2gether!!!!

SKYLINES ARE LIKE CLITS, EVERY FLANGE SEEMS TO HAVE ONE: see this sticker on my silvia

the Search-section on this forum is blummin superb & simple to use, unlike some other forums, without the search-section & the help of this bunch of chaps on here i'll never be able to !!!Start the day with a 998cc turbo!!! :) i'm getting closer though!

Tom Fenton says: I have it all, make me an offer

Like this?
regards
Dave

Attachments:

160.52kb

i have both in mine mate - meant i could change the heat shield without undoing manifold nuts

fooookin heck! everyone on here has very big weber box's lol!

thats ok then if its stuctually ok to do!

my dads minivan will e running a weber & i gotta weld the weber box/upsidedown battery box in it & i think he may go the turbo route eventually so gonna put the two box's in, saves greaf & its space thats needed anyhow! not sure where to place the weber box yet but looking at these pics i may get him to purchase another batterybox & weld two 2gether for a double, like danboys for instance! looks cracking, if anyone has a pic of a lill weber box (battery-box size) that would be ace!

wheres that bloody grider again

SKYLINES ARE LIKE CLITS, EVERY FLANGE SEEMS TO HAVE ONE: see this sticker on my silvia

the Search-section on this forum is blummin superb & simple to use, unlike some other forums, without the search-section & the help of this bunch of chaps on here i'll never be able to !!!Start the day with a 998cc turbo!!! :) i'm getting closer though!

Tom Fenton says: I have it all, make me an offer

I wouldnt worry about it to be honest, loads of people have bulkhead and turbo boxes and have never moaned about about it. Not to my knowledge anyways.

1/4 Mile 14.3secs 96Mph Terminal 10psi of boost.


Fibreglass Parts? - http://www.tdkracing.co.uk/
Split Rims? - http://www.force-racing.co.uk/

CMF, The reson i did a large airbox was to be able to fit a cold airbox system when running NatAsp, it's also very useful to fit other ancilliaries out of the way. ie fuel filter, washer bottle etc. etc.
Worth doing in my opinion.
Regards
Dave

Deffo, im gunna mount my wiper motor up inside out of the way!

1/4 Mile 14.3secs 96Mph Terminal 10psi of boost.


Fibreglass Parts? - http://www.tdkracing.co.uk/
Split Rims? - http://www.force-racing.co.uk/
