GT1752 surge lines and efficiency plots: comments please
Turbo Mini Forums

Hi .

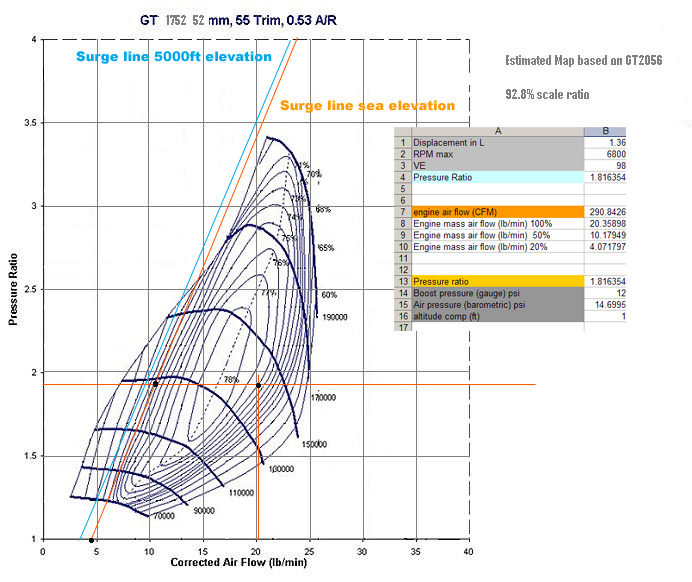

I whipped up a simple excel sheet for calculating Pressure ratio and mass air flow.

using Pauls estimated map for the 1752 i got this:



seems pretty safe if not ideal.
comments welcome

Attachments:

128.55kb

Edited by Sir Yun on 19th Apr, 2008.

That sir, is not rust, it is the progressive mass reduction system

http://aseriesmodifications.wordpress.com/

Looks fine, although i think your VE is optimistic.

Saul Bellow - "A great deal of intelligence can be invested in ignorance when the need for illusion is deep."
Stephen Hawking - "The greatest enemy of knowledge is not ignorance, it is the illusion of knowledge."

it will be a 16 K 1100..

NA it is around that number . bit of a guess anyway

That sir, is not rust, it is the progressive mass reduction system

http://aseriesmodifications.wordpress.com/

At boost, it is highly likely that the pressure in the exhaust manifold will be higher than boost that will reduce your VE.

I would use 90% VE.

It is still a good turbo selection.

Saul Bellow - "A great deal of intelligence can be invested in ignorance when the need for illusion is deep."
Stephen Hawking - "The greatest enemy of knowledge is not ignorance, it is the illusion of knowledge."

okiedokie..

still into to future i fear but gathering parts.

i have no clue how much power this will give but i fear it will be more than needed..

That sir, is not rust, it is the progressive mass reduction system

http://aseriesmodifications.wordpress.com/

169hp

Saul Bellow - "A great deal of intelligence can be invested in ignorance when the need for illusion is deep."
Stephen Hawking - "The greatest enemy of knowledge is not ignorance, it is the illusion of knowledge."

hhmm wonder how that cog box is going to like that (i am pretty soft footed luckily)
