Page:
Home > For Sale > HI BOOST HEAD

BENROSS

User Avatar

9812 Posts
Member #: 332
Resident Cylinder Head Modifier

Mitsi Evo 7, 911, Cossie. & all the chavs ...... won no problem

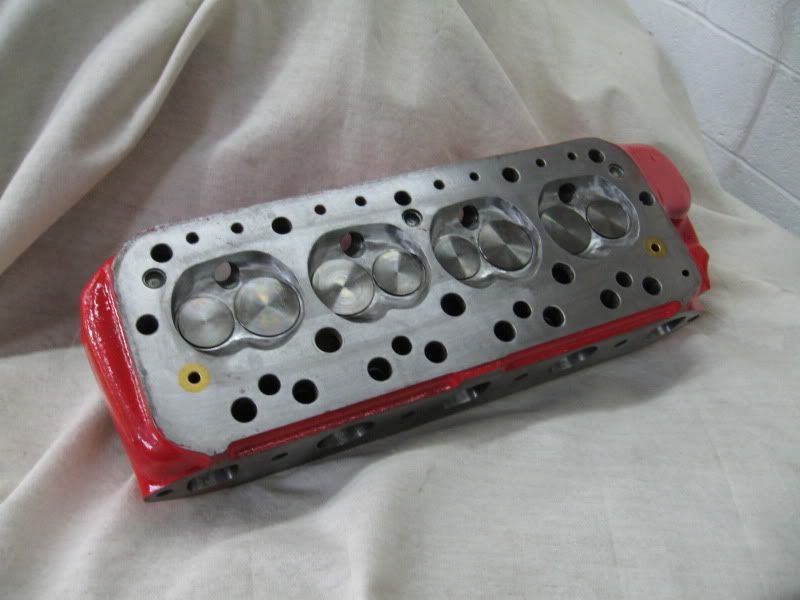

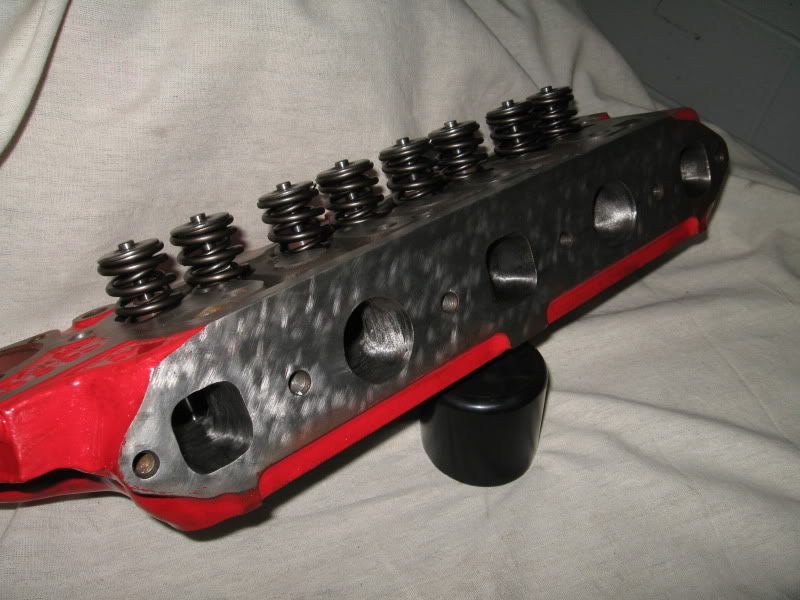

this is a fast road or full race Hi Boost head which are proven with power outputs in excess over 180 BHP ++++ depending on your cam choice and the CC.s of the engine and Boost you desire
these heads flow well and make the power

The head sports unleaded inserts
Stainless 214N plasma nitrided race valves 35.7mm inlets
Stainless 214N plasma nitrided race exhausts 29.5mm
stellite unleaded exaust seats
Manganese bullet guidestop quality guide seals

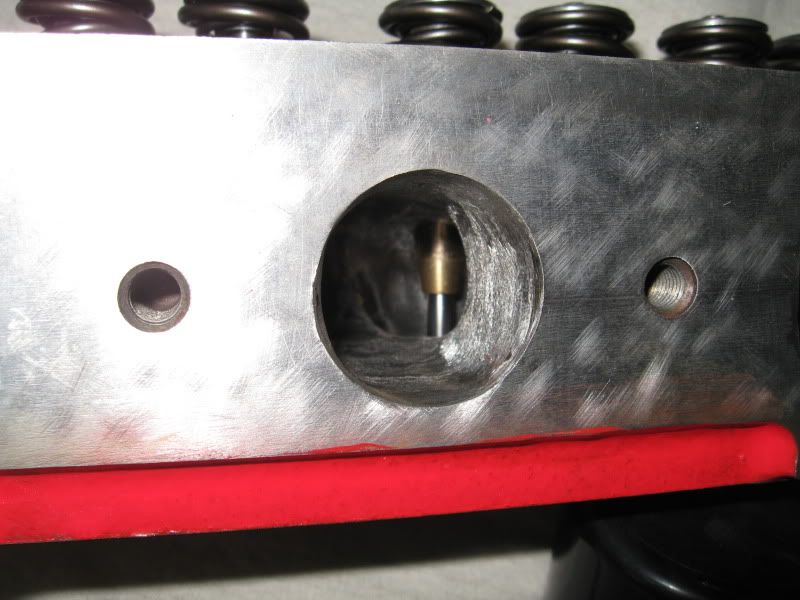

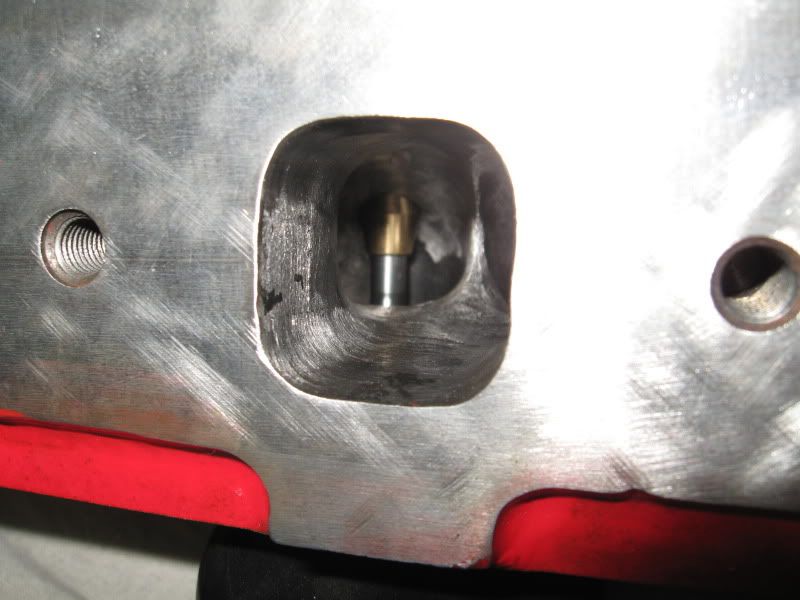

Fully ported for max port velocity
Combustion chamber 28cc on this one instead of 21.4 cc allowing boost to 18psi+
Maximum squish & swirl latest development
180-pound double race springs
Fully assembled painted ready to go exchange

PM me for price

Most speed shop GO! Faster ...... heads are in excess of £ 700 +++++








Edited by BENROSS on 15th Oct, 2009.






jamz

User Avatar

1342 Posts
Member #: 2292
Tool

Herne Bay, kent

sooooo dreamy ahaha *tongue**wink*

On 27th Apr, 2010 Rick.SPI said:


cant beat a good blowout.


Richie

User Avatar

3184 Posts
Member #: 628
Post Whore

a LIL fishing village on the coast - Newcastle Upon Tyne

fantastic work from this head builder A* builds fantastic ! i have one myself worth every penny !



______________________________________________________
TRADER HALL OF FAME
BENROSS...MINIMARK..WOLFIE (comic genius).....CARL....MARTPAUL.......AXEL
______________________________________________________
TRADERS OF SHAME
1 user....pm me 4 details

LEGENDS
MikeRace, Mini13

On 17th Aug, 2009 Jay#2 said:
I doubt I'll be dipping into the 13's like you did though!






Paul R

User Avatar

4018 Posts
Member #: 1757
Back to Fucking Tool status

Swindon

that just made my pants wet... i cant wait to get one for myself :)

Drives
-Ford S-max Mk2 Ecoboost
-Rover 100 VVC #2 - track project

Searching is all you need on TurboMinis


Nic

User Avatar

9326 Posts
Member #: 59
First mini turbo to get in the 12's & site perv

Herefordshire

I feel sorry for these cylinder heads, i went to the dentist yesterday and was attacked with a minature die grinder


theoneeyedlizard

User Avatar

7265 Posts
Member #: 1268
The Boom Boom speaker Police!

Essex

I can also confirm the quality of Steves work. I've got one of these on my car as well.

In the 13's at last!.. Just


johnnysti

301 Posts
Member #: 2480
Senior Member

Swindon

Is this only for turbos or would it make a differance on my supercharger? Ive got a med head on at the mo. Not sure of the spec. G did post it up in the newbie section but wouldnt know what any of it would mean anyway! Lol

feature=mhum


BENROSS

User Avatar

9812 Posts
Member #: 332
Resident Cylinder Head Modifier

Mitsi Evo 7, 911, Cossie. & all the chavs ...... won no problem

post the spec up please






Paul R

User Avatar

4018 Posts
Member #: 1757
Back to Fucking Tool status

Swindon

Block

Bore 73.5
C.M.S New
Face 020
O/way New
C/brgs New
Acid dip Yes
11 stud Yes

Crank

Grind Yes
Polish Yes
Ni-temp Yes
Blade yes
X/drill Yes
Wedge Yes

Rods

Bolts New
Nuts New
Lighten Yes
Polish Yes

Pistons

Type Omega
Dish 11cc

Cam

Type 285
Followers New
O/pump New

Timing

Duplex New

BRGS

Mains Comp
Ends Comp
T/W Comp

Clutch

F/wheel Steel
Plate Turbo
B/plate Steel
Balance Full
Cover Orange
Gear type Inertia
R/brg New
Bolt strap New

Head

Rally head
Valves 35.7-30.0
Guides Bronze
L/free Yes
Springs New
Port Comp
11 stud Yes
Chamber Comp

Rockers

1:5

Gearbox

Type Rod
O/put Pot
Gears s/c c/r
Drops R-BRG
Diff X-pin
BRGS New
c.p.u New
c.w.p 3.44

Shims

Primary New
Idler New
BRGS New
S/brg New

idk if this helps

Drives
-Ford S-max Mk2 Ecoboost
-Rover 100 VVC #2 - track project

Searching is all you need on TurboMinis


johnnysti

301 Posts
Member #: 2480
Senior Member

Swindon

Thanks snakeii. Im using my phone to get on the net at work so couldnt post it up!

feature=mhum


BENROSS

User Avatar

9812 Posts
Member #: 332
Resident Cylinder Head Modifier

Mitsi Evo 7, 911, Cossie. & all the chavs ...... won no problem

snakie sounds a very good engine
leave it at that buddy






Paul R

User Avatar

4018 Posts
Member #: 1757
Back to Fucking Tool status

Swindon

not my engine lol :), mines probably going to be 1.3 roler rockers avonbar ps2 cam or a 266, your head and some other hidden and a few custom bits :)

Drives
-Ford S-max Mk2 Ecoboost
-Rover 100 VVC #2 - track project

Searching is all you need on TurboMinis


johnnysti

301 Posts
Member #: 2480
Senior Member

Swindon

Oh well. Thanks for your honesty Benross. Could have talked me into it!!!! lol

feature=mhum


Paul R

User Avatar

4018 Posts
Member #: 1757
Back to Fucking Tool status

Swindon

you didnt mention that you were going to rais your boost though did you, that might have helped a bit more *tongue*

Drives
-Ford S-max Mk2 Ecoboost
-Rover 100 VVC #2 - track project

Searching is all you need on TurboMinis


johnnysti

301 Posts
Member #: 2480
Senior Member

Swindon

Well its not that, its just that i wanted the best possible setup really. Some people dont have good things to say about decompression plates which im having to run but i still havent had any problems with it as yet

feature=mhum


.vdm.

5 Posts
Member #: 3205
Junior Member

kidderminster

hi, just woundering how much the head is.

thanks dave


.vdm.

5 Posts
Member #: 3205
Junior Member

kidderminster

sorry put the same thing twice, still getting use to the site.

Edited by .vdm. on 30th Jul, 2008.


Richie

User Avatar

3184 Posts
Member #: 628
Post Whore

a LIL fishing village on the coast - Newcastle Upon Tyne

.VDM give BENROSS a PM this thread is a wee bit old now, BENROSS can build em to spec for you.

once again top notch work i might add



______________________________________________________
TRADER HALL OF FAME
BENROSS...MINIMARK..WOLFIE (comic genius).....CARL....MARTPAUL.......AXEL
______________________________________________________
TRADERS OF SHAME
1 user....pm me 4 details

LEGENDS
MikeRace, Mini13

On 17th Aug, 2009 Jay#2 said:
I doubt I'll be dipping into the 13's like you did though!






GaryOS

User Avatar

1424 Posts
Member #: 2810
Formally spanner181187

Dublin, Ireland

My 12GG295 is being shipped from Benross HQ tomorrow. Can't wait!!!

On 12th Nov, 2009 Paul S said:

I think Gary OS has taken over my role as the forum smart arse *happy*


On 30th Apr, 2010 Rod S said:
Gary's description is best
