Home > For Sale > High Torque Starters

Ben H

User Avatar

3329 Posts
Member #: 184
Senior Member

Melton Mowbray, Pie Country

These have been a while coming but here they are. There is a previous thread about them that may be worth a read:
http://www.turbominis.co.uk/forums/index.p...tid=212532&fr=0

THESE STARTER MOTORS HAVE A 9 TOOTH PINION, ONLY SUITABLE TO REPLACE ORIGINAL STARTERS WITH A 9 TOOTH PINION AND 107 TOOTH RING GEAR. If you have a verto with 126 tooth ring gear then they will NOT fit.

The base unit is a Nippon -Denso starter fitted to 1980's toyotas.
They are all fully reconditioned by various sources and my chum Eric has converted them to fit the mini engine.

They are geared , pre-engaged type, the solenoid directly acting on the output pinion with the small 1kw motor sitting adjacent & linked by a 4:1 gear train. This results in a light (4.5 kg), powerful unit that uses up to half the current of the original starters. All the bearings, gears, brushes, contacts etc are new. They operate on the opposite side of the ring gear to the inertia starter , so if yours is a bit mashed it doesn't really matter. They don't need the ring gear turning round as the pinion rotates slowly as it is engaging, negating the need for a lead in chamfer.

They are a simple fit, although as the motor obscures one of the mounting holes, one fixing is now a 5/16"Unf stud and nut instead of the usual 3/8" Unc bolt. This might need one of the holes opening out sligthly with a drill depending upon BL's tolerancing.

Connecting them up is easy. If you have an inertia starter the seperate solenoid is not required and can be removed, then solenoud signal is then connected to the solenoid on the starter. If you have a 9 tooth pre-engaged one it is a direct swap.

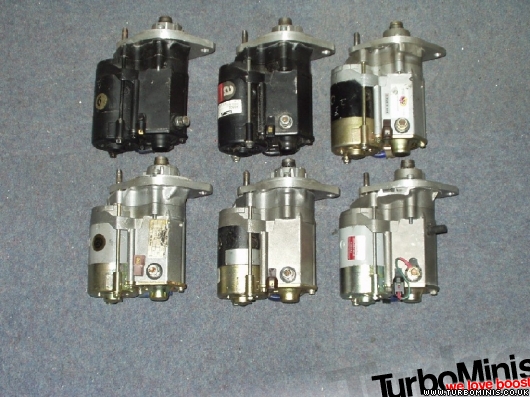

The price for these is £80 each with £10 p&p and can be delivered to Avon Park if required. I have 6 for sale, all slightly different, mainly in looks, and first come gets the bigger choice.The top left one has the main power terminal rotated round 45 degrees which might help on really tight installations.

http://www.twin-turbo.co.uk
http://www.hillclimbandsprint.co.uk/default.asp

A man without a project is like a like a woman without a shopping list.


graemec

940 Posts
Member #: 1424
Post Whore

Carnforth, Lancs

Hi Ben,
I'll take one please - where do you want payment etc? (It's for a friend so I would assume he'll want to pay by cheque.)

I'll go for bottom centre!

Graeme.


minimole23

4309 Posts
Member #: 1321
Post Whore

Wiltshire

bugger, bugger, bugger! I wanted one of these but my new flywheel has too many teeth.

Edited by minimole23 on 18th Jun, 2008.

On 7th Oct, 2010 5haneJ said:
yeah I gave it all a good prodding


Ian_W

User Avatar

263 Posts
Member #: 40
Really Very Very Advanced 'Member'

Stratford upon Avon

I'll take one please. this will solve many of my problems at the same time!

could i go for the top left one with the terminal around 45deg please if its not already taken.

PM sent :)


matty

User Avatar

8297 Posts
Member #: 408
Turbo Love Palace Fool

Aylesbury




On 18th Jun, 2008 Ian_W said:
I'll take one please. this will solve many of my problems at the same time!

could i go for the top left one with the terminal around 45deg please if its not already taken.

PM sent :)


Ian, haven't you got an intertia type starter? And aren't these for pre engaged type....?

https://www.facebook.com/pages/Fusion-Fabri..._homepage_panel

www.fusionfabs.co.uk



1/4mile in 13.2sec @ 111 terminal on 15psi


joeybaby83

User Avatar

6274 Posts
Member #: 509
Post Whore

Isle of Man

ill take one please ben

"Turbo's make torque, and torque makes fun"

"did you know you can toast potato waffles?"



Ian_W

User Avatar

263 Posts
Member #: 40
Really Very Very Advanced 'Member'

Stratford upon Avon




On 18th Jun, 2008 matty said:


Ian, haven't you got an intertia type starter? And aren't these for pre engaged type....?



On 18th Jun, 2008 Ben H said:
THESE STARTER MOTORS HAVE A 9 TOOTH PINION, ONLY SUITABLE TO REPLACE ORIGINAL STARTERS WITH A 9 TOOTH PINION AND 107 TOOTH RING GEAR. If you have a verto with 126 tooth ring gear then they will NOT fit.


i have the pre-verto 107 tooth type *wink*


Anton

User Avatar

1050 Posts
Member #: 764
Post Whore

Staffordshire

very tempted.. will know for sure tomorrow.. need to see how well my starter copes with a 11.5:1 compression.. oook


matty

User Avatar

8297 Posts
Member #: 408
Turbo Love Palace Fool

Aylesbury




On 18th Jun, 2008 Ian_W said:



On 18th Jun, 2008 matty said:


Ian, haven't you got an intertia type starter? And aren't these for pre engaged type....?



On 18th Jun, 2008 Ben H said:
THESE STARTER MOTORS HAVE A 9 TOOTH PINION, ONLY SUITABLE TO REPLACE ORIGINAL STARTERS WITH A 9 TOOTH PINION AND 107 TOOTH RING GEAR. If you have a verto with 126 tooth ring gear then they will NOT fit.


i have the pre-verto 107 tooth type *wink*


Ah yeah, I remember now! Lol

Ben are these going to be regularly available, last of my money is going on RR, but could do with one in a few months?

https://www.facebook.com/pages/Fusion-Fabri..._homepage_panel

www.fusionfabs.co.uk



1/4mile in 13.2sec @ 111 terminal on 15psi


Rob H

4314 Posts
Member #: 700
Formerly British Open Classic

The West Country

I'll have one if there are any left, hopefully I'll be at Avon, but I'm not sure what's going on with work.

Isambard Kingdom Brunel said:
Nothing is impossible if you are an Engineer


cossierick

User Avatar

3074 Posts
Member #: 1348
Post Whore

wakefield West Yorks

Me aswell plz.

Thanks Rick

Ps bottom right if poss

Edited by cossierick on 18th Jun, 2008.


Ben H

User Avatar

3329 Posts
Member #: 184
Senior Member

Melton Mowbray, Pie Country


On 18th Jun, 2008 matty said:

Ben are these going to be regularly available, last of my money is going on RR, but could do with one in a few months?


If these go well then there may be some more in the future. Let me know when you fancy one I and will see what can be sorted. It all depends on getting the starter motors in the first place.

http://www.twin-turbo.co.uk
http://www.hillclimbandsprint.co.uk/default.asp

A man without a project is like a like a woman without a shopping list.


Nic

User Avatar

9321 Posts
Member #: 59
First mini turbo to get in the 12's & site perv

Herefordshire

Ass bandits!!

Am i too late, ill deffo have one if theres one available


joeybaby83

User Avatar

6274 Posts
Member #: 509
Post Whore

Isle of Man

Arrived today, cheers Ben/Eric

"Turbo's make torque, and torque makes fun"

"did you know you can toast potato waffles?"



mike_jenkins

User Avatar

40 Posts
Member #: 1128
Member

Blackwood, South Wales

Ben,

As discussed at Harewood, I'd be grateful for one of these if you've got any left.

What events are you doing in the next few months? If we are at one together it would save on the hassle of postage.

Mike J


Ben H

User Avatar

3329 Posts
Member #: 184
Senior Member

Melton Mowbray, Pie Country

Hi Mike,

Eric should be able to sort you one out. There is one made for me that you can have and Eric will make me another when a starter turns up ( I won't need one for a while yet) Eric is at MIRA this weekend and then we will be at gurston, cadwell and then curborough.

Ben

http://www.twin-turbo.co.uk
http://www.hillclimbandsprint.co.uk/default.asp

A man without a project is like a like a woman without a shopping list.


apbellamy

User Avatar

16540 Posts
Member #: 4241
King Gaycharger, butt plug dealer, Sheldon Cooper and a BAC but generally a niceish fella if you dont mind a northerner

Rotherham, South Yorkshire

Could another batch of these be made? Long shot I know. I'd be interested in one. happy to find my own starter to use for the conversion.

On 11th Feb, 2015 robert said:
i tried putting soap on it , and heating it to brown , then slathered my new lube on it

*hehe!*


wil_h

User Avatar

9258 Posts
Member #: 123
Post Whore

Betwix Harrogate and York

If you can find your own starter then Eric will convert it for you, I'll ask him for a price. Of course, this would not come with the normal guarantees.

Fastest 998 mini in the world? 13.05 1/4 mile 106mph

www.twin-turbo.co.uk

On 2nd Jan, 2013 fastcarl said:

the design shows a distinct lack of imagination,
talk about starting off with a clean sheet of paper, then not bothering to fucking draw on it,lol

On 20th Apr, 2012 Paul S said:
I'm mainly concerned about swirl in the runners caused by the tangential entry.


apbellamy

User Avatar

16540 Posts
Member #: 4241
King Gaycharger, butt plug dealer, Sheldon Cooper and a BAC but generally a niceish fella if you dont mind a northerner

Rotherham, South Yorkshire

my starter, my risk...

What car's do they come of? You say Toyota above, but do you know which models? Thanks

On 11th Feb, 2015 robert said:
i tried putting soap on it , and heating it to brown , then slathered my new lube on it

*hehe!*


wil_h

User Avatar

9258 Posts
Member #: 123
Post Whore

Betwix Harrogate and York

Err no. I'll ask.

Fastest 998 mini in the world? 13.05 1/4 mile 106mph

www.twin-turbo.co.uk

On 2nd Jan, 2013 fastcarl said:

the design shows a distinct lack of imagination,
talk about starting off with a clean sheet of paper, then not bothering to fucking draw on it,lol

On 20th Apr, 2012 Paul S said:
I'm mainly concerned about swirl in the runners caused by the tangential entry.


apbellamy

User Avatar

16540 Posts
Member #: 4241
King Gaycharger, butt plug dealer, Sheldon Cooper and a BAC but generally a niceish fella if you dont mind a northerner

Rotherham, South Yorkshire

Found a couple on ebay that look right, but I'd rather get the right one...

Thanks

On 11th Feb, 2015 robert said:
i tried putting soap on it , and heating it to brown , then slathered my new lube on it

*hehe!*


MikeRace

User Avatar

6549 Posts
Member #: 1149
#1 Basshunter Fan

Force Racing ICT Dept Manager Miglia Turbo Am frum Yokshyer tha noes!

If these kick up again put me down for one.

Mike

1/4 Mile 14.3secs 96Mph Terminal 10psi of boost.


Fibreglass Parts? - http://www.tdkracing.co.uk/
Split Rims? - http://www.force-racing.co.uk/


Ben H

User Avatar

3329 Posts
Member #: 184
Senior Member

Melton Mowbray, Pie Country

There are none about at the moment. there is a possibility of supplying your own starter for conversion, but it is difficult to get the correct one, i.e handed correctly.

http://www.twin-turbo.co.uk
http://www.hillclimbandsprint.co.uk/default.asp

A man without a project is like a like a woman without a shopping list.


MikeRace

User Avatar

6549 Posts
Member #: 1149
#1 Basshunter Fan

Force Racing ICT Dept Manager Miglia Turbo Am frum Yokshyer tha noes!

I have one if he can do one could you get me price.

1/4 Mile 14.3secs 96Mph Terminal 10psi of boost.


Fibreglass Parts? - http://www.tdkracing.co.uk/
Split Rims? - http://www.force-racing.co.uk/


Ben H

User Avatar

3329 Posts
Member #: 184
Senior Member

Melton Mowbray, Pie Country

If you have a picture of it i may be able to determine if it can be made to fit a mini.

http://www.twin-turbo.co.uk
http://www.hillclimbandsprint.co.uk/default.asp

A man without a project is like a like a woman without a shopping list.
