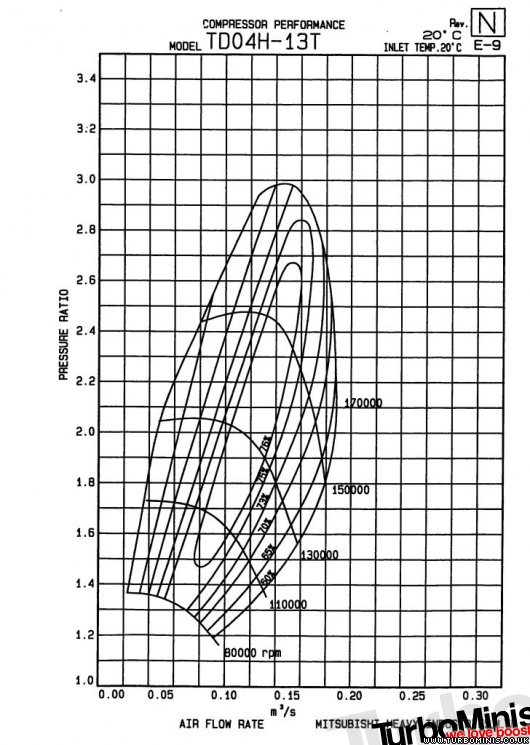

Well from my limited compressor map reading ablities it looks like it could work quite well. Dunno if you would get more than 20 psi out of it but thats enough for me. Comments welcome



EDIT : No idea why the pic is so small ? Any idea how to make it visable.
EDIT 2 : Sorted it linked the tumbnail pic instead of the proper one.

Edited by pinkyandnobrain on 21st Jul, 2009.

"So wat we gonna do tonight Brain?"
"Same thing we do evernight Pinky!"
"Try to take over the world!"

Joe C

User Avatar

12307 Posts
Member #: 565
Carlos Fandango

Burnham-on-Crouch, Essex

21st Jul, 2009 at 04:44:53pm

looks a bit small to me....

thats better lol

Edited by Joe C on 21st Jul, 2009.

On 28th Aug, 2011 Kean said:
At the risk of being sigged...

Joe, do you have a photo of your tool?



http://www.turbominis.co.uk/forums/index.p...9064&lastpost=1

https://joe1977.imgbb.com/



turbodave16v
Forum Mod

10980 Posts
Member #: 17
***16***

SouthPark, Colorado

21st Jul, 2009 at 05:30:30pm

Yes, interesting isn't it.

On 17th Nov, 2014 Tom Fenton said:
Sorry to say My Herpes are no better


Ready to feel Ancient ??? This is 26 years old as of 2022 https://youtu.be/YQQokcoOzeY



joeybaby83

User Avatar

6274 Posts
Member #: 509
Post Whore

Isle of Man

21st Jul, 2009 at 05:52:49pm

i have couple of these knocking about too, a 13t, a 15t and a 16t off various volvo T5's, shame theyre all shagged!

"Turbo's make torque, and torque makes fun"

"did you know you can toast potato waffles?"



James_H

User Avatar

3692 Posts
Member #: 1833
Formally mini_majic

Auckland, New Zealand

21st Jul, 2009 at 06:01:22pm

Around 73% efficient at 25psi and 7000rpm...

Thats quite close to the top line though. Although thats resonably high reving.

fab

User Avatar

1497 Posts
Member #: 100
Parisien Turbo Expert

Paris\' suburb

21st Jul, 2009 at 07:40:37pm

be carefull, this the 56mm sub 13t compressor map, not the small 52mm 13t volvo2.0t g /bmw 525diesel one.
