green band master cylinder, which pipe where?
Turbo Mini Forums

a guy i know is having trouble with his master cylinder pipe work, having never seen one i cannot help but he needs to know which pipe goes where

its a 1990 servo brakes and green band master cylinder all stock including the displacer

looking from the front the displacer ports are

bottom left=front
bottom right = rear
top left =?
top right =?

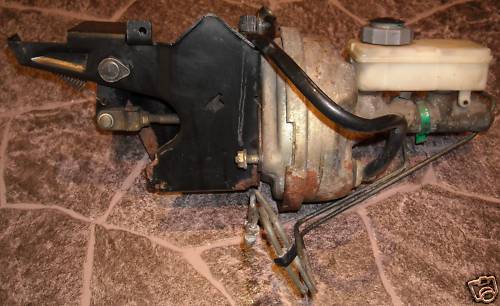

and on the servo there is
closest to the bulkhead (right in photo)=?
closest to the grill (left in photo)=?



(that should work :))

cheers

Edited by Brett on 11th Nov, 2009.

Yes i moved to the darkside

Instagram @jdm_brett

no one? :(

Yes i moved to the darkside

Instagram @jdm_brett

IIRC its top left to front on master, top right to rear on master, bottom left to front brakes, bottom right to rear brakes

thanks alot

Yes i moved to the darkside

Instagram @jdm_brett

I have the diagram for a yellow band..... Is this the same but mounted horizontally ???

ie, is it the two different bore sizes where the connections actually matter, small bore at the "top" and large bore "underneath" ???

Schrödinger's cat - so which one am I ???

you know what Rod i think you are correct, it would be impossible to assemble it other wise, which means the port closest to the bulkhead should connect to the front circuit?

Yes i moved to the darkside

Instagram @jdm_brett

i think this point the same way too, i make out that the port closest to the bulkhead feeds the top left ( front circuit)

Attachments:

30.79kb

Yes i moved to the darkside

Instagram @jdm_brett

On the actual cylinder (yellow band at least) the two ports are different threads, one M10 and the other M12....

Totally bizzare as everything else is imperial.....
