940 Posts Member #: 1424 Post Whore Carnforth, Lancs |
27th Nov, 2009 at 05:46:02pm
I'm looking for a Janspeed manifold that I believe was made for the Metro CHallenge series in the 80's. It is designed so that it can be used with either a Weber 45 or twin HIF4 SUs.
|
||||||
 16540 Posts Member #: 4241 King Gaycharger, butt plug dealer, Sheldon Cooper and a BAC but generally a niceish fella if you dont mind a northerner Rotherham, South Yorkshire |
27th Nov, 2009 at 05:57:33pm
good luck On 11th Feb, 2015 robert said:
i tried putting soap on it , and heating it to brown , then slathered my new lube on it
|
||||||
|
940 Posts Member #: 1424 Post Whore Carnforth, Lancs |
27th Nov, 2009 at 06:06:03pm
Thanks! I know of 3 people with them, but they won't sell. |
||||||
|
69 Posts Member #: 2974 Advanced Member |
26th Dec, 2009 at 02:49:27pm
Hi , thats a rare thing you are after Edited by JC T ONE on 23rd Feb, 2010. |
||||||
 509 Posts Member #: 1027 Post Whore Germini, black forrest |
26th Dec, 2009 at 09:55:45pm
I've scanned a 80's JanSpeed cataloque; it's in there too: http://www.speedshare.org/download.php?id=542777A511 [X] nail here for new monitor |
||||||
 6274 Posts Member #: 509 Post Whore Isle of Man |
27th Dec, 2009 at 01:40:41am
didnt vizard jizz his pants over these? "Turbo's make torque, and torque makes fun"
|
||||||
|
509 Posts Member #: 1027 Post Whore Germini, black forrest |
27th Dec, 2009 at 02:08:25am
Vizard wrote a few lines about that manifold, yes. Sounded very positive. I quote from 'Tuning the A-Series engine':
"Here is a manifold which to the uninitiated observer, looks like the dreaded swan-necked item. However, it would be a great mistake to confuse this with the highly inefficient swan-necked manifold shown a few pages earlier. This particular item from Janspeed engineering has proven to be a highly effcient intake manifold, designed specificcally for use on the Metro. It is very unusual in that it can mount both a single side draft Weber [...] or a pair of 1 1/2" SUs. It's easy to think of this manifold as a Weber intake manifold only. However, when used in its SU form [...] it is amongst the most efficient SU manifold commerically available for the Series 'A' engine. This, together with the remote mounted filter, produces a very quiet and effective induction system for the Metro and possibly for Minis, if few clearance problems exist".
:) - you can inspect the pistons through the carb(s) with that manifold
Edited by Asphalt on 27th Dec, 2009. [X] nail here for new monitor |
||||||
|
69 Posts Member #: 2974 Advanced Member |
28th Dec, 2009 at 05:11:34am
Yes I can only agree to the above. Good luck with your search.
Edited by JC T ONE on 23rd Feb, 2010. |
||||||
 83 Posts Member #: 7115 Advanced Member essex |
5th Jan, 2010 at 07:37:23pm

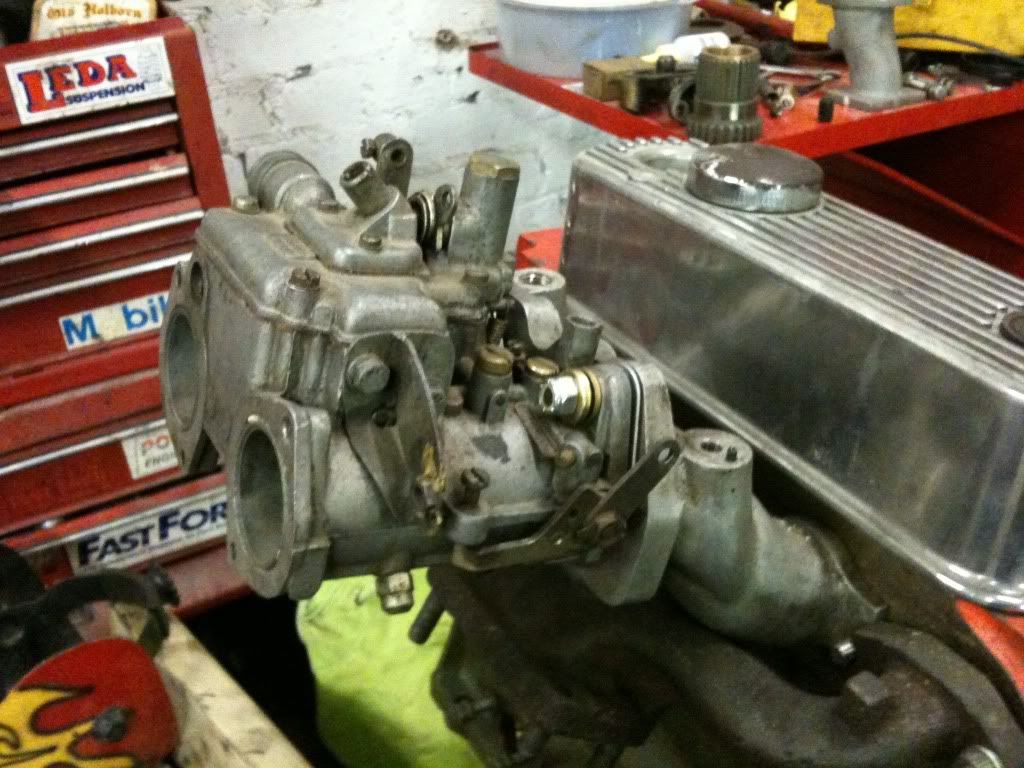

I have one of these in my workshop. It's for sale pm me |
||||||
|
83 Posts Member #: 7115 Advanced Member essex |
6th Jan, 2010 at 05:36:15pm
|
||||||
 4633 Posts Member #: 20 My sister is so fit I won't show anyone her picture Lake District |
9th Jan, 2010 at 02:26:15pm
I'm after one of these if by a miracle somebody has one. |
||||||
|
61 Posts Member #: 7915 Be careful to buy anything from me. You have been warned. westmidlands |
9th Jan, 2010 at 02:48:01pm
On 27th Nov, 2009 graemec said: hi mate you can make them out of a single 45 webber manifold either by using a face plate or weld up and machine drill and tap what you need . i no of lad can make that for you . john
I'm looking for a Janspeed manifold that I believe was made for the Metro CHallenge series in the 80's. It is designed so that it can be used with either a Weber 45 or twin HIF4 SUs. Anyone have one (or know of one?) Looks like this (photo kindly provided by a chap in Japan!):
|
||||||
|
61 Posts Member #: 7915 Be careful to buy anything from me. You have been warned. westmidlands |
9th Jan, 2010 at 02:50:50pm
sorry if you look close to right and lrft of janspeed sticker in the curve bits you can se the weld . its easy coversion john |
||||||
 3756 Posts Member #: 1709 I like granny porn. LONDONSHIRE |
9th Jan, 2010 at 03:02:22pm
On 9th Jan, 2010 Turbo Phil said:
I'm after one of these if by a miracle somebody has one. On 2nd Oct, 2009 Vegard said:
On 1st Oct, 2009 Jimster said:
I bet my first wank came quicker than your first mini turbo These new modern turbos with their quick spool up time, would make the competition harder. On 15th Aug, 2011 robert said:
phew!!! thank you brett for smashing in my back doors .( not something i imagined writing... EVER) |
||||||
|
509 Posts Member #: 1027 Post Whore Germini, black forrest |
9th Jan, 2010 at 05:23:02pm
On 9th Jan, 2010 kal14 said:
hi mate you can make them out of a single 45 webber manifold either by using a face plate or weld up and machine drill and tap what you need . i no of lad can make that for you . john That's not entirely true, the JanSpeed manifold has a large integrated balance tube for the operation of SUs :)
Of course you could bang some SUs with adaptor plates on a Weber manifold and run some tubes across the flanges - but that's not quite the same, is it? :) Cheers, Jan Edited by Asphalt on 9th Jan, 2010. [X] nail here for new monitor |
||||||
|
940 Posts Member #: 1424 Post Whore Carnforth, Lancs |
9th Jan, 2010 at 10:12:26pm
Oi Phil, get your own thread |
||||||
|
4314 Posts Member #: 700 Formerly British Open Classic The West Country |
9th Jan, 2010 at 10:28:09pm
On 9th Jan, 2010 Turbo Phil said:
I'm after one of these if by a miracle somebody has one. Have you got a car to put it in yet? Isambard Kingdom Brunel said:
Nothing is impossible if you are an Engineer |
||||||
|
69 Posts Member #: 2974 Advanced Member |
9th Jan, 2010 at 11:19:55pm
On 27th Nov, 2009 graemec said:
I'm looking for a Janspeed manifold that I believe was made for the Metro CHallenge series in the 80's. It is designed so that it can be used with either a Weber 45 or twin HIF4 SUs. Hi Graeme, forgot to mention, Edited by JC T ONE on 23rd Feb, 2010. |
||||||
|
3756 Posts Member #: 1709 I like granny porn. LONDONSHIRE |
10th Jan, 2010 at 02:55:45pm
On 9th Jan, 2010 JC T ONE said:
On 27th Nov, 2009 graemec said:

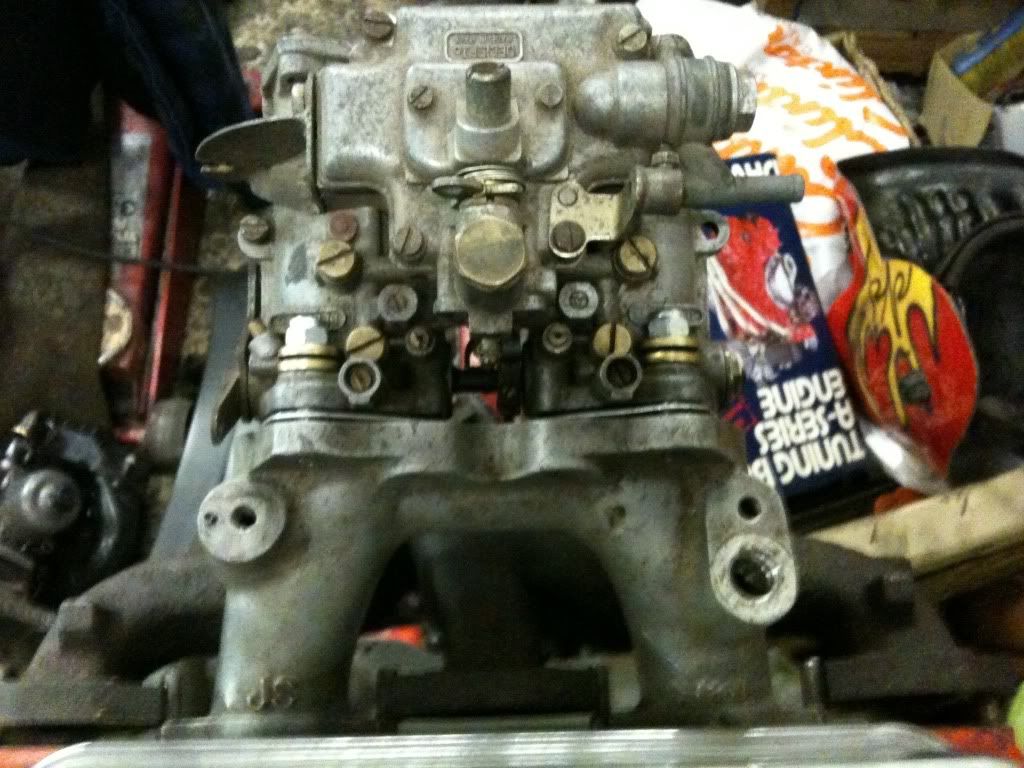

I'm looking for a Janspeed manifold that I believe was made for the Metro CHallenge series in the 80's. It is designed so that it can be used with either a Weber 45 or twin HIF4 SUs. Hi Graeme, forgot to mention, that manifold is made for a twin Dellortho, and/or twin SUs, NOT Weber. Jens Christian On 2nd Oct, 2009 Vegard said:
On 1st Oct, 2009 Jimster said:
I bet my first wank came quicker than your first mini turbo These new modern turbos with their quick spool up time, would make the competition harder. On 15th Aug, 2011 robert said:
phew!!! thank you brett for smashing in my back doors .( not something i imagined writing... EVER) |
||||||
 1346 Posts Member #: 2340 Post Whore Dublin Ireland |
10th Jan, 2010 at 03:34:47pm
Thats a Dellortho Rub not a Weber On 17th Feb, 2009 Rob H said:
I find the easiest way is to super glue the bolt to the end of one of my fingers. ______________________________________________________ |
||||||
|
3756 Posts Member #: 1709 I like granny porn. LONDONSHIRE |
10th Jan, 2010 at 03:41:08pm
doh!
On 2nd Oct, 2009 Vegard said:
On 1st Oct, 2009 Jimster said:
I bet my first wank came quicker than your first mini turbo These new modern turbos with their quick spool up time, would make the competition harder. On 15th Aug, 2011 robert said:
phew!!! thank you brett for smashing in my back doors .( not something i imagined writing... EVER) |
||||||
|
509 Posts Member #: 1027 Post Whore Germini, black forrest |
10th Jan, 2010 at 03:59:44pm
Are the flange/stud patterns different for Weber & DelOrtho? I though they were the same... [X] nail here for new monitor |
||||||
|
83 Posts Member #: 7115 Advanced Member essex |
10th Jan, 2010 at 05:30:56pm
They are the same stud pattern but the weber doesn't clear the inlet |
||||||
|
69 Posts Member #: 2974 Advanced Member |
11th Jan, 2010 at 07:30:16am
On 10th Jan, 2010 mini_kel said:
They are the same stud pattern but the weber doesn't clear the inlet Edited by JC T ONE on 23rd Feb, 2010. |
||||||
