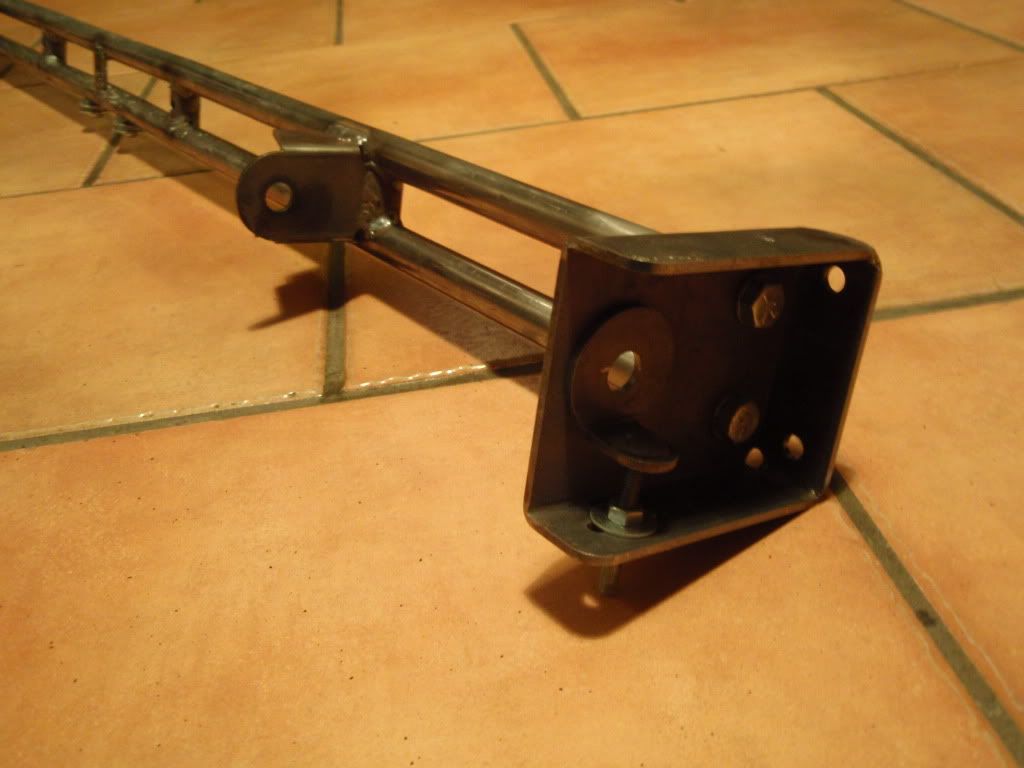

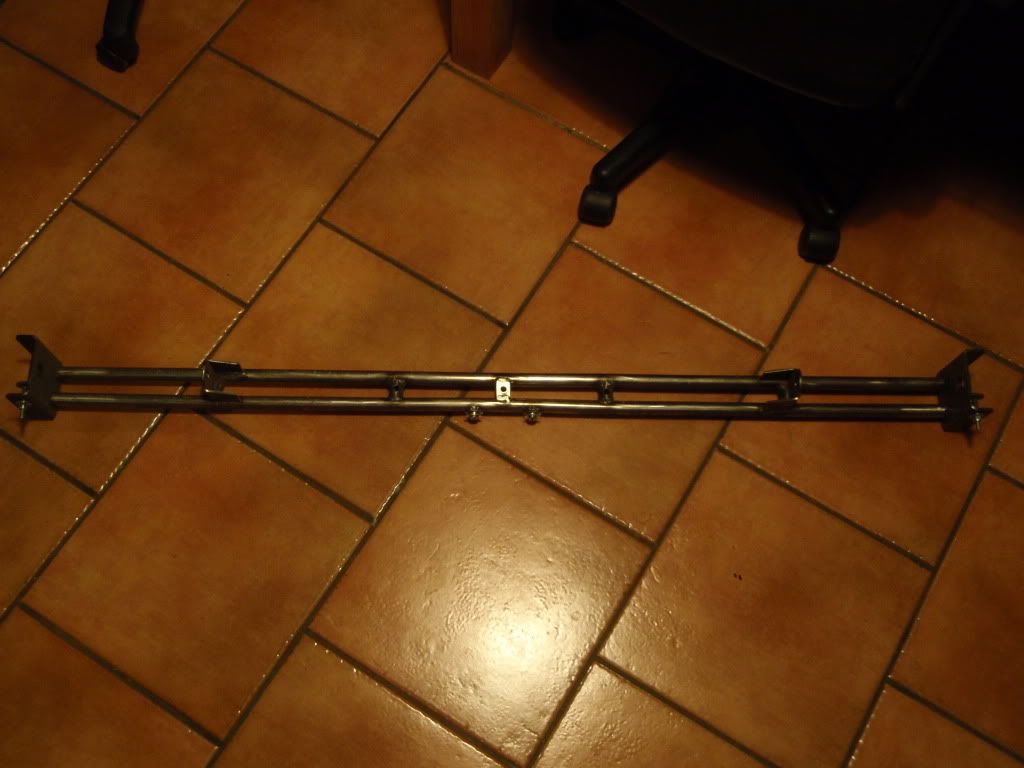

As some of you may have seen in Rob H's build thread i've knocked up an initial batch of rear beam brackets, with the intention of building up a few.

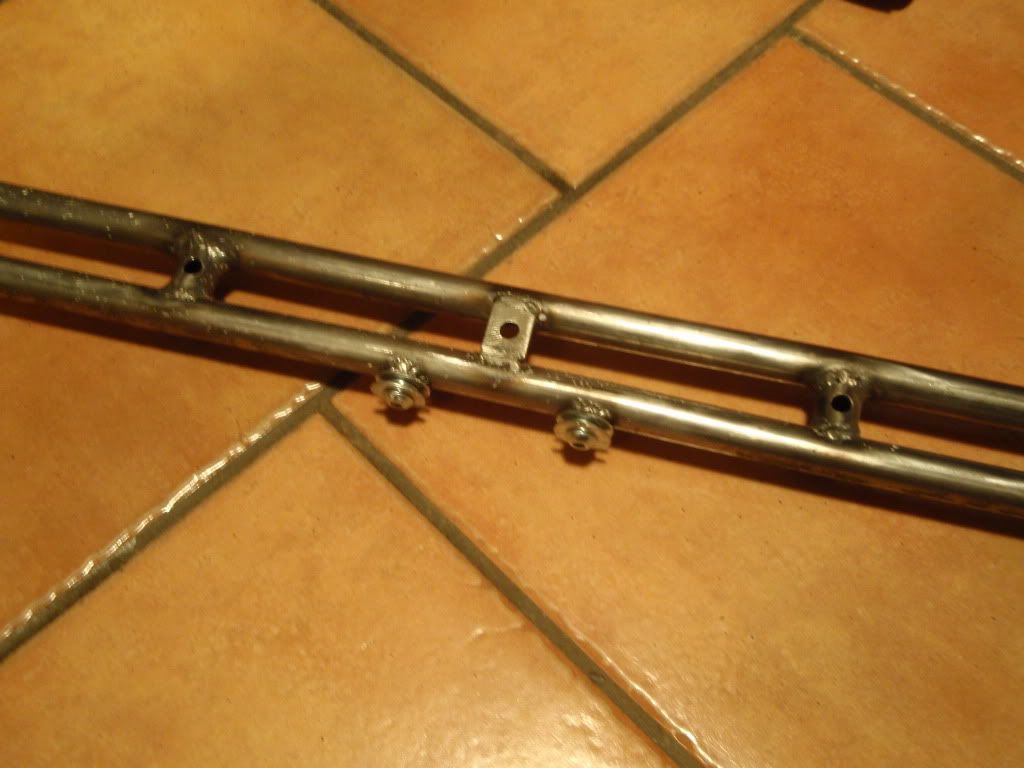

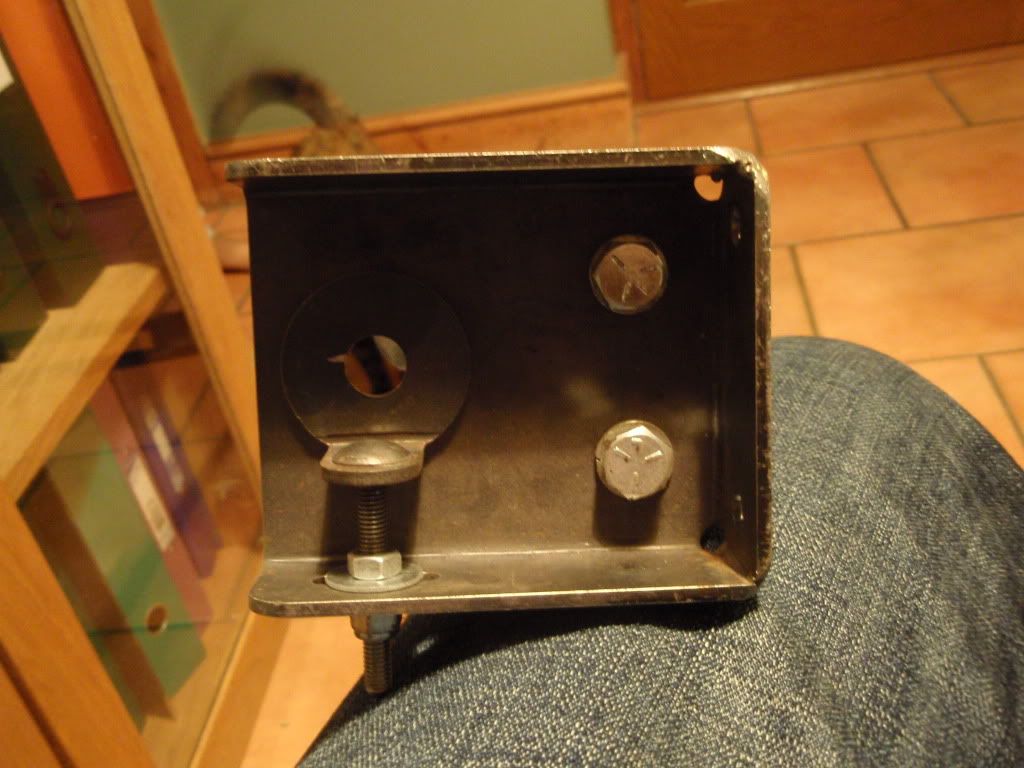

They are fully ajustable for camber and tracking, guides for handbrake cable to run in, exhaust bobbin mounting point, and mounting points for the heelboard. Inner and outer brackets are laser cut from 3mm steel and professionally folded in a propper bender.

Please excuse lack of paint, but will be supplied in gloss back unless a specific colour or coating is required.










Price-wise i would be looking for £85 posted (UK)

What are peoples thoughts?

bargain i reckon. not in the market for one but .. good job!

2012 Avon class c 2nd place 13.8 @98mph

I could be interested in one for the marcos but thats later in the year! looks good though and robs well happy with his!

You have a PM

1/4 Mile 14.3secs 96Mph Terminal 10psi of boost.


Fibreglass Parts? - http://www.tdkracing.co.uk/
Split Rims? - http://www.force-racing.co.uk/

they look the muts buts thats my opinion realistically, i dont need one now, but id like one if the future

Yes i moved to the darkside

Instagram @jdm_brett

I'f be interested in one in the future when funds allow.

Turbo parts collector at the moment, almost ready.

Nice, I've got to admit that I think your design is slightly better than the one that I came up with.

Have you though about adding a couple of little bosses to allow the possible fitment of an ARB at a later date, providing my mad design works!

Edited by Rob H on 8th Apr, 2010.

Gorgeous.

Well done mate, looks great. Good price too.

I'd recommend some pipe and hose brackets welded on as well for mounting tee piece/regulator and brake hose feeds to radius arms.

I'd also recommend fitting an inboard mounting point either side of the exhaust as the beams without triangulation tend to flex for and aft quite a bit, that way you can bolt it to the heelboard either side of the tunnel as well as picking up on the outer heelboard bolt positions a la standard subby.

Amazing how much these things flex when you pull the handbrake on.

The beam I made for the van to the original Speedex drawings cost me about £24 in steel tube and angle plus £25 to have powder coated.

Good work.

Richard.

Edited by turbominivanman on 8th Apr, 2010.

Minivanless, but reluctantly happy living with the decision. There'll be another one day.
http://www.youtube.com/profile?user=minimadmotorman#p/u

looks good - are they tried and tested?

Looks great!Well priced too I would say......especially when you look at some of the crap thats already out there.

Cheers Ross.

Id go for one as long as it doesnt need any further welding for mounts etc.

I would of had one if I hadn't just fitted a shuddersfield one. lol

https://www.facebook.com/pages/Fusion-Fabri..._homepage_panel

www.fusionfabs.co.uk



1/4mile in 13.2sec @ 111 terminal on 15psi

In reply to some comments, there are mounting points either side of the exhaust mounting.

Good shout about the bracket for the brake hoses.

Only tested so far on a car that hasn't been on the road hence why your opinions are helpfull.

No welding required.

I think i'll knock a couple up and go from there.

Look fine for drag racing but bearing in mind they are left substantial than Huddersfield beam and that flexed like a wobble board not to sure for anything that is going around corners!

On 5th Sep, 2011 Vegard said:
I stand corrected. You should know

id be keen, would you recommend it for road use?

1972 998 TURBO SLEEPER

I would be keen for one in the future!

I'll be interested in a couple :)

I fancy one, out off interest how much does it weigh?
Cheers

hi mate are you still making these

simon

I have started posting on Instagram also my name on there is turbomk1golf

Nothing is impossible it just costs more and takes longer.

I made a couple but never really got any further with the idea tbh, just ran out of time, can knock you up brackets though, either the same as these or to your own design.

hi mate, how much would you be looking for the ends then mate
