Hi all,
Cant seem to find an answer to this apparently simple problem anywhere. I have been rebuilding my carb and starting to look at putting things together.The carb was 2nd hand off ebay and arrived with a turbo manifold and plenum but all in separate bits. I have took pictures and re assembled exactly as it was before. I have this abutment bracket and spacer which is approx 5mm.



When assembled it seems the spacer has to go to the carb side, otherwise the abutment plate stands off on the leanoff pipe.

This is what i assume is the throttle lever, as origonally fitted, there is even a small milled cut out in the manifold to allow it to open

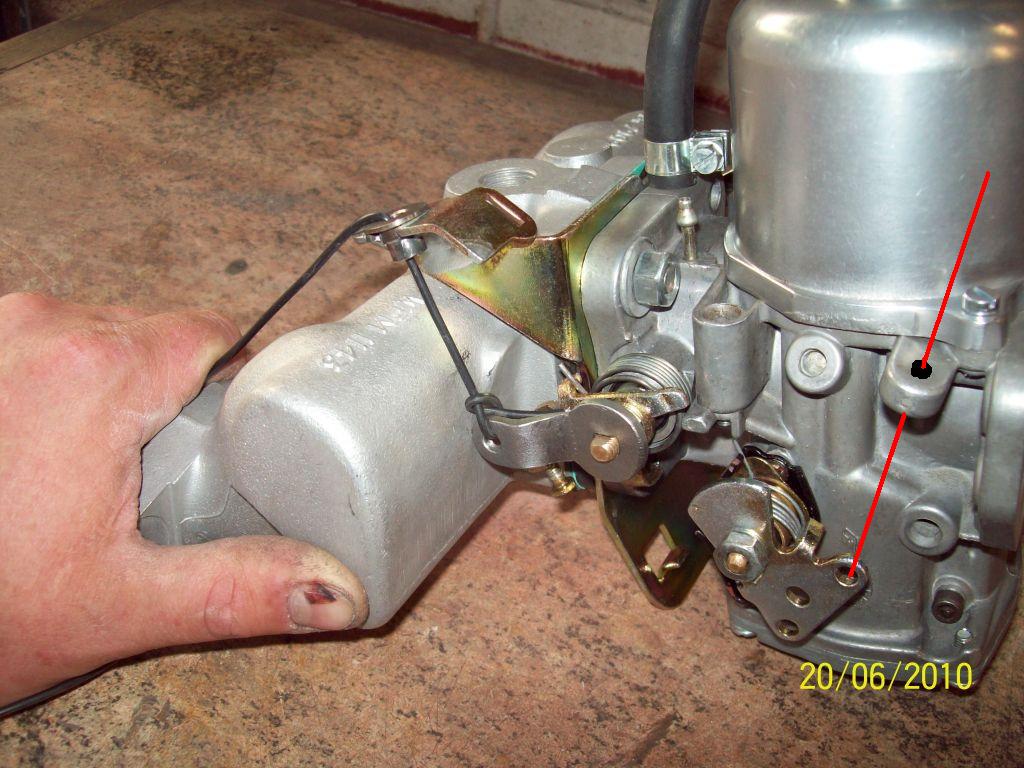

However with the bracket this way round it looks like this, doesnt seem to me like the throttle cable is anywhere near the right place, plus choke connection is on the wrong side.



This as i take it should be the correct way round, but as original, no throttle lever!



This is a n/a carb on the current motor, much more conventional setup with a simple spring lever on this end



and a much better throttle quadrant like this




but having measured the quadrant lever, it would not fit on the turbo manifold, its too long ann fouls

please help its driving me mad

cheers

oli

Edited by oli79 on 20th Jun, 2010.

On 5th Oct, 2014 Shauna said:
What that's crazy, you go commando hahaha! How heavy is your helmet ?

The abutment plate on our van is a 2 piece jobby to put the cables on opposite sides of teh carb. that looks like an n/a one to me

i done mine like the NA models you just need to file a very small amount of the carb linkage and works a treat

always looking for them bigger bunches of bannanas

oh and use the na linkage thats what i ment

always looking for them bigger bunches of bannanas

yeah you have the na carb plate thingy

Yes i moved to the darkside

Instagram @jdm_brett

Right-thanks everyone for the help, decided it would be easiest just to make an additonal throttle arm, so out with the cardboard and needle files and after a failed attempt:-



butchered the bracket so it sits on the carb side of the block and added a ferule for the cable

got it so it opens nice now with cable away from manifold and nice and straight





just need to plate/replate these bits and its good to go!

cheers oli

On 5th Oct, 2014 Shauna said:
What that's crazy, you go commando hahaha! How heavy is your helmet ?

my braket + throttle cam arm is on the other (proper) side, my choke is here

Attachments:

150.57kb

Edited by Brett on 21st Jun, 2010.

Yes i moved to the darkside

Instagram @jdm_brett

On 21st Jun, 2010 Brett said:
my braket + throttle cam arm is on the other (proper) side, my choke is here

Edited by oli79 on 21st Jun, 2010.

On 5th Oct, 2014 Shauna said:
What that's crazy, you go commando hahaha! How heavy is your helmet ?

if you drill something like a 3mm hole ( wide enough for the cable), then a 6 mm hole but not all the way through ( for the black sleeving) it all holds it self into place
