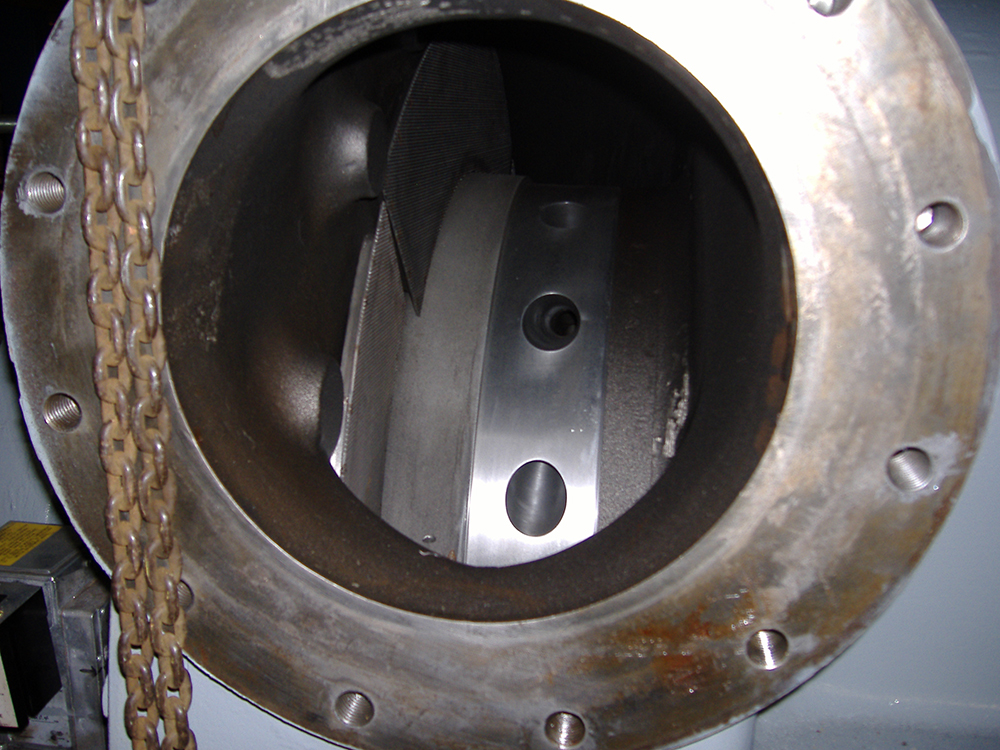

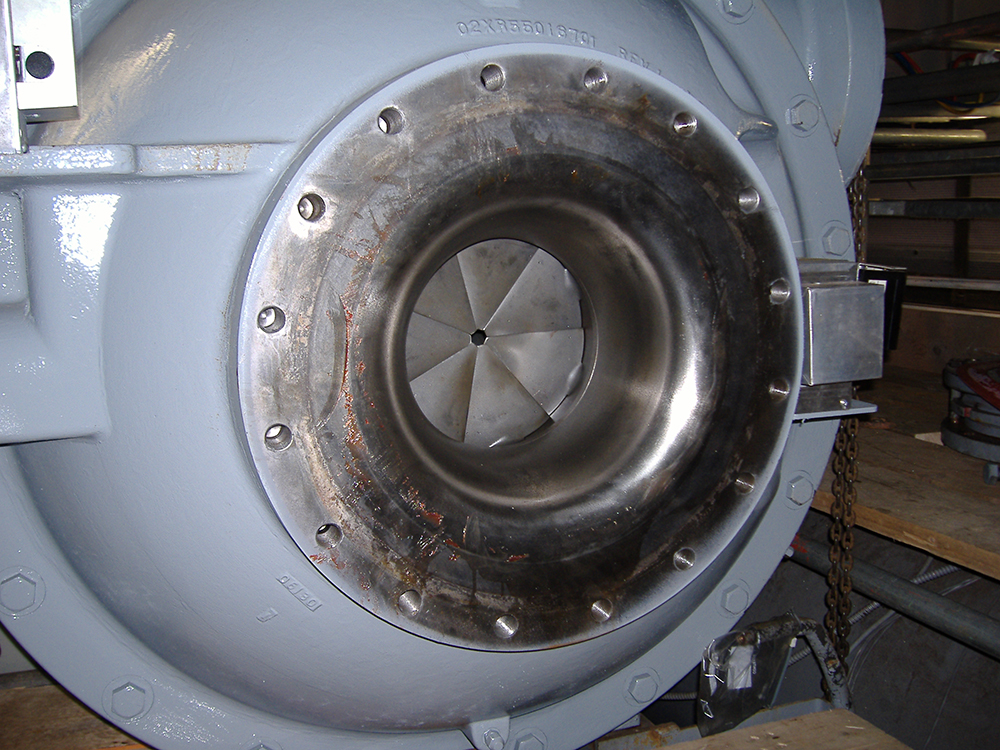

Earlier in the year, I was tasked with the re fitting of one of our Centrifugal compressors back onto the machine. This compressor is one of the largest 'package' compressors that we do at 5500kg. It is a single stage compressor with a variable diffuser. These compressors are throttled on their inlet by guide vanes, at the same time the diffuser moves in conjunction with the guide vanes to keep the compressor within the boundaries of surge and choke with the varaying gas flow. This is a single speed 3300v machine, but there is a variable speed option too, so over all, a very complex piece of machinery to keep within its operating limits. Which is the reason why the compressor was shipped to Texas for a rebuild (no buying a rebiuld kit on Ebay for these ) Normally we rebuild these in situ, but this one had already been completely removed from the machine and stripped down.

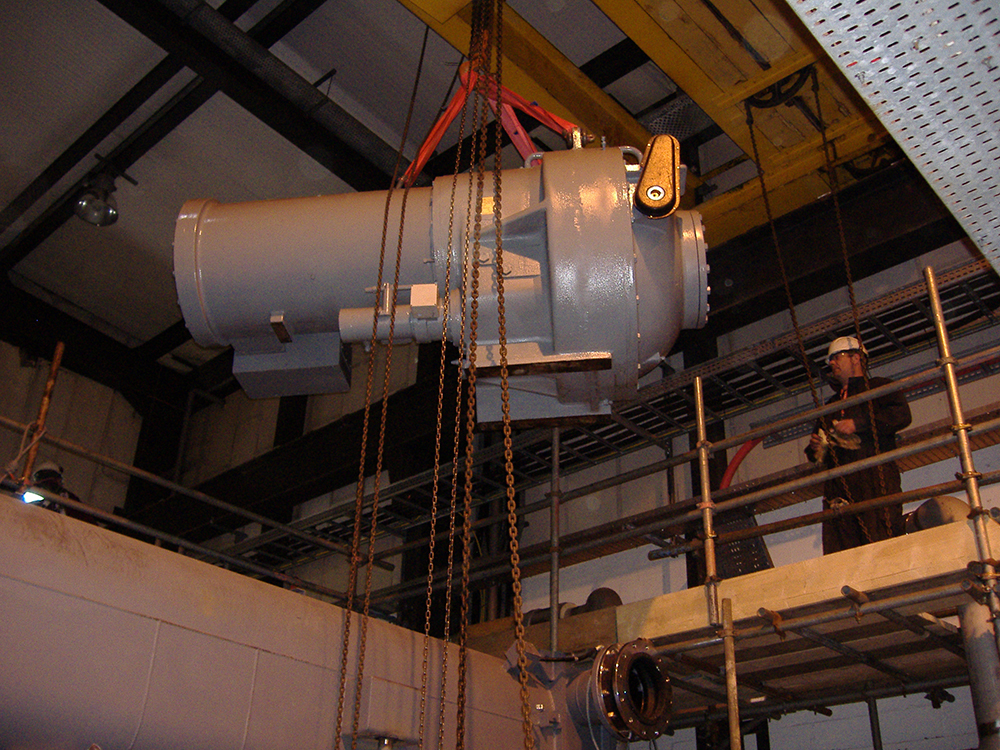

It took 5 of us an hour and a half, each having a turn, to lift the compressor from the flat bed 10m in the air, and 75m across the top of 5 other machines and another 3/4 of an hour to drop the compressor back onto its bed. For every 1m of lift, you pull 100m of chain with 5.5 tons on the end.

This is just a big electric supercharger

Attachments:

2.06mb

2.36mb

2.17mb

1.14mb

where will that fit in your mini

Thasts quite large!

1/4 Mile 14.3secs 96Mph Terminal 10psi of boost.


Fibreglass Parts? - http://www.tdkracing.co.uk/
Split Rims? - http://www.force-racing.co.uk/

what does the machine do then?

internationally known as "big" swede

should have said, id have lent you my tirfor lol

"Turbo's make torque, and torque makes fun"

"did you know you can toast potato waffles?"

criky. you dont want to get sucked into that bugger.

been at that all my life, the largest fo me was a 90 ton turbine at drax powerstation blueing the bearings in for 4 days.

mind you your project is no lightweight

These compressors are for refrigeration. This particular one is for one of the largest package (all in one) water chillers we do. The cooling capacity of this one chiller is 6000kw and uses 1600kg of refrigerant 134a, the same stuff in your car air conditioning. Your car is likely to use around 1kg of R134a and likely only 3kw cooling capacity. Certain buildings in Canary Wharf have six of these machines! just for the air conditioning. Talk about global warming and CO2 emissions, just for a bit of comfort!!! The compressor above has a different purpose, it if used in manufacturing process of penecilin.

We do an open drive (seperate gearbox and motor) 5 impellor centrifugal compressor for industrial applications, the likes of Ineos (old ICI) and Centrica Gas Storage. These sytems use 10s of 1000s of KG of refrigerant. The motor is so big that it itself has a starter motor just to get it moving

There is new development on the centrifugal compressors which is very very interesting. Magnetic oil free frictionless bearings. The shaft sits in a magnetic field, touches nothing and needs no oil!!!

OT but I work for Centrica now. (company has been bought by them)

If something is worth doing, it's worth doing half of.

Can you help me get a better deal on my gas bill

No but apparently I'll get a staff discount next year!

If something is worth doing, it's worth doing half of.

nice one for showing us :) cool as.

Best 1/4 mile 13.2 seconds @116 mph
First 5 port miniturbo to make over 200 bhp on a carb?
First 5 port miniturbo to make over 200 bhp on Injection?

http://www.mattwoodsphotography.com

Those sound like nice bearings for a turbocharger !!!

9.85 @ 145mph
202mph standing mile
speed didn't kill me, but taxation probably will

Can you get some cheep R134a? My mums fiesta needs re-gassing. hahaha. Sure they wont miss any!

Here you go Stevie http://www.turbocor.com/products_technology/magnetic.html

Just need to addopt the theory into turbo chargers, and perhaps use permenant magnets instead
