master cylinder
Turbo Mini Forums

Im looking at changing my master cylinders to this style. Does anyone have any pictures of theres fitted? And do they line up with the original studs?

https://www.facebook.com/pages/Fusion-Fabri..._homepage_panel

www.fusionfabs.co.uk



1/4mile in 13.2sec @ 111 terminal on 15psi

no the holes don't line up. They are mainly used on the after market p/box.
I've got one for my 16v project which will be fitted into an Allspeed p/box.

Edited by dig-mini on 8th Feb, 2012.

Craig

my mini van http://www.turbominis.co.uk/forums/index.php?p=vt&tid=448248

mine lined up ok..ish

Same with mine greg when i had them.

Tell me did they line up with the pedal box i seem to remember mine not doing but for the life of me i cant remember why not.

1/4 Mile 14.3secs 96Mph Terminal 10psi of boost.


Fibreglass Parts? - http://www.tdkracing.co.uk/
Split Rims? - http://www.force-racing.co.uk/

What master cylinders are you both using? Ive been looking at the ones on rallynuts website.

https://www.facebook.com/pages/Fusion-Fabri..._homepage_panel

www.fusionfabs.co.uk



1/4mile in 13.2sec @ 111 terminal on 15psi

Wilwoods, lines and pots etc from rally design. Need to mod the internals to fit a standard mini pedal box.

Mark which ones are those?

What mods did you have to do? From what I gather, the piston length might need to be altered and the need for the fork attachment. Anything else?

https://www.facebook.com/pages/Fusion-Fabri..._homepage_panel

www.fusionfabs.co.uk



1/4mile in 13.2sec @ 111 terminal on 15psi

Matty they are wilwood masters the size will depend on what pedal you want, about 0.7 for the brakes or smaller and 0.65 ish for the clutch (I use a bigger bore but will be going smaller)

And your right you need to reduce the piston length and attach a clevis - I cut mine with a die so I could get the length spot on and spun the clevis in place.

Hope that helps :)

Edited by MarkGTT on 9th Feb, 2012.

Excellent cheers Mark.

Ive just had a thought, would it work to run a single reservior for both clutch and brake?

Edited by matty on 9th Feb, 2012.

https://www.facebook.com/pages/Fusion-Fabri..._homepage_panel

www.fusionfabs.co.uk



1/4mile in 13.2sec @ 111 terminal on 15psi

As in share the reservoir? Not sure tbh. I use one per master.

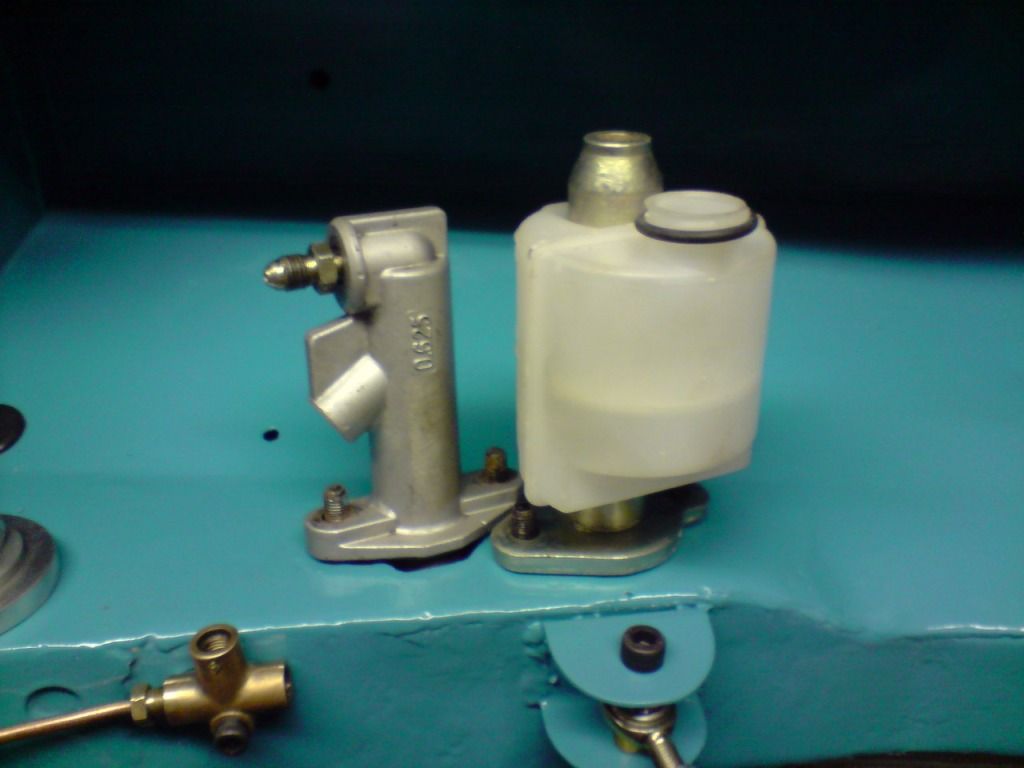

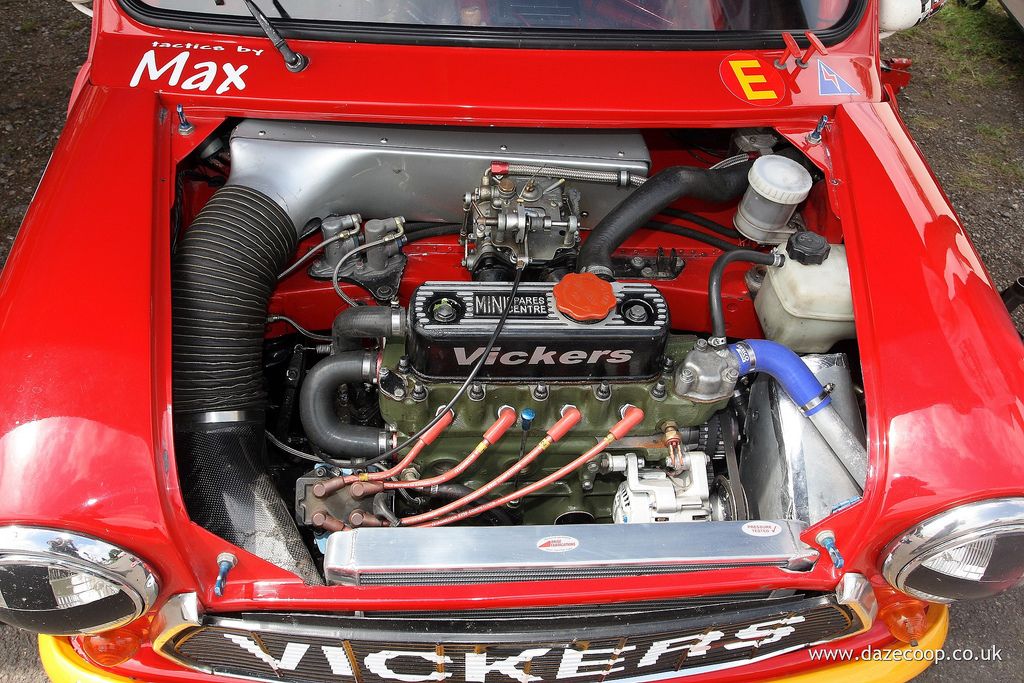

I think you can run a duel line from a reservoir to both the clutch and brake, i've been searching for one like in this pic, but no luck right now

can you buy the actual clevis part? i need that for my master cylinder

Yes you can buy the clevis

The Dual Line uses one of these.

You just sandwich a copper washer between the two banjos.

http://www.rallydesign.co.uk/images/RD1522.jpg

Heres what I bought

One of these
http://www.rallydesign.co.uk/product_info....oducts_id=10561

One of These
http://www.rallydesign.co.uk/product_info....roducts_id=4048

One of these
http://www.rallydesign.co.uk/product_info....oducts_id=14609

And one of these

http://www.rallydesign.co.uk/popup_image.php?pID=4055

1/4 Mile 14.3secs 96Mph Terminal 10psi of boost.


Fibreglass Parts? - http://www.tdkracing.co.uk/
Split Rims? - http://www.force-racing.co.uk/

BTW I use 0.75 but i believe the normal are 0.7. I had too much throw with my pedal box.

1/4 Mile 14.3secs 96Mph Terminal 10psi of boost.


Fibreglass Parts? - http://www.tdkracing.co.uk/
Split Rims? - http://www.force-racing.co.uk/

What if you loose you clutch slave? You would then also loose you brake fluid... Not sure I think that is a good idea

A single reservoir is quite common on modern cars with hydraulic clutches (modern concentric release bearing type) but the single reservoir has two tappings, the clutch one being very high up.

Schrödinger's cat - so which one am I ???

On 9th Feb, 2012 MarkGTT said:
Wilwoods, lines and pots etc from rally design. Need to mod the internals to fit a standard mini pedal box.

https://www.facebook.com/pages/Fusion-Fabri..._homepage_panel

www.fusionfabs.co.uk



1/4mile in 13.2sec @ 111 terminal on 15psi

Matty I did exactly as you explained above, cut the push rod down and spin a die down it for the modified clevis.

Ah at least I know im thinking along the right lines.

I was looking at threading the push rod further down, but the shaft looks a smaller diameter than where the threads are cut. I'll have another measure later, but nothing the tig won't sort out!

I guess you ditched the rubber boots too?

https://www.facebook.com/pages/Fusion-Fabri..._homepage_panel

www.fusionfabs.co.uk



1/4mile in 13.2sec @ 111 terminal on 15psi

Not sure of the rod diameter, think mine was the same.. I seem to remember using dust covers from an old mini ap cylinder, But to be honest for the use most minis get I'm sure running without will be fine.

Cheers for your help Mark, I might try and use a mini boot instead, but like you say its not as if its going to get muck in it where its sat anyway.

https://www.facebook.com/pages/Fusion-Fabri..._homepage_panel

www.fusionfabs.co.uk



1/4mile in 13.2sec @ 111 terminal on 15psi

Glad to help mate

On 25th Jun, 2012 matty said:
like you say its not as if its going to get muck in it where its sat anyway.
