Help with hoses on the manifold and carb?
Turbo Mini Forums

Okay so I know theres a thread around somewhere and it details what goes where on the carb, I either cant find this or the picture wont load anymore so I'm asking here:

Please can you tell me what goes to where on the red arrows and also where I should attach the pipe for my Megajolt, boost guage and top of the dump valve please :)

How does the pipes for the water on the Inlet Manifold work? I cant see where I would put any pipes to/from these

Also whats the thing ontop of the manifol that looks like an injector? It has a pipe commign off of it as well that I dont know about

Cheers

The two bottom arrows on the top picture are the water cooling/heating pipes for the manifold; personal preference as to whether these are connected. top of the manifold is for things like boost gauges and megajolt.

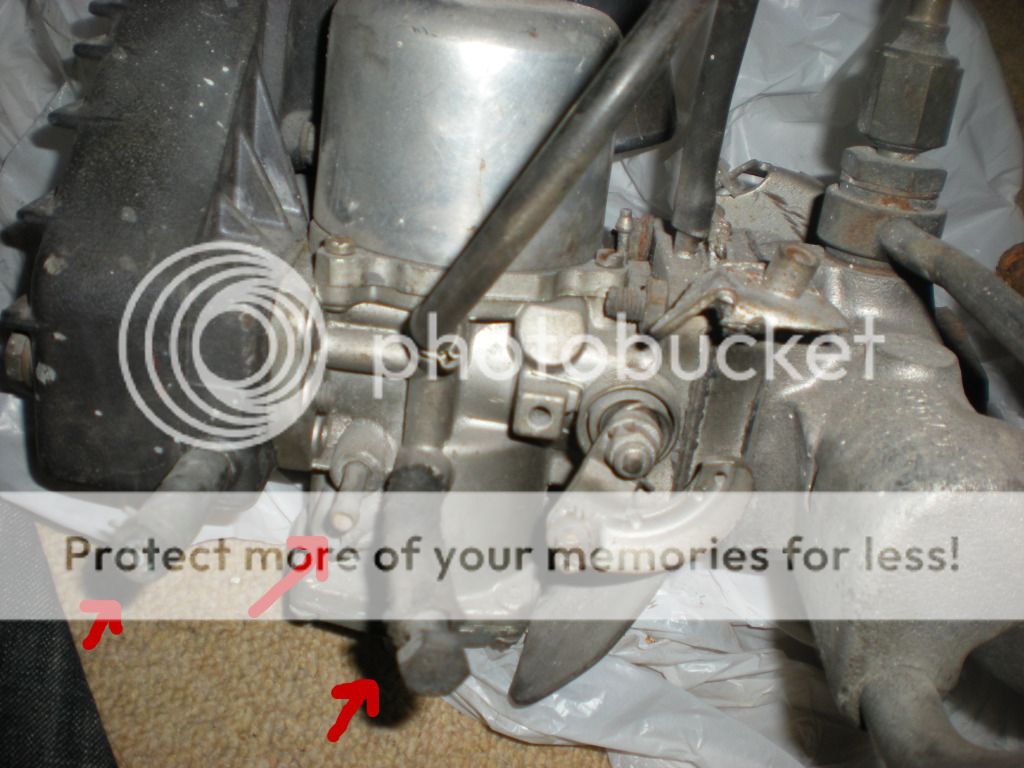

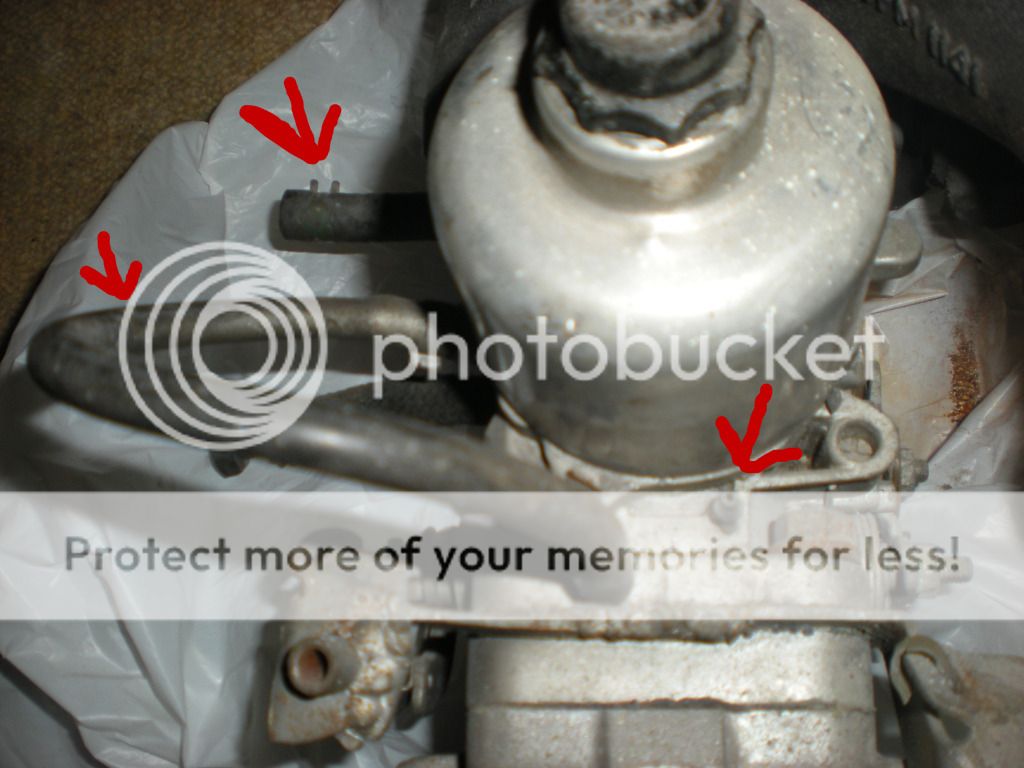

Second picture from top to bottom, top i believe is the regulator feed, middle is the carb's balance pipe and the bottom is the metro's vacuum advance take off for the dizzy.

On the last pic from left to right, left is actuator feed, next one is fuel in. The last one i'm not sure of though.

Hope that helps, and i'm sure i have the picture you're looking for somewhere...

EDIT: Found it:

Edited by Mike-998 on 28th Apr, 2012.

http://www.turbominis.co.uk/forums/index.p...tid=469104&fr=0

The two left and right on the manifold are the connections for the coolant supply to heat the manifold up. cut them of. The other one marked is for the servo vacuum hose on the metro. If you don't have a servo, you need to take this out. Then get an adapter and plumb your megajolt etc into the hole left behind.

Ahh Thanks guys, I dont have a servo so will use that for the megajolt
