what are these for? cooling/oil
Turbo Mini Forums

Hi,

started to collect parts for my project.

Sorry if this has been covered but couldnt find anywhere.

worked out how to plumb in most the turbo.

but what are these for and where do they go?

thanks

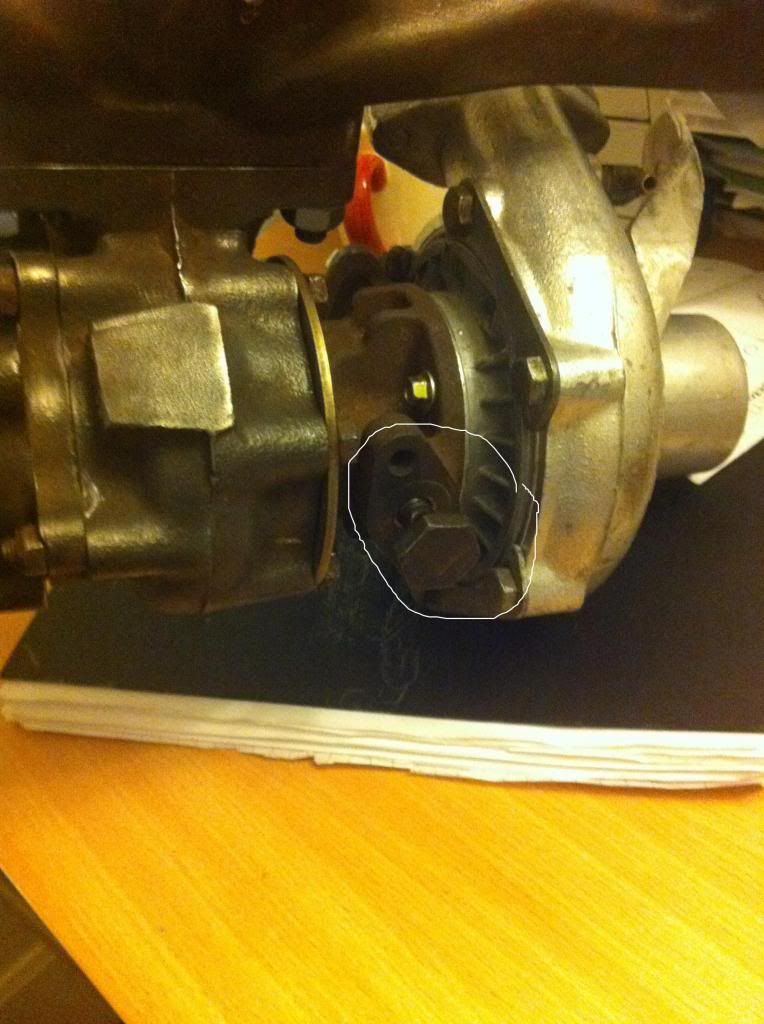

the connection in the top pic is the oil drain, it plumbs into the fuel pump hole in the back of the block.

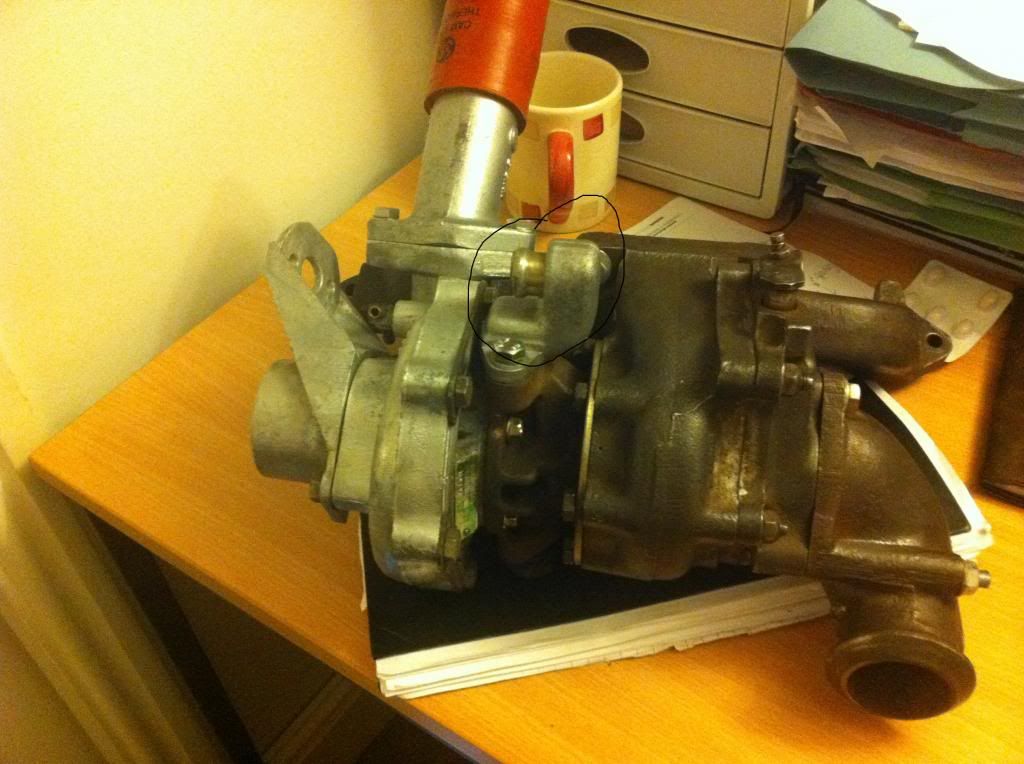

the bottom pic shows the oil feed, this connects to the front of the engine near the flywheel

Thanks for your help

you need to rotate the centre core aswell the bolt from the second pic should be ontop of the turbo when it is bolted up to the engine

Yes i moved to the darkside

Instagram @jdm_brett

Thanks Brett

that makes sense now was confused how i would run the pipe work

Have you the drain adapter which fits to the back of block to connect the Turbo drain to with a hose?

no i havent, was planning on making one up, unless i can pick one up cheap.

DSN classics sell them in there retro sport range.
