As part of my qualification to be a maintenance tech/engineer is to carry out a project.

now i chose to make a rear diffuser for my Metro, it will not be to f1 specs or anything like that but it will be made to create a flat floor under the rear of the car which will sweep upwards to the rear bumper.

i know a few of you guys have made some diffusers i was wondering if you wouldn't mind posting a few pictures, i will try and keep this updated as my project goes on the planning costing and building of the diffuser to help anyone else who may wish to do the same.

Drives
-Ford Focus 163 Estate - Daily
-Rover 100 VVC - Drag/Track project

Searching is all you need on TurboMinis


Kean

User Avatar

2401 Posts
Member #: 341
aka T2clubby

South Staffs

Couple of mine here, will try and remember to post some of it off the car

http://www.turbominis.co.uk/forums/index.p...d=400612&fr=100


Brett

User Avatar

9449 Posts
Member #: 1023
Post Whore

Doncaster, South Yorkshire

Best get ordering cardboard and tie wraps then hehehe

Ill post pics of mine when im on the laptop

My B18VtecTurbo Awd Mini 2 years in, been running for 2years +.... vtec just kicked in yo
Instagram @jdm_brett

On 14th Feb, 2014 robert said:
I think he thought his car was 465kg ,and you then guessed it at 565kg , and stuff me !! you were right


t3gav

2380 Posts
Member #: 229
Gavin@minispares.com

kent

http://www.talonsportscars.com/100rt.php

If you make one, make 2 and I'll buy one for my Vtec Metro :)


Paul R

User Avatar

4016 Posts
Member #: 1757
Back to Fucking Tool status

Swindon

done what bumper though?

Edited by Paul R on 2nd Oct, 2014.

Drives
-Ford Focus 163 Estate - Daily
-Rover 100 VVC - Drag/Track project

Searching is all you need on TurboMinis


wil_h

User Avatar

9235 Posts
Member #: 123
Post Whore

Betwix Harrogate and York

Have a read of Simon McBeaths book on aerodynamics. Some nice info on diffuser angles and designs.

I know you don't want a full on thing. But as it's a project, why not educate yourself while you're at it.

Fastest 998 mini in the world? 13.05 1/4 mile 106mph

www.twin-turbo.co.uk

On 2nd Jan, 2013 fastcarl said:

the design shows a distinct lack of imagination,
talk about starting off with a clean sheet of paper, then not bothering to fucking draw on it,lol

On 20th Apr, 2012 Paul S said:
I'm mainly concerned about swirl in the runners caused by the tangential entry.


Kean

User Avatar

2401 Posts
Member #: 341
aka T2clubby

South Staffs

There was a good feature on aero through a few of the track driver mags if you signed up for them.


Aubrey_Boy

User Avatar

690 Posts
Member #: 9962
Post Whore

8 degrees or less for the main diffuser to the road angle. (Bear in mind this angle changes with body rake angle)

Like any underbody aero device surface area is the key so make it as long and as wide as you can package.

Keep the diffuser to side panel radius pretty generous, the radius of any fences to the diffuser doesn't seem to matter

The number of vertical fences depends on the flow down stream of the diffuser, if you can't measure anything related to the amount of actual downforce then try it with no vertical fences and then with 3 or so and see if you can feel any difference. I have never used more than 5 vertical fences and seen any benefit beyond this.

Any fences need to be securely mounted as they will vibrate and drop off otherwise

Will be interesting to see what you come up with


Brett

User Avatar

9449 Posts
Member #: 1023
Post Whore

Doncaster, South Yorkshire

this is mine, i apologise is it will look like i took over your thread lol

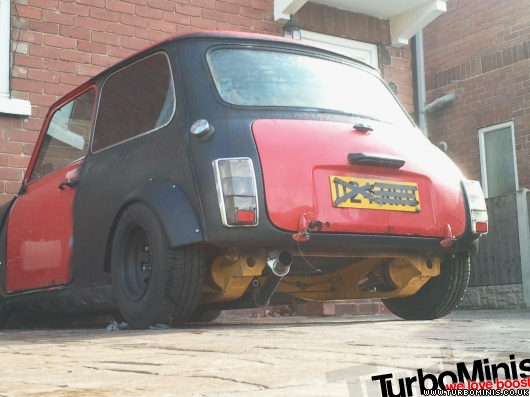

the whole rear end was built to accommodate the diffuser flat bottomed boot floor, modified subframe

CAD *happy*

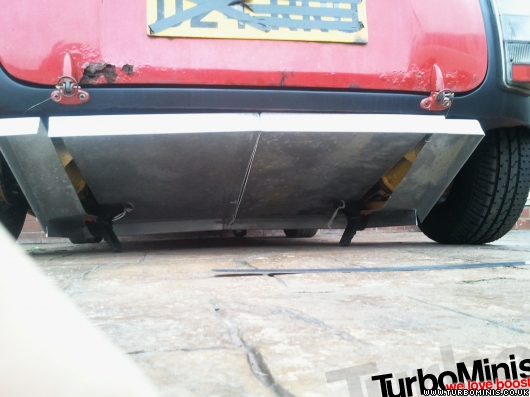

cut out and test fitted

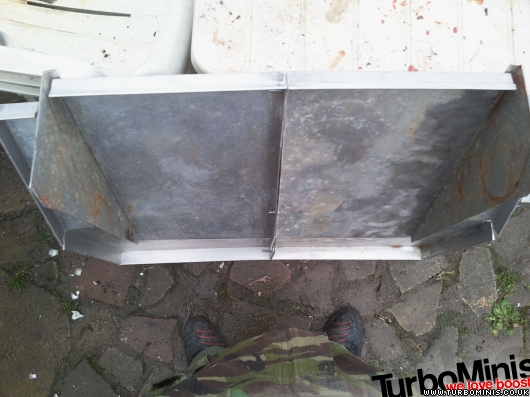

vertical sides

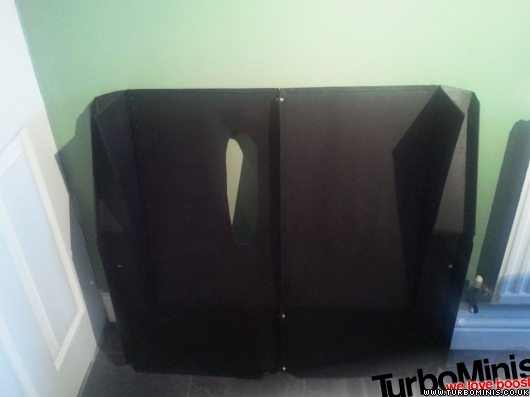

finnished

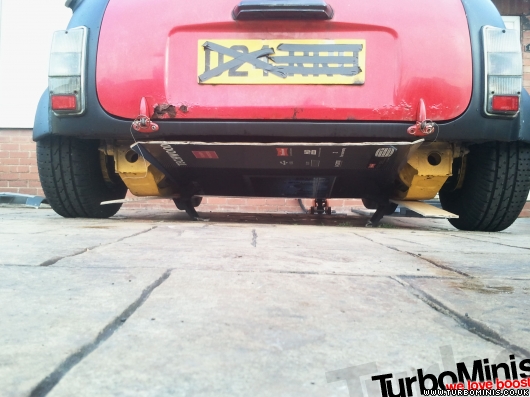

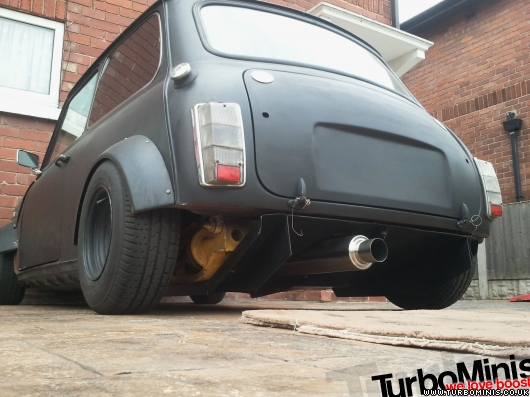

fitted and trimmed as it wouldnt get off the drive *happy*

bolts direct to subframe and a blade bolted in the centre of the boot the forward most part onto the heel board
no idea how much grip it gave i only ever had it on the dragstrip one day without it and on the road once, it made the car super stable at speed and alot more planted in the bends
made out of an ex mod serving trolly *happy* 2 full shelfs *tongue*, still have it no idea what im going to do with it as my rear diff gets in the way, it wont fit a standard subby so may donate it self towards the new back seat / bulkhead area

Edited by Brett on 2nd Oct, 2014.

My B18VtecTurbo Awd Mini 2 years in, been running for 2years +.... vtec just kicked in yo
Instagram @jdm_brett

On 14th Feb, 2014 robert said:
I think he thought his car was 465kg ,and you then guessed it at 565kg , and stuff me !! you were right


t3gav

2380 Posts
Member #: 229
Gavin@minispares.com

kent

Mine is actually Rover 100, are you using side or centre exit exhaust?


On 2nd Oct, 2014 Paul R said:
done what bumper though?


Paul R

User Avatar

4016 Posts
Member #: 1757
Back to Fucking Tool status

Swindon

side ashley system at the moment, my exhaust is mounted as high as possible i have a cut out in the bumper for the exhaust currently.
i was planning on having an upswept tail pile directly from the valance so it exits behind the diffuser but i will see what happens, i would like to go centre exit but cant be bothered to cut up the exhaust at present.

I will keep this updated as there are alot more who seem to be interested than i thought.

diffuser will be as wide as possible, mounted to the original subframe and back of the heelboard if possible.

Drives
-Ford Focus 163 Estate - Daily
-Rover 100 VVC - Drag/Track project

Searching is all you need on TurboMinis


slater

User Avatar

1005 Posts
Member #: 1291
Post Whore

Suffolk / Birmingham

Made from?


apbellamy

User Avatar

16534 Posts
Member #: 4241
King Gaycharger, butt plug dealer, Sheldon Cooper and a BAC but generally a niceish fella if you dont mind a northerner

Rotherham, South Yorkshire

Ice cream tubs and cable ties.

On 11th Feb, 2015 robert said:
i tried putting soap on it , and heating it to brown , then slathered my new lube on it

*hehe!*


Carlzilla

User Avatar

3673 Posts
Member #: 9300
Post Whore

Quarry Bonk

Stolen road signs? *hehe!*

On 26th Jan, 2012 Tom Fenton said:
ring problems are down to wear or abuse but although annoying it isn't a show stopper

On 5th Aug, 2014 madmk1 said:
Shit the bed! I had snapped the end of my shaft off!!

17.213 @ 71mph, 64bhp n/a (Old Engine)


Paul R

User Avatar

4016 Posts
Member #: 1757
Back to Fucking Tool status

Swindon

1.5mm ally most probably or fiberglass depends on what funding I'm given.

Drives
-Ford Focus 163 Estate - Daily
-Rover 100 VVC - Drag/Track project

Searching is all you need on TurboMinis
