Home > Help Needed / General Tech Chat > MegaSquirt Volvo ECU Wiring Issues | |||||||
6549 Posts Member #: 1149 #1 Basshunter Fan Force Racing ICT Dept Manager Miglia Turbo Am frum Yokshyer tha noes! |
15th Jul, 2015 at 12:39:02pm
Chaps, im getting very close to firing up the Volvo Engine now.
1/4 Mile 14.3secs 96Mph Terminal 10psi of boost.
|
||||||
5988 Posts Member #: 2024 Formally Retired Rural Suffolk |
15th Jul, 2015 at 02:59:23pm
You'd probably be much better asking this question on the MS-Extra forum.
Schrödinger's cat - so which one am I ??? |
||||||
6549 Posts Member #: 1149 #1 Basshunter Fan Force Racing ICT Dept Manager Miglia Turbo Am frum Yokshyer tha noes! |
15th Jul, 2015 at 03:01:31pm
Hi Rod, thanks for the reply,
1/4 Mile 14.3secs 96Mph Terminal 10psi of boost.
|
||||||
5988 Posts Member #: 2024 Formally Retired Rural Suffolk |
15th Jul, 2015 at 03:37:11pm
Mike,
Schrödinger's cat - so which one am I ??? |
||||||
1267 Posts Member #: 831 Post Whore Montreal, Canada |
15th Jul, 2015 at 04:04:31pm
Rod is right: you need a cam signal for any 5-cylinder engine (or 3-cylinder engine). There is no other way to fire a coil every 144 degrees.
|
||||||
6549 Posts Member #: 1149 #1 Basshunter Fan Force Racing ICT Dept Manager Miglia Turbo Am frum Yokshyer tha noes! |
15th Jul, 2015 at 04:10:20pm
Yeah I will guys. It also has a cam sensor too. 1/4 Mile 14.3secs 96Mph Terminal 10psi of boost.
|
||||||
696 Posts Member #: 10034 Post Whore Birmingham |
15th Jul, 2015 at 05:13:11pm
I used MS2 to fire a single coil and dizzy on my SPI Mini. 3 things I found:
Edited by PhilR on 15th Jul, 2015. |
||||||
3569 Posts Member #: 655 Post Whore Northern Ireland |
15th Jul, 2015 at 05:30:42pm
He seems to say the engine has a distributor.
9.85 @ 145mph
|
||||||
1267 Posts Member #: 831 Post Whore Montreal, Canada |
15th Jul, 2015 at 05:39:20pm
On 15th Jul, 2015 stevieturbo said:
He seems to say the engine has a distributor. No cam sensor etc should be necessary unless the firing angles are not equal. The distributor IS the cam sensor, so to speak. Wrong. With a 5-cylinder engine, there are 2.5 ignition events per rev which is obviously not possible. So you either have 2 or 3 ignition events and without a cam sensor, the ECU doesn't know which rev it's on. As I said, try to see how you can fire one coil every 144 degrees without knowing where in the 720 degree cycle you are. If you only have a crank sensor, you will either fire correctly every 144 degrees or you will fire with a 72 degree offset if you guessed wrong which rev you're on. And the distributor won't correct for this as you'll be between posts when you try to fire. |
||||||
5988 Posts Member #: 2024 Formally Retired Rural Suffolk |
15th Jul, 2015 at 06:51:49pm
On 15th Jul, 2015 stevieturbo said:
He seems to say the engine has a distributor. No cam sensor etc should be necessary unless the firing angles are not equal. The distributor IS the cam sensor, so to speak. The thing is the distibutor can carry the spark to the right plug but, because the firing angles are not equal over a HALF cycle (one revolution) but only equal over a full cycle (two revolutions) a crank timing isn't enough for the ECU. Only a cam does the whole cycle for the ECU to know when to set the spark off to the distibutor. I was a bit unsure when I answered earlier but Jean has re-affirmed what I initially thought. Schrödinger's cat - so which one am I ??? |
||||||
9502 Posts Member #: 1023 Post Whore Doncaster, South Yorkshire |
15th Jul, 2015 at 07:05:21pm
Meh, that is all lol,
Yes i moved to the darkside
|
||||||
11046 Posts Member #: 965 Post Whore Preston On The Brook |
15th Jul, 2015 at 08:04:39pm
Megasquirt does not yet support odd fire?! On 26th Oct, 2004 TurboDave16v said:
Is it A-Series only? I think it should be... So when some joey comes on here about how his 16v turbo vauxhall is great compared to ours, he can be given the 'bird'... On 26th Oct, 2004 Tom Fenton said:
Yep I agree with TD........ |
||||||
1267 Posts Member #: 831 Post Whore Montreal, Canada |
15th Jul, 2015 at 08:10:28pm
On 15th Jul, 2015 Sprocket said:
Megasquirt does not yet support odd fire?! Yes it does. But that has nothing to do with this. An even fire single coil 5-cylinder engine still requires a cam speed tach signal. |
||||||
6549 Posts Member #: 1149 #1 Basshunter Fan Force Racing ICT Dept Manager Miglia Turbo Am frum Yokshyer tha noes! |
15th Jul, 2015 at 08:20:52pm
Can anyone shed any light on the wiring?
1/4 Mile 14.3secs 96Mph Terminal 10psi of boost.
|
||||||
5988 Posts Member #: 2024 Formally Retired Rural Suffolk |
15th Jul, 2015 at 08:53:33pm
On 15th Jul, 2015 jbelanger said:
On 15th Jul, 2015 Sprocket said:
Megasquirt does not yet support odd fire?! Yes it does. But that has nothing to do with this. An even fire single coil 5-cylinder engine still requires a cam speed tach signal. I don't think Colin understands the difference between odd-fire and an odd number of cylinders. I had to think about it for a while but it's pretty obvious once you think about it. On 15th Jul, 2015 MikeRace said:
Can anyone shed any light on the wiring? Im guessing it wires to the VREF2 however my Cam sensor has 3 wires not 2? Mike, if your cam sensor has three wires it's most likely a hall sensor, not VR. Basically that means it needs a pull up voltage, either 5V or 12V (depending on who made it) as well as signal and ground. The MS manuals have been very well updated over the last year or so, pretty much all of the wiring options for the various sensor options are now in the manuals in pretty much one place instead of searching for ages like we used to have to do. Schrödinger's cat - so which one am I ??? |
||||||
6549 Posts Member #: 1149 #1 Basshunter Fan Force Racing ICT Dept Manager Miglia Turbo Am frum Yokshyer tha noes! |
15th Jul, 2015 at 10:30:36pm
Thanks for the info guys, I'll have a read tomorrow and try to get my head around it all 1/4 Mile 14.3secs 96Mph Terminal 10psi of boost.
|
||||||
Site Admin 15300 Posts Member #: 337 Fearless Tom Fenton, Avon Park 2007 & 2008 class D winner & TM legend. |
16th Jul, 2015 at 07:45:11am
Mike, why are you not using the Volvo management?
On 29th Nov, 2016 madmk1 said:
On 28th Nov, 2016 Rob Gavin said:
I refuse to pay for anything else Like fuel 😂😂 |
||||||
11046 Posts Member #: 965 Post Whore Preston On The Brook |
16th Jul, 2015 at 07:51:21am
You're right I didn't understand. For some reason I was thinking the crank was flat plane and the cylinders were in a shallow V. Applying any real though, that wouldn't work anyway. I didn't think
On 15th Jul, 2015 Rod S said:
On 15th Jul, 2015 jbelanger said:
On 15th Jul, 2015 Sprocket said:
Megasquirt does not yet support odd fire?! Yes it does. But that has nothing to do with this. An even fire single coil 5-cylinder engine still requires a cam speed tach signal. I don't think Colin understands the difference between odd-fire and an odd number of cylinders. I had to think about it for a while but it's pretty obvious once you think about it. On 15th Jul, 2015 MikeRace said:
Can anyone shed any light on the wiring? Im guessing it wires to the VREF2 however my Cam sensor has 3 wires not 2? Mike, if your cam sensor has three wires it's most likely a hall sensor, not VR. Basically that means it needs a pull up voltage, either 5V or 12V (depending on who made it) as well as signal and ground. The MS manuals have been very well updated over the last year or so, pretty much all of the wiring options for the various sensor options are now in the manuals in pretty much one place instead of searching for ages like we used to have to do. Edited by Sprocket on 16th Jul, 2015. On 26th Oct, 2004 TurboDave16v said:
Is it A-Series only? I think it should be... So when some joey comes on here about how his 16v turbo vauxhall is great compared to ours, he can be given the 'bird'... On 26th Oct, 2004 Tom Fenton said:
Yep I agree with TD........ |
||||||
6549 Posts Member #: 1149 #1 Basshunter Fan Force Racing ICT Dept Manager Miglia Turbo Am frum Yokshyer tha noes! |
16th Jul, 2015 at 08:04:50am
I did try this to begin with, but Tom, you should see the loom pal. Its a sequence of utter nightmares haha.
On 16th Jul, 2015 Tom Fenton said:
Mike, why are you not using the Volvo management? I know the T5 engines can be remapped on the standard ECU etc to big power. 1/4 Mile 14.3secs 96Mph Terminal 10psi of boost.
|
||||||
6549 Posts Member #: 1149 #1 Basshunter Fan Force Racing ICT Dept Manager Miglia Turbo Am frum Yokshyer tha noes! |
16th Jul, 2015 at 09:11:27am

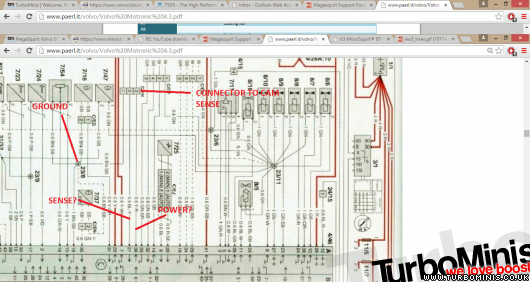

Chaps, looking at this diagram.
1/4 Mile 14.3secs 96Mph Terminal 10psi of boost.
|
||||||
6549 Posts Member #: 1149 #1 Basshunter Fan Force Racing ICT Dept Manager Miglia Turbo Am frum Yokshyer tha noes! |
16th Jul, 2015 at 09:19:57am

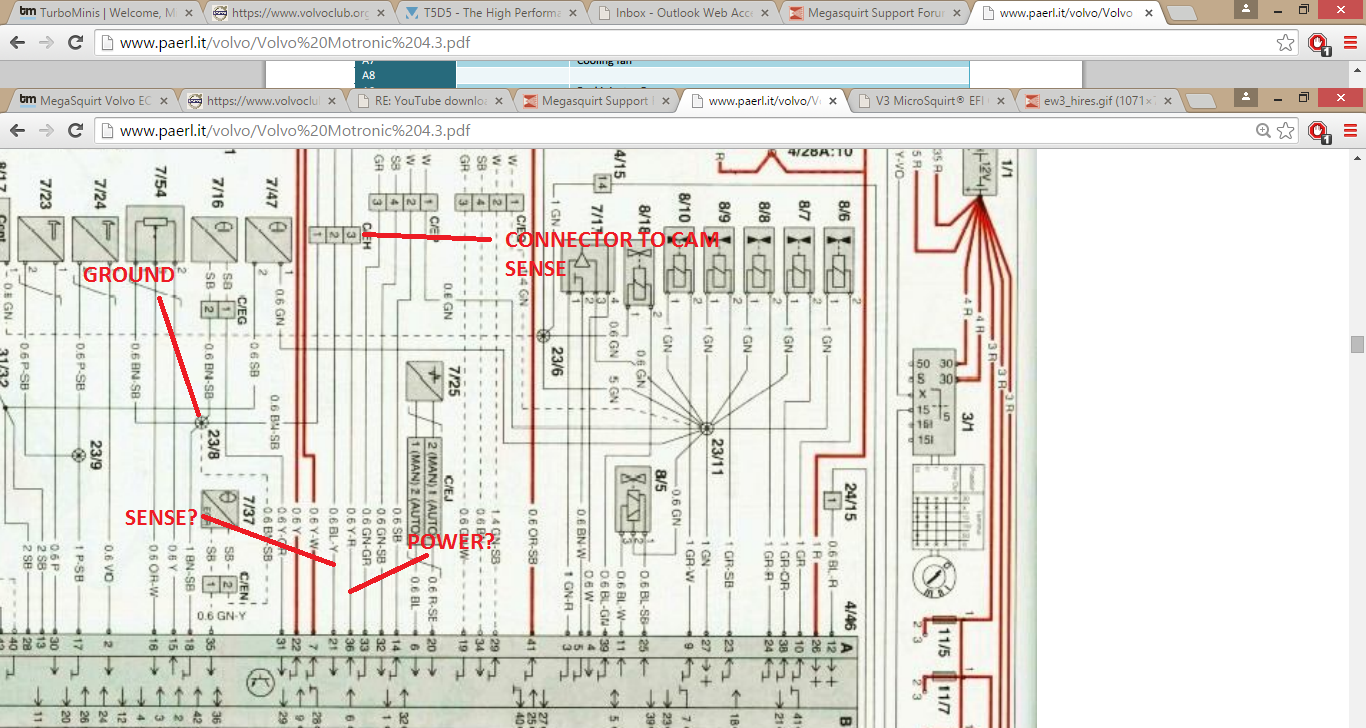

Ive added as an attachment as its quite small 1/4 Mile 14.3secs 96Mph Terminal 10psi of boost.
|
||||||
5988 Posts Member #: 2024 Formally Retired Rural Suffolk |
16th Jul, 2015 at 09:34:04am
Mike,
Schrödinger's cat - so which one am I ??? |
||||||
Site Admin 15300 Posts Member #: 337 Fearless Tom Fenton, Avon Park 2007 & 2008 class D winner & TM legend. |
16th Jul, 2015 at 09:50:53am
To be honest Mike my approach would be to sit there with the standard Volvo stuff and unpick the loom to get it down to the bare bones you need to run the engine.
On 29th Nov, 2016 madmk1 said:
On 28th Nov, 2016 Rob Gavin said:
I refuse to pay for anything else Like fuel 😂😂 |
||||||
12307 Posts Member #: 565 Carlos Fandango Burnham-on-Crouch, Essex |
16th Jul, 2015 at 09:59:18am
Or stick a diesel in it.... On 28th Aug, 2011 Kean said:
At the risk of being sigged... Joe, do you have a photo of your tool? http://www.turbominis.co.uk/forums/index.p...9064&lastpost=1 https://joe1977.imgbb.com/ |
||||||
6549 Posts Member #: 1149 #1 Basshunter Fan Force Racing ICT Dept Manager Miglia Turbo Am frum Yokshyer tha noes! |
16th Jul, 2015 at 10:08:52am
Problem is tom, the ecu is in 2 halves. One side to the engine and other to car, and the central locking shit and alarm/transponder is all interlinked.
On 16th Jul, 2015 Tom Fenton said:
To be honest Mike my approach would be to sit there with the standard Volvo stuff and unpick the loom to get it down to the bare bones you need to run the engine. 1/4 Mile 14.3secs 96Mph Terminal 10psi of boost.
|
||||||
