Hello
I want to have more clearance on rear damper

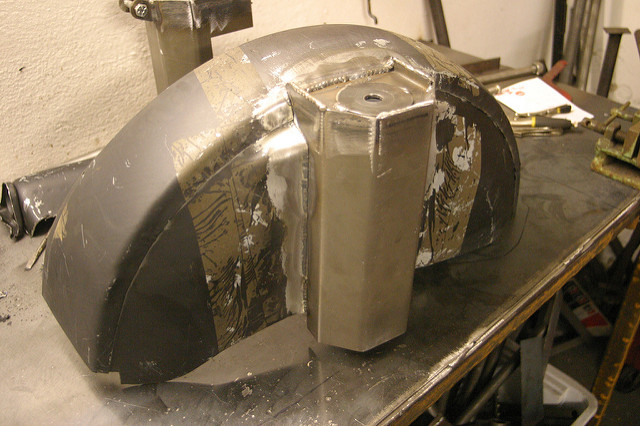

Can someone give me a technical drawing from rear coilover turrets, I want to build it myself
Thank you


Attachments:
Click to Enlarge
99.15kb

adcyork

User Avatar

539 Posts
Member #: 6807
Post Whore

York

19th Sep, 2016 at 11:37:18pm

Measure what extra clearance you want and draw one up to your requirements if you want to make them your self


Brett

User Avatar

9502 Posts
Member #: 1023
Post Whore

Doncaster, South Yorkshire

20th Sep, 2016 at 09:15:02am

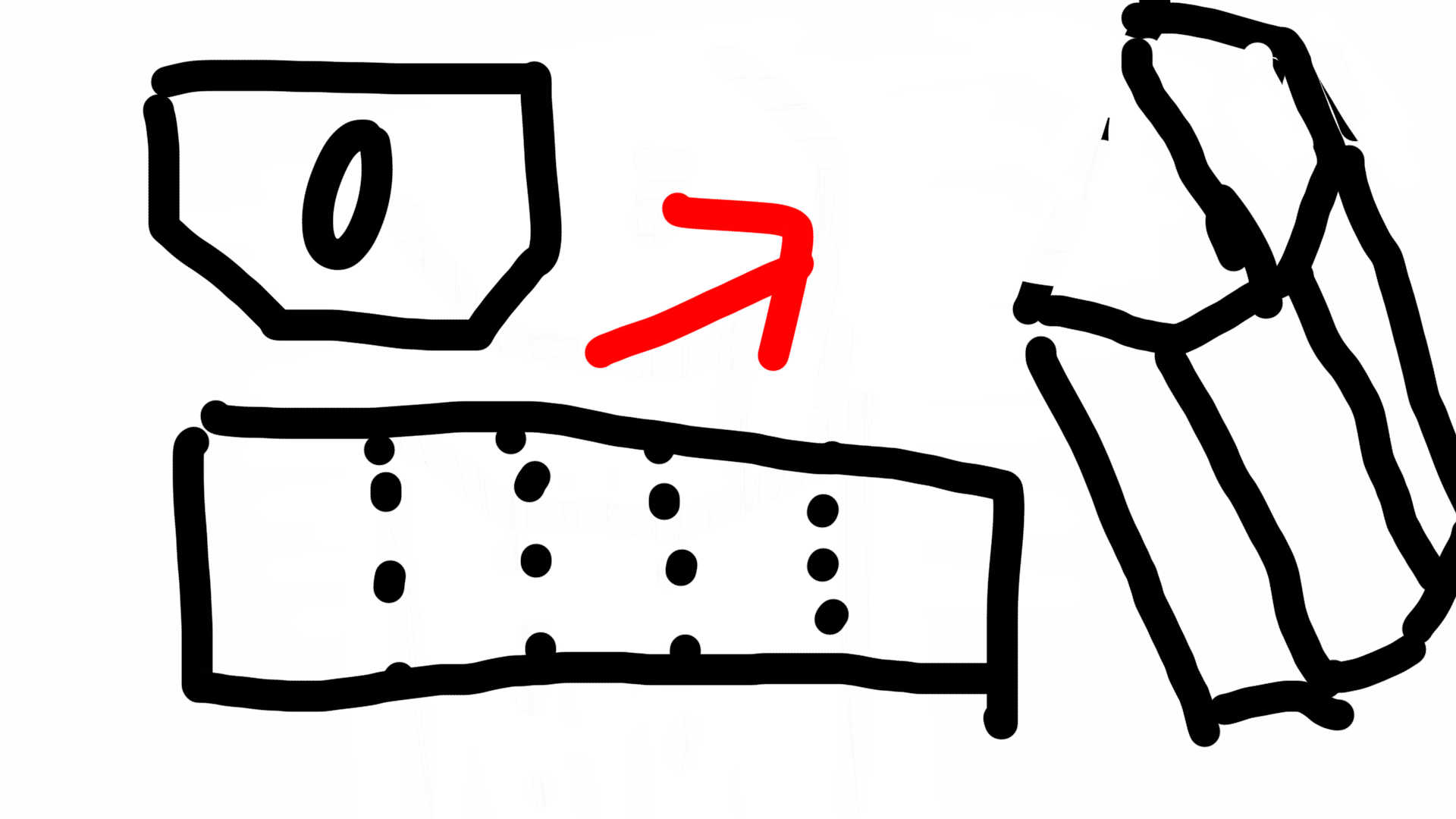

Demonstration to be used as a guidance if your jb welding skills are not great avoid pot holes
No responsibility for landing on the roof loosing 2cv engine or catching fire

Please note
Not to scale
Material grade not specified
Recomend fitting by professional
No warranty


Attachments:
Click to Enlarge
344kb
Click to Enlarge
276.56kb

Edited by Brett on 20th Sep, 2016.

Yes i moved to the darkside *happy*

Instagram @jdm_brett


theoneeyedlizard

User Avatar

7265 Posts
Member #: 1268
The Boom Boom speaker Police!

Essex

20th Sep, 2016 at 02:04:43pm

Haha

In the 13's at last!.. Just

minimox

6 Posts
Member #: 10294
Junior Member

20th Sep, 2016 at 08:15:52pm

thank you for your help and drawing, but I liked measures to avoid losing too much time

D4VE

User Avatar

2975 Posts
Member #: 10749
Post Whore

lowestoft suffolk

20th Sep, 2016 at 08:16:29pm

Leg end!

On 24th Oct, 2015 jonny f said:
Nothing gets past Dave lol

NOTHING GETS PAST ME!! *tongue*

1/4 mile 14.7 @ 96mph 12psi boost
Showdown class A 2nd place 18.6 @ 69mph


Brett

User Avatar

9502 Posts
Member #: 1023
Post Whore

Doncaster, South Yorkshire

22nd Sep, 2016 at 04:58:04am

The point im trying to make
1.. its childs play get a measuring stick and a drawing stick find your self a cave wall and get drawing
2... those that have von sprung durch technik pictures probably invested time and development into it
There are places you can buy them and have them on your door step in a couple days
Would that same person / companys give away von sprung durch technik pictures for free... probably not

Yes i moved to the darkside *happy*

Instagram @jdm_brett


Yo-Han

User Avatar

976 Posts
Member #: 3228
Post Whore

North of the Netherlands

22nd Sep, 2016 at 07:57:49am

https://www.facebook.com/JBFabrication/

Dazed and Confused....
