Hi guys,

I was just dry fitting my head with the conversion kit I'm machining and noticed I have the keys to my K1100 camshaft sprockets missing. The sprockets and cam adapters were bought from SC components. On their website it says that keys are woodruff type, but the ones I have bought from them have a straight keyway, so I'm confused whether the woodruff keys type really fit ?

Thanks in Advance


Sprocket

User Avatar

10923 Posts
Member #: 965
Post Whore

Preston On The Brook

I thought they just used a parallel key.

On 26th Oct, 2004 TurboDave16v said:
Is it A-Series only? I think it should be...
So when some joey comes on here about how his 16v turbo vauxhall is great compared to ours, he can be given the 'bird'...


On 26th Oct, 2004 Tom Fenton said:
Yep I agree with TD........


fastcarl

User Avatar

6917 Posts
Member #: 507
Fastest A Series Mini in the World

leeds/wakefield.

So, specialist components claim to make their own pullies, but appear to still use the awful adapters, the mind boggles sometimes


carl


WWW.FORCE-RACING.CO.UK PLEASE CLICK HERE


Barrieri

219 Posts
Member #: 11231
Senior Member

My concern about the adapters is that the only thing constraining rotation between the camshaft and the adapters is a very small dowel pin. If this snaps under load, the engine will be destroyed in a second.

With regards to the keys, for me they seem to be just the parallel type.


Joe C

User Avatar

11899 Posts
Member #: 565
Carlos Fandango

Burnham-on-Crouch, Essex


a woodruf key seems to apply to any form of ke locking a pulley to a shaft these days, not sure if this was always the case?

theres two reasons SC use the adaptors, for backwards compatability, and the adaptor incorperates a slight oil thrower lip.

in terms of the pin being the only thiong between the cam and adaptor, well this is the case with the std engine and pully, its not somthign you can change unless you start remachining cams. I'd have to check but I'm pretty sure that pin is a hardened pin so shouldnt be giving issues.

On 28th Aug, 2011 Kean said:
At the risk of being sigged...

Joe, do you have a photo of your tool?



http://www.turbominis.co.uk/forums/index.p...9064&lastpost=1

http://s95.photobucket.com/albums/l154/min...2006/?start=all



Barrieri

219 Posts
Member #: 11231
Senior Member

You're probably right Joe about the pin being hardened.

So about the keys, have I understood correctly ? You're saying that the term "woodruff key" applies even to the parallel type key ?


Joe C

User Avatar

11899 Posts
Member #: 565
Carlos Fandango

Burnham-on-Crouch, Essex

Yeah, you are right, there are parallel an woodruf keys, but these days any key seems to get called a woodruff,

And now I'm thinking about that bit in Wayne world with the champagne... Lol

On 28th Aug, 2011 Kean said:
At the risk of being sigged...

Joe, do you have a photo of your tool?



http://www.turbominis.co.uk/forums/index.p...9064&lastpost=1

http://s95.photobucket.com/albums/l154/min...2006/?start=all



Barrieri

219 Posts
Member #: 11231
Senior Member

Hehe xD didn't know what you were talking about for a second, but after a quick search, yeah it fits the description lol

Thanks again for the help, so I'll measure the keyway and buy a suitable one then.


Joe C

User Avatar

11899 Posts
Member #: 565
Carlos Fandango

Burnham-on-Crouch, Essex

pretty sure its a standard size that you can get in strip and then cut to length. possibly 1/8" ( just over 3mm?)

On 28th Aug, 2011 Kean said:
At the risk of being sigged...

Joe, do you have a photo of your tool?



http://www.turbominis.co.uk/forums/index.p...9064&lastpost=1

http://s95.photobucket.com/albums/l154/min...2006/?start=all



Sprocket

User Avatar

10923 Posts
Member #: 965
Post Whore

Preston On The Brook




On 8th Aug, 2017 Barrieri said:
My concern about the adapters is that the only thing constraining rotation between the camshaft and the adapters is a very small dowel pin. If this snaps under load, the engine will be destroyed in a second.

With regards to the keys, for me they seem to be just the parallel type.


I don't use any locating dowels at all. Just the tension in retaining bolts. That's how Ford have done it in the past too.

On 26th Oct, 2004 TurboDave16v said:
Is it A-Series only? I think it should be...
So when some joey comes on here about how his 16v turbo vauxhall is great compared to ours, he can be given the 'bird'...


On 26th Oct, 2004 Tom Fenton said:
Yep I agree with TD........


Richspec

User Avatar

538 Posts
Member #: 300
Post Whore

Cumbria

the pins on my adaptors got butchered by the previous owner so they don't do anything.
So I don't need to buy new adaptors from SC?

Here for the craic..

A series powered again.


Joe C

User Avatar

11899 Posts
Member #: 565
Carlos Fandango

Burnham-on-Crouch, Essex

True it's not going anywhere with that m10 bolt done up, as long as it's done up!

That said I hate pulleys that don't have a key or mark to line them up, vaxhaul used to do this in their 8 v engines, and to time them back in you had to measure the lobes... Which were prone to wear.... Basically passing into the wind.

On 28th Aug, 2011 Kean said:
At the risk of being sigged...

Joe, do you have a photo of your tool?



http://www.turbominis.co.uk/forums/index.p...9064&lastpost=1

http://s95.photobucket.com/albums/l154/min...2006/?start=all



Barrieri

219 Posts
Member #: 11231
Senior Member

So the tension in the bolts got that enough force to drive the cams ? @Sprocket.

I've seen setups like that but, the shaft is usually tapered in such case.


Sprocket

User Avatar

10923 Posts
Member #: 965
Post Whore

Preston On The Brook

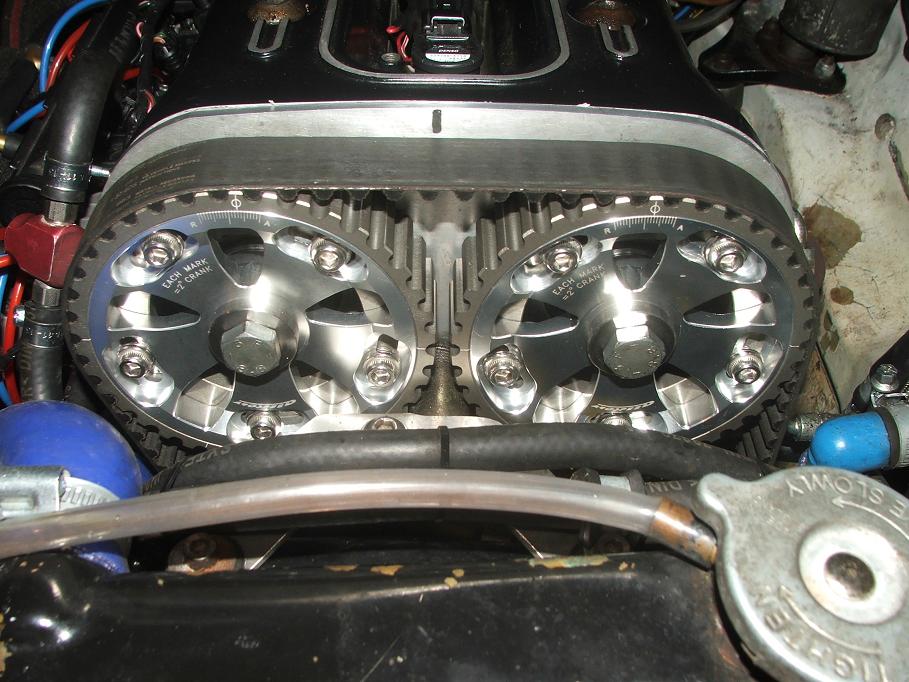

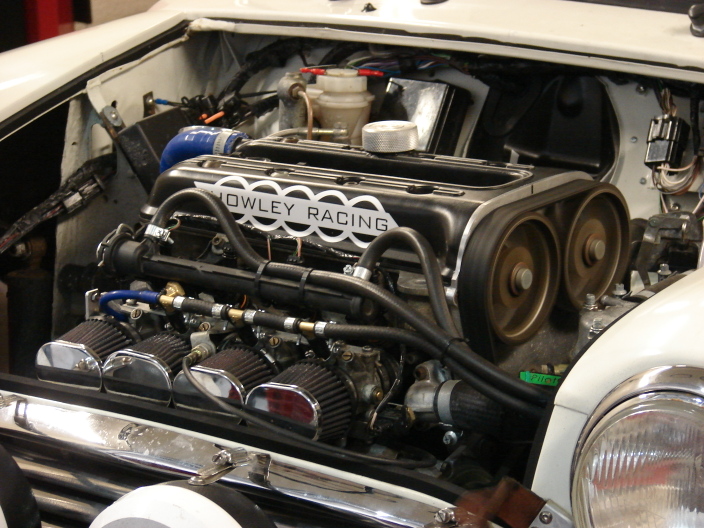

Cant comment on the SC stuff on the dimensional aspect of just using the tension of the bolt to hold things in place, but i had my original development kit with Ford pulleys and steel adapters up to 8k rpm no bother. The Force Racing pulleys are based on this design but 'one piece' centres doing away with the necessity of any sort of adapter.

Evolution of pulleys from the original concept using the Ford pulleys, through the keyed adapter much like the SC ones, to the 'one piece' Force Racing pulleys. Incidentally, all three of these pulleys included an O ring seal designed into them to ensure oil never leaks past, which was not always the case with the SC pulleys.


On 26th Oct, 2004 TurboDave16v said:
Is it A-Series only? I think it should be...
So when some joey comes on here about how his 16v turbo vauxhall is great compared to ours, he can be given the 'bird'...


On 26th Oct, 2004 Tom Fenton said:
Yep I agree with TD........


Sprocket

User Avatar

10923 Posts
Member #: 965
Post Whore

Preston On The Brook

Incidentally, those 'generic' vernier pulleys everyone is keen on using have a shit tooth profile. Its not even close to the original OEM pulleys, or the belt for that matter.

Edited by Sprocket on 9th Aug, 2017.

On 26th Oct, 2004 TurboDave16v said:
Is it A-Series only? I think it should be...
So when some joey comes on here about how his 16v turbo vauxhall is great compared to ours, he can be given the 'bird'...


On 26th Oct, 2004 Tom Fenton said:
Yep I agree with TD........


Barrieri

219 Posts
Member #: 11231
Senior Member

Yeah, the pulleys I bought from SC has the O-ring incorporated in the shoulder of the bolt.


TurboDave16V
Forum Mod

10633 Posts
Member #: 17
***16***

SouthPark, Colorado

I have to ask, where is this O ring location on the force pulleys? Ive sketched up a design for, and was literally this week going to machine mine to take a large X-section hydraulic ring seal.

On 17th Nov, 2014 Tom Fenton said:
Sorry to say My Herpes are no better


Who remembers this first time around: https://www.youtube.com/watch?v=JF0a5aoEGsw


Sprocket

User Avatar

10923 Posts
Member #: 965
Post Whore

Preston On The Brook




On 9th Aug, 2017 TurboDave16V said:
I have to ask, where is this O ring location on the force pulleys? Ive sketched up a design for, and was literally this week going to machine mine to take a large X-section hydraulic ring seal.


It 'should' be in the front of the pulley bolt hole.

On 26th Oct, 2004 TurboDave16v said:
Is it A-Series only? I think it should be...
So when some joey comes on here about how his 16v turbo vauxhall is great compared to ours, he can be given the 'bird'...


On 26th Oct, 2004 Tom Fenton said:
Yep I agree with TD........


Sprocket

User Avatar

10923 Posts
Member #: 965
Post Whore

Preston On The Brook

Originally in the end of the cam adapter when using the generic keyed pulleys.


Attachments:

Edited by Sprocket on 9th Aug, 2017.
