Due to an impending upgrade, I am selling my complete injected turbo system.

4000, will not split.

The engine has covered approximately 500 miles since building, and is still in the car.

You could not build an engine/box of this spec for the price, you certainly couldn't have one built!
The head alone would cost circa 1250 from MED.

>> Will consider a PX for another A+ engine & box, preferably 1380.
Cash on collection, based near Derby/ Donington Park.
No warranty given or implied.

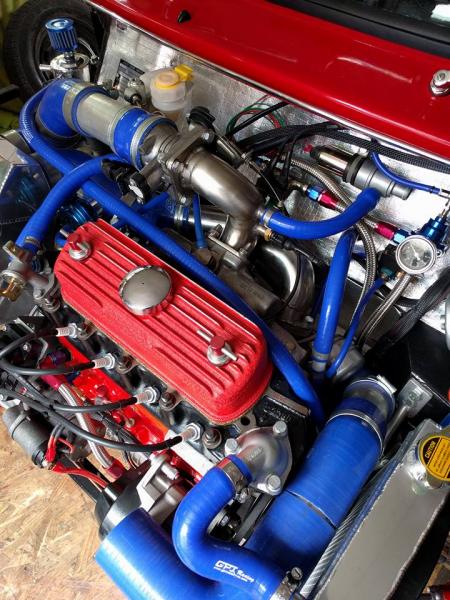

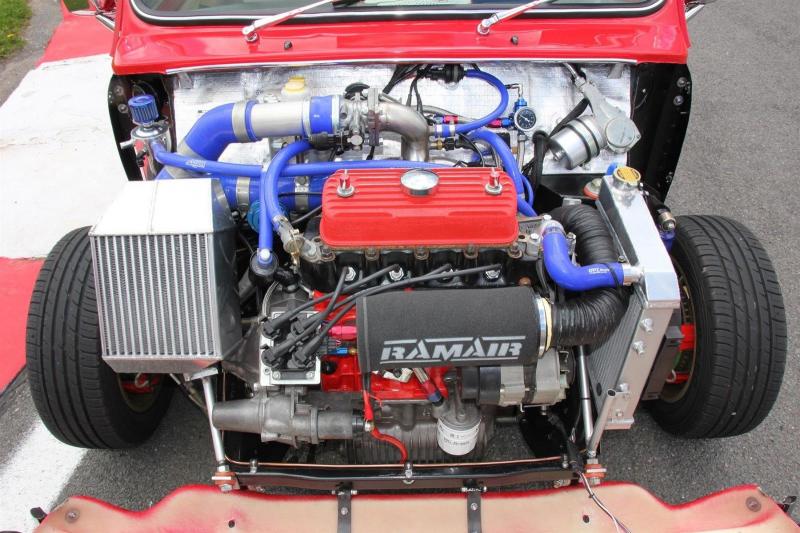

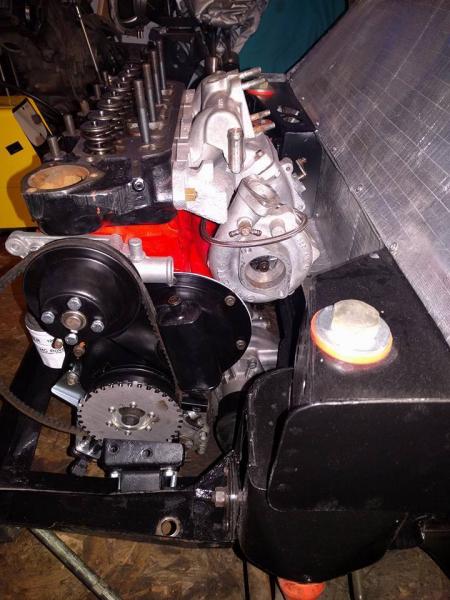

- 1310cc A+ Metro turbo block, acid stripped, refaced and rebored, new cam bearings, quality paint.
- +0.040" OMEGA cast pistons 10.5cc dished, machined and supplied by Avon Bar
- Avon Bar Phase 2 Cam & followers

- Duplex vernier timing gear.
- MED "FIS" Forced induction special Cylinder head (36/32mm valves & serious porting)
- 8.5:1 CR
- Garrett T3 Metro Turbo
- Complete custom injection manifold, 2x Bosch green giant 440cc injectors
- 48mm DeLlorto throttle body
- Renault 5 Turbo intercooler and BOV
- TVR Chimaera foam air filter
+ all ancillaries except radiator

- 2.5" turbo-back custom stainless exhaust (Centre exit)

- Metro Turbo box, rebuilt with...
- MED "Clubman" Straight cut gearset (helical drops)
- MED X-Pin diff
- AP solid racing clutch (Verto)
- 3.2:1 final drive

- Microsquirt ECU, all sensors & trigger wheel
- Start-idle-air valve
- EDIS ignition (no Distributor)
- Electronic boost controller
- Bosch Wide-band Lambda sensor + Spartan controller

"If its not broke, whack a turbo on it"


1 Posts
Member #: 11883
Junior Member

Is this still for sale?

Turbo Phil

User Avatar

4409 Posts
Member #: 20
My sister is so fit I won't show anyone her picture

Lake District

Pretty sure he split it and sold most of the bits off.
