| Home > General Chat > Looking for Photos / Drawing of metro turbo unit. | |||||||
|
5 Posts Member #: 717 Junior Member |
18th Oct, 2005 at 01:09:41pm
Hi, im looking for any technican drawings or photos of the metro turbo engine. Want an idea of pipework and general setup as iv never actually seen one before...apart from in the car with bonnet open, etc. |
||||||
|
Site Admin  15300 Posts Member #: 337 Fearless Tom Fenton, Avon Park 2007 & 2008 class D winner & TM legend. |
18th Oct, 2005 at 01:18:10pm
Metro haynes manual is a great source of info/pictures/schematics.
On 29th Nov, 2016 madmk1 said:
On 28th Nov, 2016 Rob Gavin said:
I refuse to pay for anything else Like fuel 😂😂 |
||||||
|
5 Posts Member #: 717 Junior Member |
18th Oct, 2005 at 01:35:00pm
ah yes, that would make sense. Cheers for the good idea :) |
||||||
|
Forum Mod 10980 Posts Member #: 17 ***16*** SouthPark, Colorado |
18th Oct, 2005 at 01:37:34pm
Or do a search in the FAQ section of this very site for diagrams. On 17th Nov, 2014 Tom Fenton said:
Sorry to say My Herpes are no better Ready to feel Ancient ??? This is 26 years old as of 2022 https://youtu.be/YQQokcoOzeY |
||||||
 71 Posts Member #: 529 Advanced Member Stoke-On-Trent |
18th Oct, 2005 at 09:55:47pm

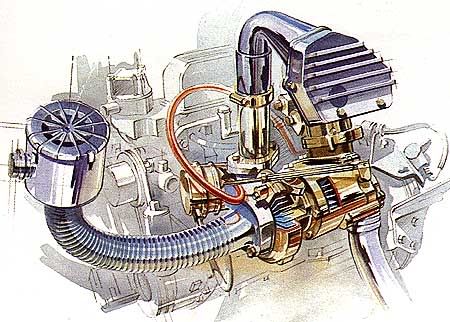

Just 2 pics i happen to have
|
||||||
|
Site Admin  6293 Posts Member #: 1 The boring bloke who runs this place. Berkshire |
18th Oct, 2005 at 09:57:42pm
Nice one, Martin! |
||||||
|
5 Posts Member #: 717 Junior Member |
20th Oct, 2005 at 02:10:59pm
do they not have intercoolers then? |
||||||
|
Forum Mod 10980 Posts Member #: 17 ***16*** SouthPark, Colorado |
20th Oct, 2005 at 02:12:58pm
LOL!
On 17th Nov, 2014 Tom Fenton said:
Sorry to say My Herpes are no better Ready to feel Ancient ??? This is 26 years old as of 2022 https://youtu.be/YQQokcoOzeY |
||||||
|
Forum Mod 10980 Posts Member #: 17 ***16*** SouthPark, Colorado |
20th Oct, 2005 at 02:13:51pm
oh - you were joking weren't you??? On 17th Nov, 2014 Tom Fenton said:
Sorry to say My Herpes are no better Ready to feel Ancient ??? This is 26 years old as of 2022 https://youtu.be/YQQokcoOzeY |
||||||
 12307 Posts Member #: 565 Carlos Fandango Burnham-on-Crouch, Essex |
20th Oct, 2005 at 02:14:40pm
Love the impelers in the top pic! On 28th Aug, 2011 Kean said:
At the risk of being sigged... Joe, do you have a photo of your tool? http://www.turbominis.co.uk/forums/index.p...9064&lastpost=1 https://joe1977.imgbb.com/ |
||||||
 2521 Posts Member #: 417 Post Whore Swindon |
20th Oct, 2005 at 02:46:17pm
On 20/10/2005 14:10:59 Add_Gee said:
do they not have intercoolers then? Yeah they got fins on the back of the plenium
|
||||||
|
Forum Mod 10980 Posts Member #: 17 ***16*** SouthPark, Colorado |
20th Oct, 2005 at 02:59:12pm
On 20/10/2005 14:46:17 Dangerous said:
Yeah they got fins on the back of the plenum Ha ha ha! Poor Mans intercooler!!!
On 17th Nov, 2014 Tom Fenton said:
Sorry to say My Herpes are no better Ready to feel Ancient ??? This is 26 years old as of 2022 https://youtu.be/YQQokcoOzeY |
||||||
