Mounting turbo over flywheel housing?
Turbo Mini Forums

I'm contemplating locating a metty T3turbo over the flywheel housing on my mini, because I have a Mk1 and don't want to cut the bulkhead. I know that I could use a mirage manifold and T2 but i'm trying to do it on a budget!

I was thinking about, and a cast turbo manifold, fabricating a flange to bolt up to this, and then using a 2" pipe to take the exhaust gasses to the turbo. I would then have to fabricate a replacement for the exhaust elbow and take the exhaust back down the usual exit route behind the block.
The only problem that I can see with doing this is with the turbo oil return, as it would have to be quite long?

Anybody done anythink similar? I have seen pictures of the Janspeed set up, and would be greatful for any pictures of the exhaust set up. Turbo Phil, don't you have one? Any chance of some snaps?

Cheers,

Choppo

Hannibal: There are two ways we can do this: the easy way and the hard way. In a few minutes my friends and I are going to come down on you like your worst nightmare. You're gonna wish the Earth had opened up and swallowed you whole.
bad guy: What's the easy way?
Hannibal: That WAS the easy way.

Yeah I would like to see some pics of a setup like this also...

http://mini.twisted-design.net/blog/

Sorry, I've posted this twice in different sections. Its because the TM webpages keeps returning an error!

Chops

Hannibal: There are two ways we can do this: the easy way and the hard way. In a few minutes my friends and I are going to come down on you like your worst nightmare. You're gonna wish the Earth had opened up and swallowed you whole.
bad guy: What's the easy way?
Hannibal: That WAS the easy way.

Why would the oil return be long,just drill a hole closest place and the oil will find its own way back to the sump.

Metro turbo weekend driver,Mini turbo in the making again!

That's my plan, too! I'll be able to post pics, but it will probably be a while...

**************************************
1967 Cooper 's' Turbo build @ www.drjing.com

I have done this and is up and running i will post some pictures very soon

Here for the craic..

Supercharged Arden powered

Now thats got me thinking.. what a neat install on both cars..

I take it its a make your own manifold thing.

Two things are infinite: the universe and human stupidity; and I'm not sure about the the universe.

Do it karl

you know you want to

I'm sure you'll do a crackin job

Mike (silver mini) sure does a nice install. This guy is a real enthusiast - I don't think anyone has tried as many turbos and combinations as he has - let alone the boost pressures he's seen!


I'm going to run a new manifold for '06. It's all part of the EFI project - the stock cast-iron one is causing me too many issues with getting the inlet and injector position that I ideally want.
Also, the stock inlet manifold won't allow me to fit dual O2 sensors easilly.

I'm going to have something built with equal-length runners, but keeping the turbo in the same (ish) location as it is currently. A guy from work is probably going to do it for me, so won't be a rush job i suspect!

Edited by turbodave16v on 18th Nov, 2005.

here's another...

This is a good post. When it's done it's course, I'll move it to the FAQ / Knowledge forum...

Wow! Thanks for the great replies guys, some fantastic pics too!

Have the manifold (exhaust) been based on LCB's or are they hand fabricated from scratch?

What do you think of my idea use a cast iron manifold etc as per my first post?

Chops

Edited by Choppo on 19th Nov, 2005.

Hannibal: There are two ways we can do this: the easy way and the hard way. In a few minutes my friends and I are going to come down on you like your worst nightmare. You're gonna wish the Earth had opened up and swallowed you whole.
bad guy: What's the easy way?
Hannibal: That WAS the easy way.

I'd say the cast manifold and adapter idea is a good one. By using the cast bit close to the head (where it is hottest) rather than a fabrication, you get away from problems of thermal expansion causing fabrications/welds to crack and distort.

Here's a couple of the Janspeed one.

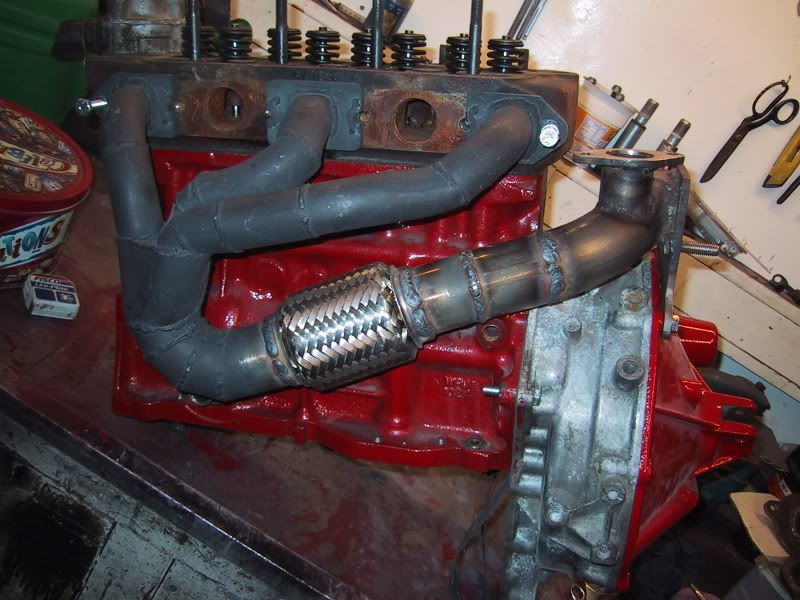

As regards Mikes manifolds, he made them completely from sratch using stainless exhaust tubing, which were bent my a local exhaust place. The first year they were fitted he had problems with the flanges trying to pull away from the head face, he has since fitted a "bellows" in each runner and the problems have gone. This thing runs cherry red on every outing and has not cracked, credit to the lad. If you need to know any more i can find out for you has he's my best mate and lives opposite me.

Phil.

WWW.TURBO-MINI.COM

why doesnt mike come on here much?

ill never talk about your sister again if you give me that janspeed engine

is mike the chap with the silver mini?

Hannibal: There are two ways we can do this: the easy way and the hard way. In a few minutes my friends and I are going to come down on you like your worst nightmare. You're gonna wish the Earth had opened up and swallowed you whole.
bad guy: What's the easy way?
Hannibal: That WAS the easy way.

WWW.TURBO-MINI.COM

This might help. I made one a while back just never put it to good use.

Two things are infinite: the universe and human stupidity; and I'm not sure about the the universe.

Phil, by bellows, do you mean like this jobber:



I have some questions that you could ask mike:

what size pipes did he use, what turbo is that (just out of interest!) and did he retain the clutch slave cylinder in its original position?

Cheers chap :cool:

Edited by SumpNut on 20th Nov, 2005.

Hannibal: There are two ways we can do this: the easy way and the hard way. In a few minutes my friends and I are going to come down on you like your worst nightmare. You're gonna wish the Earth had opened up and swallowed you whole.
bad guy: What's the easy way?
Hannibal: That WAS the easy way.

He's not around at the mo to ask about the pipe size, but yes that is what i mean about bellows, he also used one in each runner and a big one like you pictured in the collector.
Turbo is from a 6 cylinder tractor motor ! lol, but seems to produce the goods, when it goes it certainly goes !!
Clutch cylinder is mounted on the back of the block, as per Janspeed.

Phil.

WWW.TURBO-MINI.COM

Help me out here please... are either the red clubman or the silver car intercooled? The silver car looks like it could be with the blue pipe coming up from behind the grille.

The red car... is that an oil cooler off to the right side in the front?

Still kinda new at the whole turbo game. Something like this would be a strong contender in my upcoming engine build.

Those are very neat installations, but there is one drawback (certinally from my point of view) and that is weight and corner weights.

The Metty turbo set-up certinally uses the least ammount of exhaust (although the manifold is a bit weighty). but putting the turbo over the flywheel would bugger up my corner weights even more.

Getting it even across the front is hard enough with a lardy driver perched on one side, never mind the turbo.

The turbo sat that high isn't good for the CG either.

Probably not worth thinking about too much for a road car, but it was the first thing that struck me.

Wil

Fastest 998 mini in the world? 13.05 1/4 mile 106mph

Err...the turbo isn't made out of granite, is it? :) I'm thinking it wouldn't add alllll that much weight. Hell, I weigh 280lbs so trying to get the front even is out the window.

Wil is a racer - you can't change that!
