On 23/05/2006 21:55:39 TurboDave said:

http://www.netsnapshot.com./pcw/buildalbum...=2&ACCOUNT=4541

1) Cut off studs.
2) linish manifold face flat
3) Purchase adaptor plate off Jimster
4) Wait 3 months for him to get round to posting it
5) Upon arrival, place on manifold in orientation shown in above pics
6) Mark out holes for the T2 bolt pattern on the manifold
7) Drill and tap the holes M8
8) Purchase Stainless M8 Studding, a pack of M8 stainless nuts and washers from Screwfix.com
9) Wind studding into manifold
10) cut off studding to appropriate length
11) wind some nuts down the studs and hold the plate securely to the manifold
12) Port the plate and manifold to promote decent flow into the small T2 opening. Remove plate and port 'back' the port dividers if needed.
13) Trial fit turbo.
14) If it's off the R5GT, you need to remove two studs and open the holes out to M8 clearance holes (9mm). You also need to make room for a nut on the tighter corner (this'll become obvious).
15) mount actuator, downpipe, water, plumbing, etc....


Edited by Tom Fenton on 23rd May, 2006.


On 29th Nov, 2016 madmk1 said:


On 28th Nov, 2016 Rob Gavin said:
I refuse to pay for anything else


Like fuel 😂😂


Nick
Forum Mod

User Avatar

4823 Posts
Member #: 154
Post Whore

Midlands

any chance someone could make the piccies link work again please? or mail em to me and i'll host em.

On 20th Oct, 2015 Tom Fenton said:

Well here is the news, you are not welcome here, FUCK OFF.


Jimster
Site Admin

User Avatar

9392 Posts
Member #: 58
455bhp per ton
12 sec 1/4 mile road legal mini

Sunny Bridgend, South Wales

please make that 2 months and not 3! my distibution has been improved!

Team www.sheepspeed.com Racing

On 15th May, 2009 TurboDave said:

I think the welsh one has it right!


1st to provide running proof
of turbo twinkie in a car and first to
run a 1/4 in one!!

Is your data backed up?? directbackup.net one extra month free for all Turbo minis members, PM me for detials


JT

User Avatar

2742 Posts
Member #: 637
Post Whore

Hertfordshire

yes i can say jimster has improved his distibution!!
could the pics be posted up again please or have they gone for ever?

cheers
josh

My build thread..

http://www.turbominis.co.uk/forums/index.php?p=vt&tid=542985


TurboDave16V
Forum Mod

10967 Posts
Member #: 17
***16***

SouthPark, Colorado

Pics seem to be gone forever. A little annoying, as all the other pics - including the BMC diesel A-series tractor have gone aswell :(

On 17th Nov, 2014 Tom Fenton said:
Sorry to say My Herpes are no better


Who remembers this first time around: https://www.youtube.com/watch?v=JF0a5aoEGsw


JT

User Avatar

2742 Posts
Member #: 637
Post Whore

Hertfordshire

bugger
im sure it will all seem obviouse when i come to mod the manifold following the instructions!?

cheers
josh

My build thread..

http://www.turbominis.co.uk/forums/index.php?p=vt&tid=542985


Turbo Phil

User Avatar

4590 Posts
Member #: 20
My sister is so fit I won't show anyone her picture

Lake District

I have some pics of the one i did ? Shall i post them ?

Phil.

WWW.TURBO-MINI.COM


TurboDave16V
Forum Mod

10967 Posts
Member #: 17
***16***

SouthPark, Colorado

Yes. You shall.

And you will.

On 17th Nov, 2014 Tom Fenton said:
Sorry to say My Herpes are no better


Who remembers this first time around: https://www.youtube.com/watch?v=JF0a5aoEGsw


Turbo Phil

User Avatar

4590 Posts
Member #: 20
My sister is so fit I won't show anyone her picture

Lake District

Credit must go to our very own Turbodave who i believe was the person who initially came up with this idea. *wink*

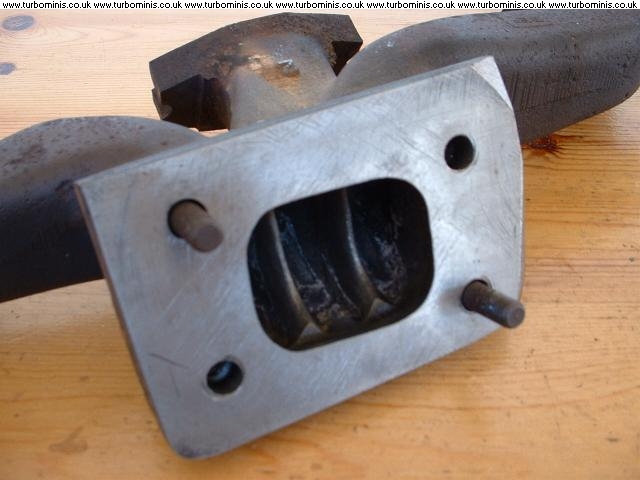

Pic 1.
