was having a turbo mini related think on the throne yesterday and i came up with another way to mount the turbo with out cutting up the bulkhead cross member

i was thinkin if you have the exhaust pipes exit horizontal from the head you can put the turbo above the cross member and save cuttin it up
so that means the 2 side pipes would exit at an angle inwards to meet behind the carb and the middle one would probably have to curve under the carb to meet them in the middle

you would still have to put in one of those air boxes meant for double webers but methinks you wont lose as much strength as if you cut the crossmember

sorry but i seem to have lost paint and cant do a quick diagram

BTW i wont be trying this on my car as its already got the bulkhead box cut into it.just thought i d put it past you guys. maybe someone can use it


so go ahead,shoot me down*happy*

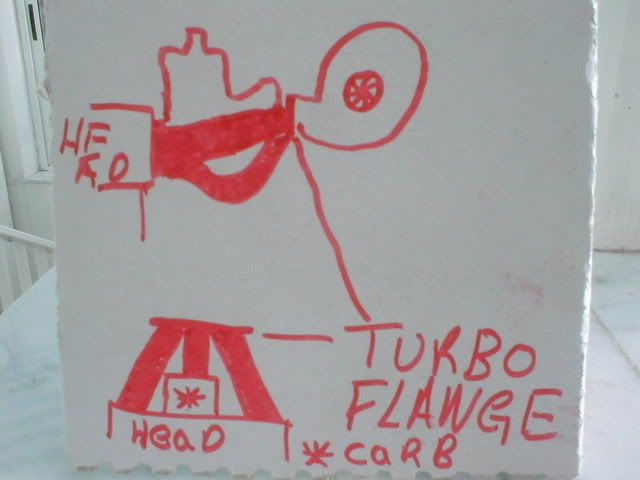

came up with a kwik pik
hope it doesnt confuse you more

Edited by Lone Wolf on 19th Jun, 2007.

Warning:Stig in Training


The Turbocharger:God's Finest Minute

miniminor63

User Avatar

1849 Posts
Member #: 672
The oversills police

Oslo, Norway

19th Jun, 2007 at 05:58:42pm

It would be difficult to get the pipe under the carb I think?

Lone Wolf

User Avatar

146 Posts
Member #: 1092
Advanced Member

Yours from the Funny Farm

19th Jun, 2007 at 06:14:43pm

i have no idea Andre
i havent measured or anything
just had a think

Warning:Stig in Training


The Turbocharger:God's Finest Minute

Jason G

User Avatar

4360 Posts
Member #: 1459
En-suite user

Braintree, Essex

19th Jun, 2007 at 07:21:00pm

is there enough room behind the clocks bulkhead area?

On 19th Jan, 2010 wil_h said:
I would start the furthest place from the finish.


On 24th Mar, 2012 apbellamy said:
I feel all special knowing that I've given your mum my wood.


Been neglecting Turbo'd 'A' series..............

Bat

User Avatar

4559 Posts
Member #: 786
Post Whore

Bermingum

19th Jun, 2007 at 07:49:40pm

Hi,
That's a good drawing for bog roll! *wink*
Cheers,
Gavin :)

VEMs Authorised Installer / Re-seller. K head kits now available!

WB/EGT gauges. Click here for customers write-up

Visit www.doyouneedabrain.co.uk

My Mini build diary


Ben H

User Avatar

3329 Posts
Member #: 184
Senior Member

Melton Mowbray, Pie Country

19th Jun, 2007 at 09:08:18pm

This has been sort of done before..... This is a suck through though. I am sure I have seen a blow through before though.

http://cgi.ebay.co.uk/Austin-MG-and-Metro-...1QQcmdZViewItem

http://www.twin-turbo.co.uk
http://www.hillclimbandsprint.co.uk/default.asp

A man without a project is like a like a woman without a shopping list.

Lone Wolf

User Avatar

146 Posts
Member #: 1092
Advanced Member

Yours from the Funny Farm

20th Jun, 2007 at 03:02:59pm

milamber i dont think it would fit. youd probably have to install one of those boxes they use for webers

Warning:Stig in Training


The Turbocharger:God's Finest Minute

MINI THRASHA

13 Posts
Member #: 1789
Member

New zealand

21st Jun, 2007 at 09:17:51am

I AM ABOUT TO DO A SIMILAR SETUP HAVING A SUCKTHROUGH CARBSO I CAN MOUNT CARB OFF TO THE SIDE

MINI King of the road

Tom Fenton
Site Admin

User Avatar

15300 Posts
Member #: 337
Fearless Tom Fenton, Avon Park 2007 & 2008 class D winner

&

TM legend.

Rotherham South Yorkshire

21st Jun, 2007 at 10:06:32am

Please stop SHOUTING.


On 29th Nov, 2016 madmk1 said:

On 28th Nov, 2016 Rob Gavin said:
 I refuse to pay for anything else


Like fuel 😂😂
