K1100 16V Turbo build...now transmission build.
Turbo Mini Forums

Here's the progress of my K build so far, still in early days but I seem to be making progress now, had a few hours in the machine shop this week apart from that just been doing odds and sods in my lunch break at work (with extremely limited tools..lol).

As you may see I made the schoolboy error of starting to take the valves out one day then leaving it a couple of weeks to do the rest...all the lettering is messed up lol..sshould make putting the cam buckets in fun

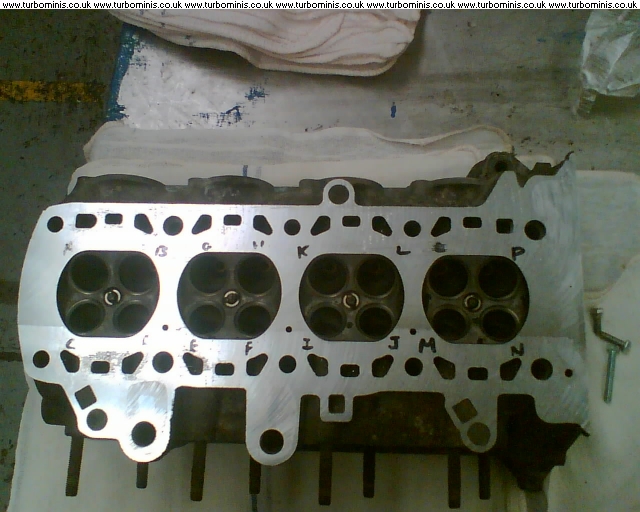

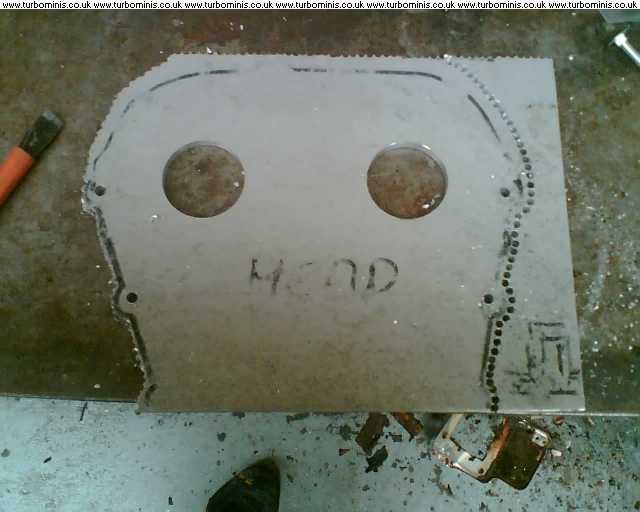

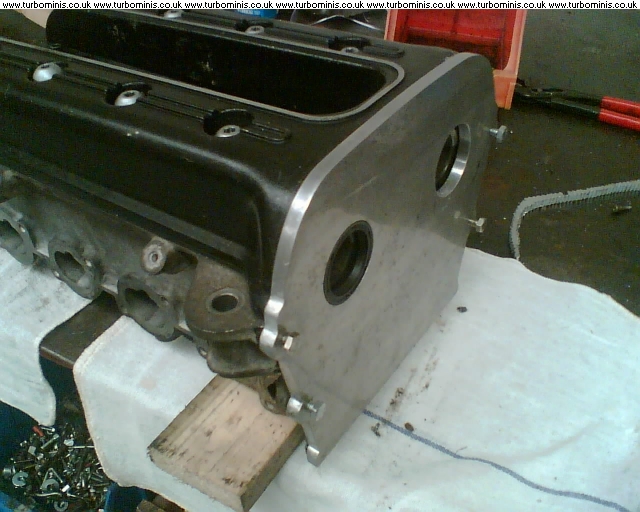

This is the head sealing plate. It took a while to file, still needs a bit more work and importantly polish. :)

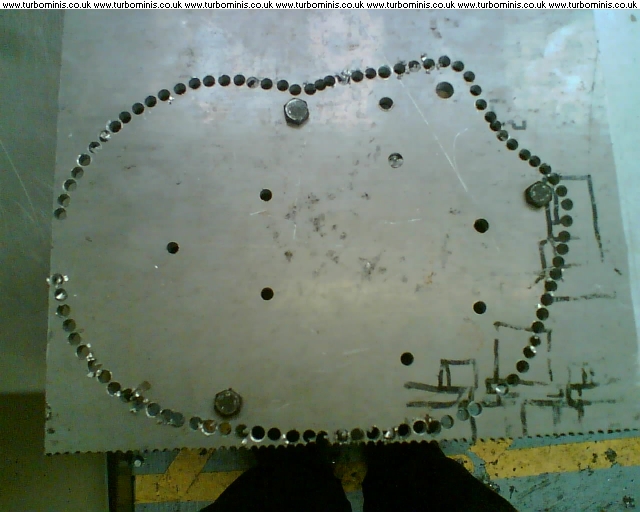

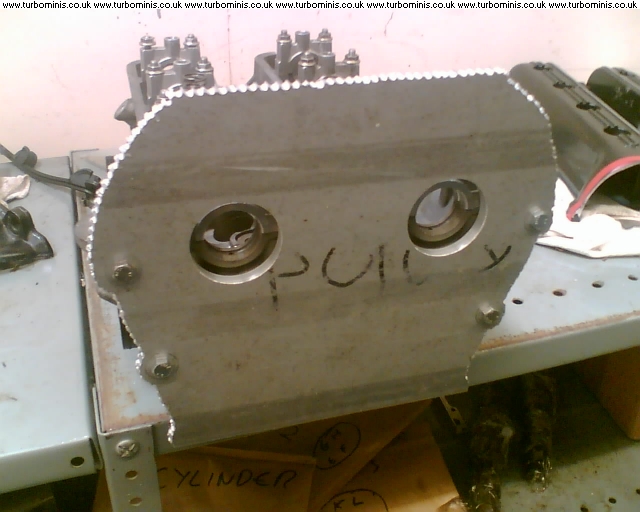

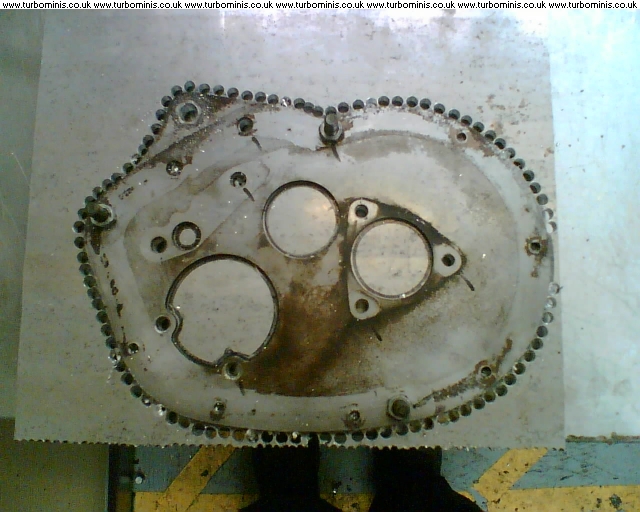

I couldn't think for the life of me how to sort the bottom plate out so, thought this was the easiest way. I still need to put the plates on a dividing head to put some holes in them to mount them to the back plate.

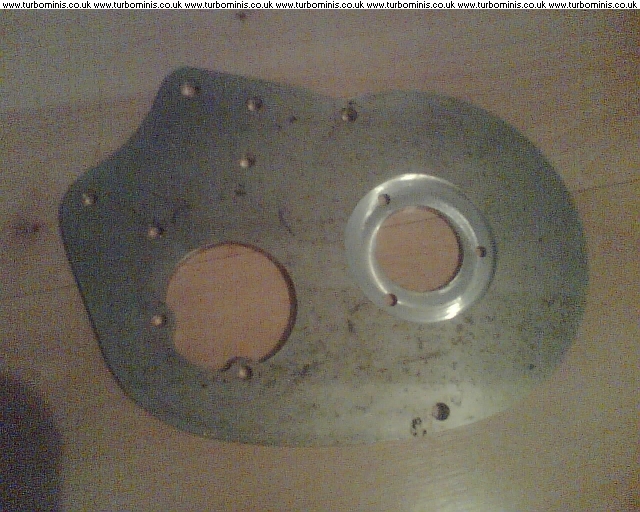

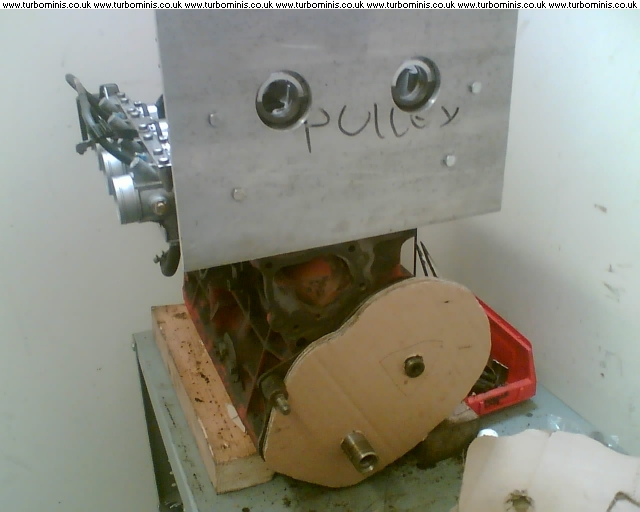

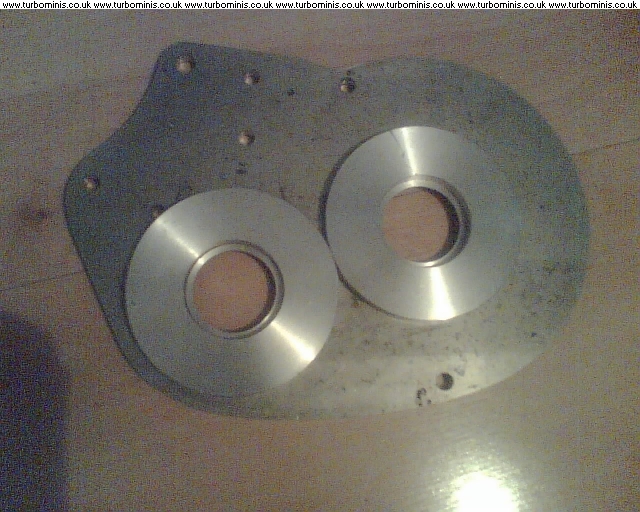

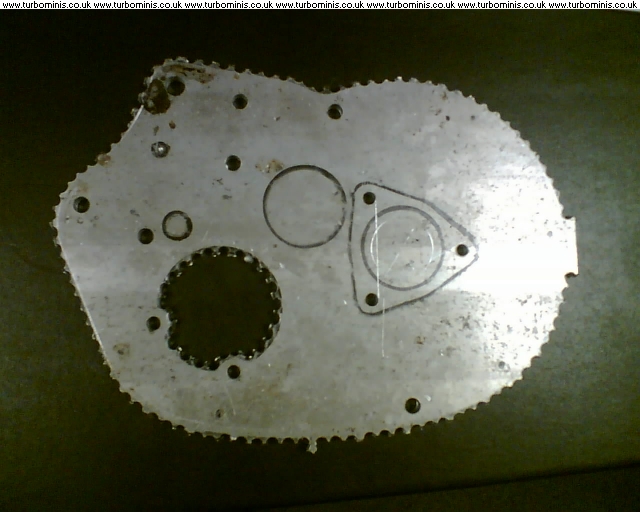

This is the build as of today (at lunch..lol). I managed to finish the machining on the bottom timing plate today so that can now be fitted. The crank pulley is in the mill just needs a few more skins off the teeth to sort the pitch out.

Edited by matty on 19th Sep, 2011.

https://www.facebook.com/pages/Fusion-Fabri..._homepage_panel

www.fusionfabs.co.uk



1/4mile in 13.2sec @ 111 terminal on 15psi

Hi,
That's looking good :)
Cheers,
Gavin :)

VEMs Authorised Installer / Re-seller. K head kits now available!

WB/EGT gauges. Click here for customers write-up

Visit www.doyouneedabrain.co.uk

My Mini build diary

Looks good mate!!
Did you do all the filing by hand?
Planning on doing a similar conversion in the near future, may I ask how you lined up the holes for the cam seals?
Also what crank/ cam pulleys are you using?

Hmm not too sure about your way of cuttin out the ally. LOL Finished product looks the part though.
You got no acces to cnc milling machines or a bandsaw atleast?

Back once again like a renegade master

Cheers Gav, it still looks a bit of a mess at the moment, hopefully i'll have the bottom pulley finished next week. It will look a bit more complete then.

Yeah all by hand...took a while.lol

To line up the seals its fairly simple.

1. Drill the holes for the plate. (they aren't symetrical, although the plate very nearly fits eaither way).

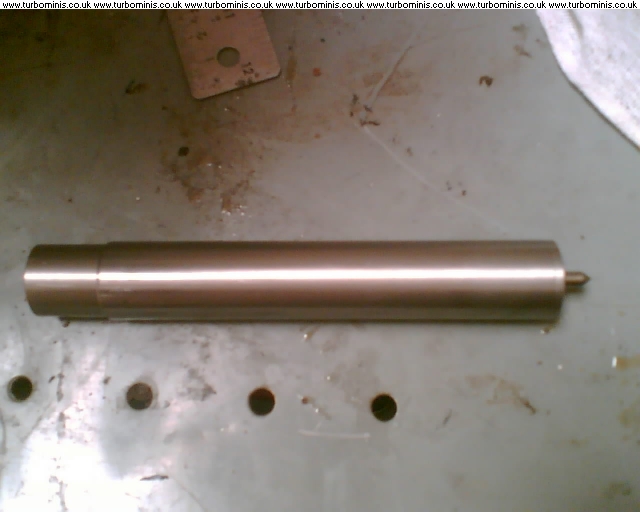

2. Turn a bar down to the same size as the cam bearings (24mm IIRC) with a point on the end.
3. Fit cam bearing caps, nip them up then tap the end of the bar and it marks the plate.

Edited by matty on 3rd Aug, 2007.

https://www.facebook.com/pages/Fusion-Fabri..._homepage_panel

www.fusionfabs.co.uk



1/4mile in 13.2sec @ 111 terminal on 15psi

https://www.facebook.com/pages/Fusion-Fabri..._homepage_panel

www.fusionfabs.co.uk



1/4mile in 13.2sec @ 111 terminal on 15psi

impessed by the fact your doing it all by hand. well done.

no longer a series, but still 1.3 turbo.

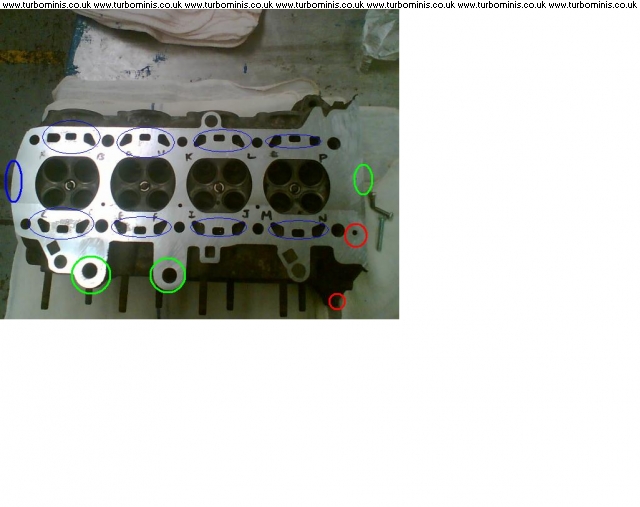

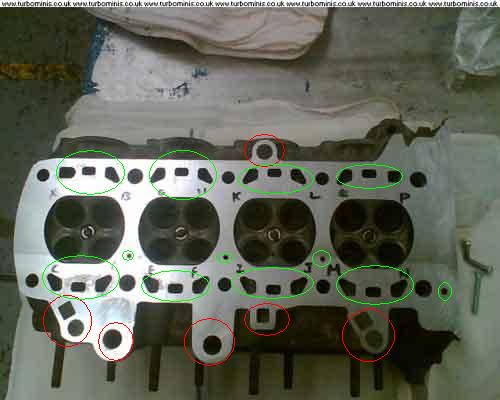

Excuse the noob questions, but in the picture I have attached, I'm sure all green galleries are water, so I asume the red are oil? You seem to have made a few mods to the cyl deck, what have you done there? How you planning on routing the the oil feeds to and from the head? Will be investing in the SC build guide soon.
Cheers,
Greg

Attachments:

38.34kb

Edited by CR# on 2nd Aug, 2007.

Im a noob myself, just learning as I go..lol

Blue is the water
Red oil feed
Green oil return

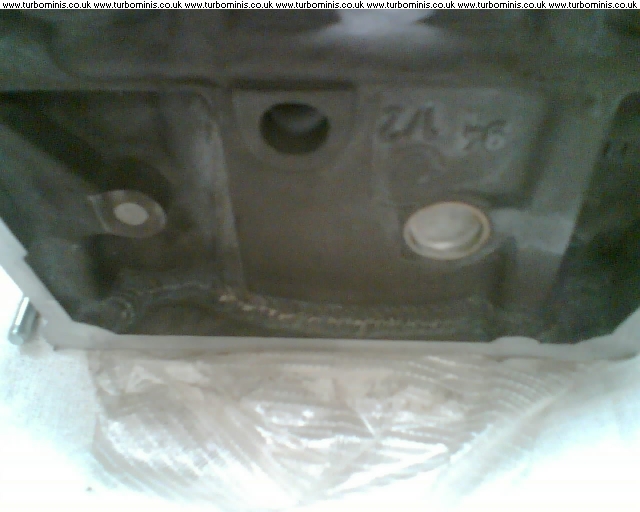

You can see a faint outline where the 2 oil drain holes (green) have been plugged and drilled. The right hand side of the pic you can also see a faint line where the blanking plate has been welded in to seal the head to the end plate.

Edited by matty on 2nd Aug, 2007.

https://www.facebook.com/pages/Fusion-Fabri..._homepage_panel

www.fusionfabs.co.uk



1/4mile in 13.2sec @ 111 terminal on 15psi

Well tbh mate, youre getting more than me done in your lunch break than me. LOL.
I have 15 mins for lunch (proving me self to get pay rise) and so closest im getting to me mini is a cadburys mini roll.

Back once again like a renegade master

minimadj, im to impatiant to wait a few days to get machine access..lol I prefer to just get things done there and then otherwise it ever gets done!

After seeing some valvers at Avon it sparked my enthusiasm again so I decided to strike while the Irons hot. Lol

https://www.facebook.com/pages/Fusion-Fabri..._homepage_panel

www.fusionfabs.co.uk



1/4mile in 13.2sec @ 111 terminal on 15psi

I was impressed with jimsters when he revved off at avon in the paddocks......then imploded. LOL

Back once again like a renegade master

Looking good, I'm going to be taking the easy way out and giving John some of my hard earned pennies.



I really like your front plate, it's got to be even lighter than the ally ones Dave sells.

I know not quite oil tight yet though...phase 2 will be made out of laminated card...can't decide whether to use a weetabix box or corn flakes.. lol

https://www.facebook.com/pages/Fusion-Fabri..._homepage_panel

www.fusionfabs.co.uk



1/4mile in 13.2sec @ 111 terminal on 15psi

good work, ready for avon 08?

It'll be ready for Avon 08 for sure.

Thats why ive started the build now to make sure its ready.

Ive got to try and convince Stuart to build the engine he didn't seem overly keen when I spoke to him.

https://www.facebook.com/pages/Fusion-Fabri..._homepage_panel

www.fusionfabs.co.uk



1/4mile in 13.2sec @ 111 terminal on 15psi

looking good though mate - wish i could get away from work long enough to do some work on mine, but good luck with the rest of the build

Well impressed with all that, I can't even cut a straight line using a hack saw. ask My bro.

Fastest 998 mini in the world? 13.05 1/4 mile 106mph

www.twin-turbo.co.uk

top work matt! I can't wait to see how this project develops. What bottom end is it going on?

Impressed!

Hand built by Matty! It's coming on well mate.

In the 13's at last!.. Just

The bottom end is a turbo block bored to 1293, zetec undercrown oil jets, S rods, reground crank to suit rods, not sure on pistons yet till I measure the head chambers. More than likely accralite 18cc's (the most expensive bit of the build so far)!!

Im plugging the block next week, so should be able to get it over Rob walkers next time im passing by that way!

Edited by matty on 3rd Aug, 2007.

https://www.facebook.com/pages/Fusion-Fabri..._homepage_panel

www.fusionfabs.co.uk



1/4mile in 13.2sec @ 111 terminal on 15psi

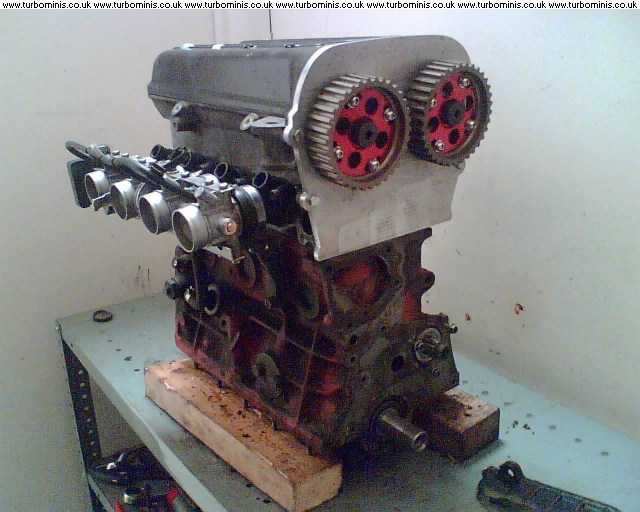

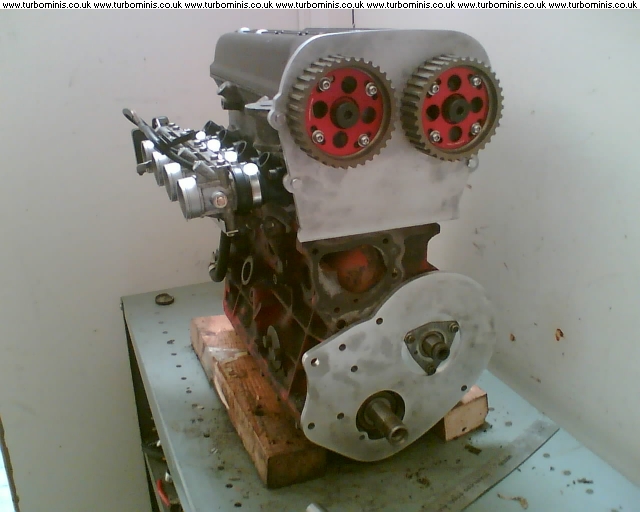

Fitted my timing chain back plate today. Just need to centre the seals and spot through.

https://www.facebook.com/pages/Fusion-Fabri..._homepage_panel

www.fusionfabs.co.uk



1/4mile in 13.2sec @ 111 terminal on 15psi

Top marks!

great results considering the tools available

how about getting the plates anodised?

Anodising would look the nuts not sure how much it costs though?

Ive still got some countersinks to put in etc yet so i'll have a think how to finish them...hmmm

I was thinking of polishing them then laquering, but not too sure if this is sufficient to stop the oxidising?

Edited by matty on 3rd Aug, 2007.

https://www.facebook.com/pages/Fusion-Fabri..._homepage_panel

www.fusionfabs.co.uk



1/4mile in 13.2sec @ 111 terminal on 15psi

if you get a few bits togeter anodising won't be that much,

I had a fuel rail and alloy rad anodised recently, and considering the rad was a PITA both bits were £30. its a bit of a price per batch situation, if you had about8-10 bits of stuff it probably would be about 40-50 quid, compared to 1 bit at around 25....

IMO well woth it though as it makes tha ally SOOOO much more sesistant to scratches and corosion.
