I really don’t like blowing my own trumpet...But.....
We are selling piston sets currently across the world.
Freight to UK is $65AUD (approx $28 pounds) each set but this could be discounted if multiple piston sets where purchased.

Have a look at our piston range at:
http://www.minisport.com.au
We have even more sets including 998+080/100 plus more

I don’t think we have too much else (maybe some exclusive Australian bits) to offer you as the freight is a bit of a killer, but have a look you may be surprised.

Email me with any queries

Andrew@Minisport, South Australia
Ph: 08-8177-1275
Skype: minisport.au

www.minisport.com.au
sales@minisport.com.au

i have asked ANDY to come on here and sell his wares for the benifit of all of us

as we know some peeps are getting great results with these pistons on here

Wil-h to name one guy and a set shipped are under £90

ok on the big bore ones they need machining for bigger cc but the end results the same

steve

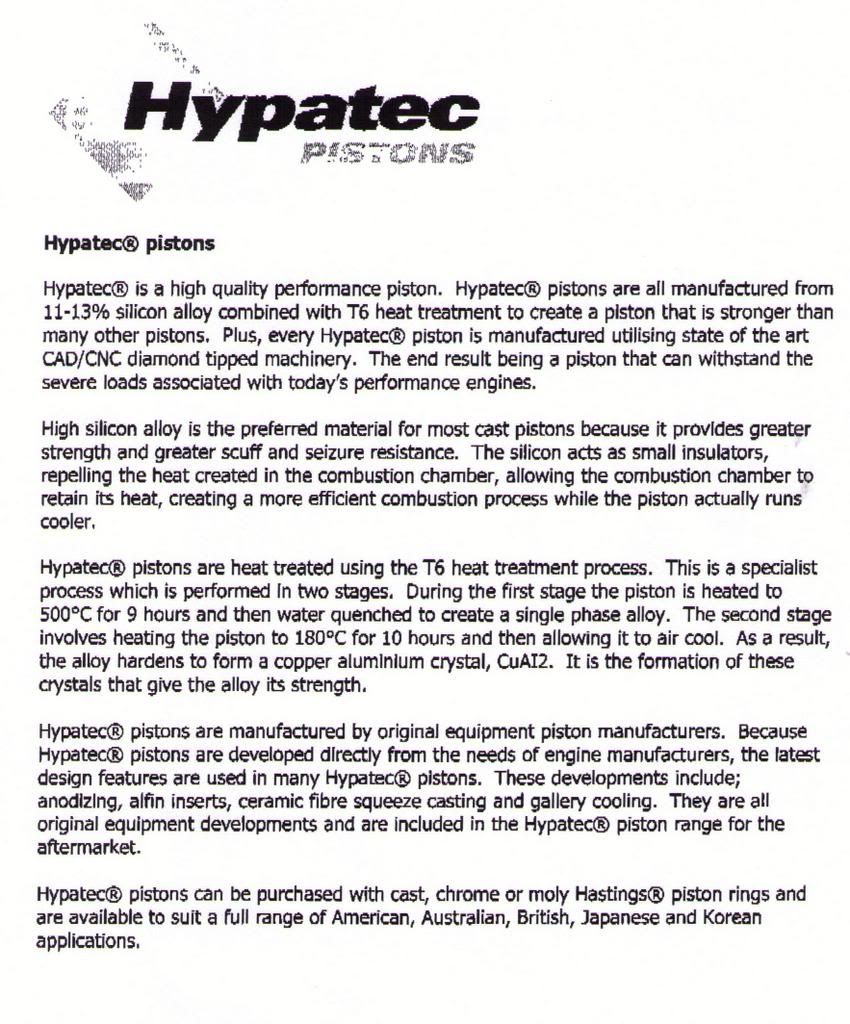

I have uploaded a info sheet on these pistons, I left it in its large size to keep it readable (if thats a word...lol)
----------> information sheet <------------

Andrew@Minisport, South Australia
Ph: 08-8177-1275
Skype: minisport.au

www.minisport.com.au
sales@minisport.com.au

Thanks, what are the dish sizes in the 1275 ones?

Just emailed

Edited by dn89mini on 12th Dec, 2007.

Check out the (slow) progress at.......
http://www.turbominis.co.uk/dn89mini

For everyone else these were 6-7cc

Order placed :)

Check out the (slow) progress at.......
http://www.turbominis.co.uk/dn89mini

A few quick questions:

1) Do you know the distance between the top of the piston and the first ring? (sorry I can't remember the correct name)

2) How do they attach to the gruden pins? (interference fit or do they need cir clips / buttons to hold them on)

3) Do you sell standard 998 pistons? and are the dishes in the 988 pistons also 6cc?

Now look what you made me do, I'm supposed to be revising and instead I'm looking at pistons.

Do they have holes or slots under the oil control ring? (1275 & 998)
Regards
Dave

Edited by danboy on 12th Dec, 2007.

Mine have slots!

1/4 Mile 14.3secs 96Mph Terminal 10psi of boost.


Fibreglass Parts? - http://www.tdkracing.co.uk/
Split Rims? - http://www.force-racing.co.uk/

998 pistons are circlip (make sure the circlip is around the right way)
1275 are 'press' fit
All of the piston sets are around the 6-7cc exept the 998 plus 080/100/120 - these are flat tops
Currently can not get 998 STD (not sure when/if)

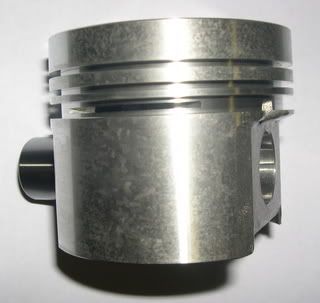

998 side picture is:

998 dish:

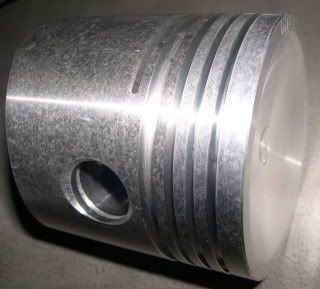

1275 side picture is:

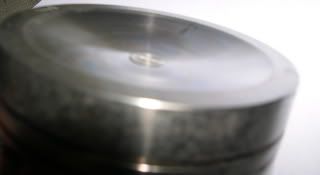

1275 dish


I will get 'back' to you with accurate measurements of the piston centre of gudgeon to top of piston and first ring to top of piston measurements.

Edited by Minisport_Australia on 13th Dec, 2007.

Andrew@Minisport, South Australia
Ph: 08-8177-1275
Skype: minisport.au

www.minisport.com.au
sales@minisport.com.au

ditto, and i *think* wil of rob_h might be after some too?

"Turbo's make torque, and torque makes fun"

"did you know you can toast potato waffles?"

sounds like a group buy might be needed.
Regards
dave

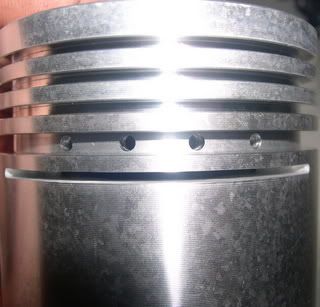

Unfortunately the 998 pistons pictured above are not the same as those marketed by Minispares.

Those slots are a real no-no.

They look like standard replacement pistons. Not suitable for Turbo use in my opinion.

EDIT: The pictures above are not the best available - see my next post below.

Edited by Paul S on 13th Dec, 2007.

Saul Bellow - "A great deal of intelligence can be invested in ignorance when the need for illusion is deep."
Stephen Hawking - "The greatest enemy of knowledge is not ignorance, it is the illusion of knowledge."

I know this is probably a daft question but which ones for 1380?

TurboDave said

"Fab's right of course.

Maybe you should take your styling ideas off the French instead! "

I thought we had discovered that the minispares ones are $h!te Ill be testing these pistons, running 10psi max boost. I shall let you guys know how i get on.

1/4 Mile 14.3secs 96Mph Terminal 10psi of boost.


Fibreglass Parts? - http://www.tdkracing.co.uk/
Split Rims? - http://www.force-racing.co.uk/

Edited by Rob H on 13th Dec, 2007.

This is what I expected to see:

http://www.minisport.com.au/prod1092.htm

Had me worried for a bit.

These have a bigger gap between the top ring and top of the piston as well.

Edited by Paul S on 13th Dec, 2007.

Saul Bellow - "A great deal of intelligence can be invested in ignorance when the need for illusion is deep."
Stephen Hawking - "The greatest enemy of knowledge is not ignorance, it is the illusion of knowledge."

Havent a few peeps had rind failures with these?

1/4 Mile 14.3secs 96Mph Terminal 10psi of boost.


Fibreglass Parts? - http://www.tdkracing.co.uk/
Split Rims? - http://www.force-racing.co.uk/

A few people have had problems recently such as Richard but i dont think its down to poor piston design, possibly a bad batch? Others eg Giallofly run 200 bananas with no probs

£93 for a set of 1330cc pistons with ring set!!!!!!!!!!delivered!!!!!!!!!

am i doing/reading something wrong????

Hi,
Aren't people having problems with the Mega pistons? These are the Hypatech ones, or are they the same thing with a different name?
Cheers,
Gavin :)

VEMs Authorised Installer / Re-seller. K head kits now available!

WB/EGT gauges. Click here for customers write-up

Visit www.doyouneedabrain.co.uk

My Mini build diary

these are hypatec pistons,
not the same bat

iam ordering a set to make a 1360 engine 73mm and then i will have a second pull at a 0.5mm overboar taking it to a 1380

its for my friends motor

couldn't find any 1275 +20's.. shame as they are a great price!

Barclaycard just pinged me £103 for the 1380 size ones.
