Ring gear style triggerwheels
Turbo Mini Forums

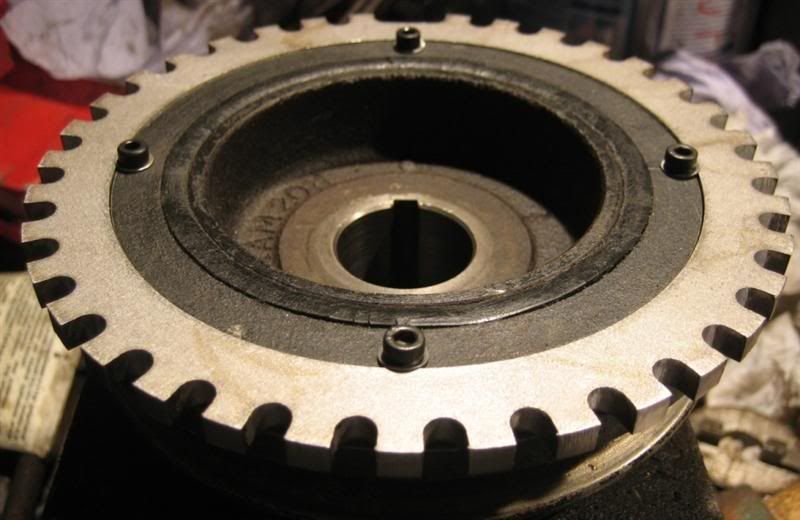

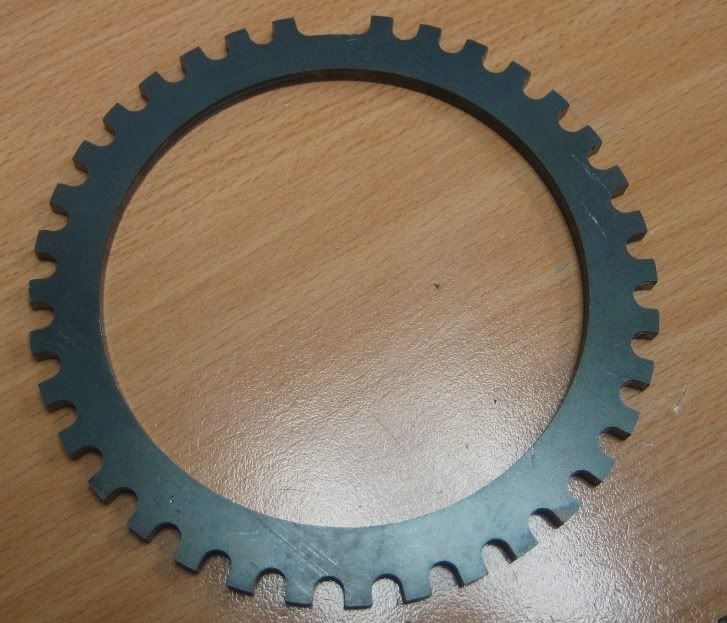

got a few of these up for grabs if anyones interested. you need to get your pulley machined to suit, but easy at any machine shop. ID is 100mm & OD is 130mm. mounting like this alows fine tuning of position in relation to your trigger.

£18 inc postage for you guys, paypal only. (pulley not included)





PM if interested.

Sooperdooperturbocooperexpertengineering!

Hi,
I like the look of that :)
If you can do them with a different sized hole it could be a good solution for people running MPi pulleys
Cheers,
Gavin :)

VEMs Authorised Installer / Re-seller. K head kits now available!

WB/EGT gauges. Click here for customers write-up

Visit www.doyouneedabrain.co.uk

My Mini build diary

Could be a possibility.. would need to know some sizes. what do MPI pulleys lok like? where would these ring gears fit?

would they fit anything else?

Sooperdooperturbocooperexpertengineering!

How thick is it ???
Difficult to see how much had be machined back on the pulley from the photo, but very interested.

Rod.

Schrödinger's cat - so which one am I ???

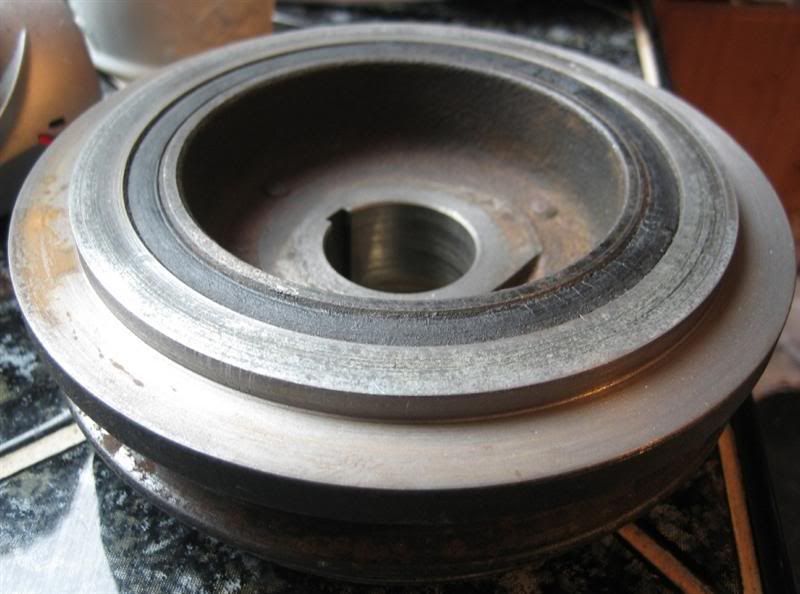

its 5mm thick, and i had 4.5mm depth taken off pulley, this gives 0.5mm step for cap heads to grip

Cheers

Ross.

Sooperdooperturbocooperexpertengineering!

i have the same setup, but i welded mine on.

thats always an option... but maybe not as adjustable!!! LOL... and if you are like me, the more adjustment the better!! ha ha.

Sooperdooperturbocooperexpertengineering!

Got mine today. Cheers.

Tim Rowe

"Is est totus perfectus per fumi quod speculum"

GTM Coupe Turbo

If you are out by 90 degrees can't you swap the leads over until you get the pulley sorted out?

Tim Rowe

"Is est totus perfectus per fumi quod speculum"

GTM Coupe Turbo

i think il just whip it of and remove/replace the missing tooth,
(Paul S's idea)

Sounds sensible. Just make sure that you cut the right tooth.

Tim Rowe

"Is est totus perfectus per fumi quod speculum"

GTM Coupe Turbo

or file a fresh keyway.

Thanks Ross,

Mine arrived today !!!

Now I'll have to go and fix the little problem on my lathe that I've been meaning to do for ages.....

Rod.

Schrödinger's cat - so which one am I ???

I'd like one please, PM sent.

Retired - No probs, Thank you!
UEV409K - PM Sent back

Ross.

Sooperdooperturbocooperexpertengineering!

got some more of these if anyone's interested?

R.

Sooperdooperturbocooperexpertengineering!

PM your details i'll have one! i'm in coventry

SKYLINES ARE LIKE CLITS, EVERY FLANGE SEEMS TO HAVE ONE: see this sticker on my silvia

the Search-section on this forum is blummin superb & simple to use, unlike some other forums, without the search-section & the help of this bunch of chaps on here i'll never be able to !!!Start the day with a 998cc turbo!!! :) i'm getting closer though!

Tom Fenton says: I have it all, make me an offer

PM sent, I'll take another if the size is identical to the earlier ones.

Schrödinger's cat - so which one am I ???

retired : Yep same as before, PM Sent.
clubmanflip : PM Sent.

Edited by mini-marauder on 20th Jul, 2008.

Sooperdooperturbocooperexpertengineering!

retired : Yep, same as before, PM Sent.
clubmanflip : PM Sent.

Sooperdooperturbocooperexpertengineering!

me pm sent again lol P

SKYLINES ARE LIKE CLITS, EVERY FLANGE SEEMS TO HAVE ONE: see this sticker on my silvia

the Search-section on this forum is blummin superb & simple to use, unlike some other forums, without the search-section & the help of this bunch of chaps on here i'll never be able to !!!Start the day with a 998cc turbo!!! :) i'm getting closer though!

Tom Fenton says: I have it all, make me an offer

Hi,

I am interested in one of these, do you just have to mount your pulley in a chuck, and machine about 4.5mm off the face, leaving a step of around .5mm. Then obviously drill the 4 holes to mount with?

Do you not have to machine any of the OD, to fit inside the trigger wheel?

If not I will take one, would you recommend getting it balanced as well, I have this facility available at work you see.

Thanks

Jon

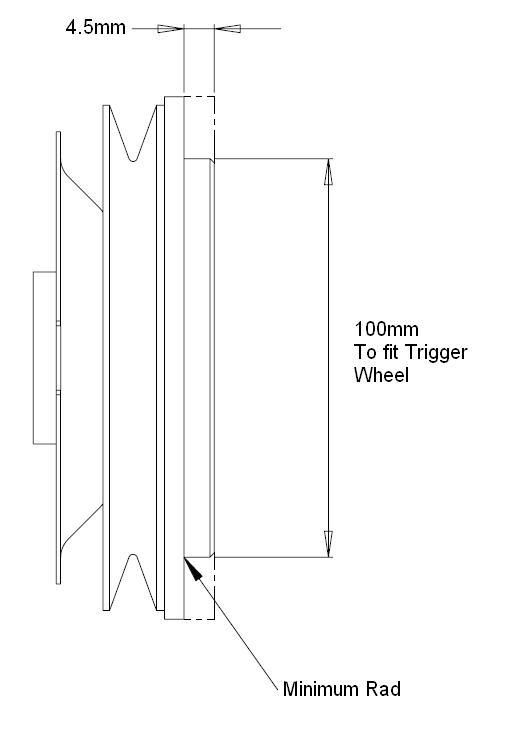

Hopefully the following pics will help out with that.

as for balancing, yes it may be worth it, i balanced mine when the crank and flywheel were done.


Cheers
Ross.

Edited by mini-marauder on 23rd Jul, 2008.

Sooperdooperturbocooperexpertengineering!

In which case I would like to order one of these please!

How would you like payment? Also do you know where I might be able to just get the sensor bracket from?

Thanks

Jon
