Home > Help Needed / General Tech Chat > Clutch - machining backplate (pressure plate) lugs | |||||||
5988 Posts Member #: 2024 Formally Retired Rural Suffolk |
14th Apr, 2008 at 04:08:29pm
After a while searching I decided the grey diaphragm and the AP (CP2084-41) plate were right for me so ordered them - arrived today, nice...
Schrödinger's cat - so which one am I ??? |
||||||
6549 Posts Member #: 1149 #1 Basshunter Fan Force Racing ICT Dept Manager Miglia Turbo Am frum Yokshyer tha noes! |
14th Apr, 2008 at 05:01:02pm
Its so that there is less gap between the backlpate and flywheel thus squeezing the clutch harder. 1/4 Mile 14.3secs 96Mph Terminal 10psi of boost.
|
||||||
6962 Posts Member #: 507 Fastest A Series Mini in the World leeds/wakefield. |
14th Apr, 2008 at 05:13:45pm
52.55 inches, its a very tall clutch pack,lol
|
||||||
5988 Posts Member #: 2024 Formally Retired Rural Suffolk |
14th Apr, 2008 at 05:48:52pm
On 14th Apr, 2008 MikeRace said: The principle of getting the spring to press harder is fine but there must be an optimum compression of the spring to achieve the clamping load in the table Fab quoted. Diaphragm springs aren't linear, load them too much and (in the extreme) they will either break or simply flip "inside out" - no load at all then.
Its so that there is less gap between the backlpate and flywheel thus squeezing the clutch harder. So, apart from if you add extra drive straps, why isn't the pressure right already from a combination of manufacturer's spring size and driven plate thickness? On 14th Apr, 2008 fastcarl said: The quotation marks were because it was from Fab's table, I'm sure it's 52.55mm like the table implies (and I'm sure you are too:):):)) but where is this 52.55mm measured?
52.55 inches, its a very tall clutch pack,lol Rod. Schrödinger's cat - so which one am I ??? |
||||||
Forum Mod 10979 Posts Member #: 17 ***16*** SouthPark, Colorado |
14th Apr, 2008 at 06:03:45pm
The 1.5mm - i think - came from me a long time ago. I had a grey diaphram, that was not holding the torque. I studied it, and with the aid of a machine at work, deduced that i needed to remove around 1.5mm of material from the backplate lugs to optimise the clamping force.
On 17th Nov, 2014 Tom Fenton said:
Sorry to say My Herpes are no better Ready to feel Ancient ??? This is 26 years old as of 2022 https://youtu.be/YQQokcoOzeY |
||||||
5988 Posts Member #: 2024 Formally Retired Rural Suffolk |
14th Apr, 2008 at 06:58:12pm
Thanks Dave,
Schrödinger's cat - so which one am I ??? |
||||||
Forum Mod 10979 Posts Member #: 17 ***16*** SouthPark, Colorado |
14th Apr, 2008 at 07:18:05pm
I did these tests in 1999/2000. Long before TurboMinis.com and Fabs table LOL
On 17th Nov, 2014 Tom Fenton said:
Sorry to say My Herpes are no better Ready to feel Ancient ??? This is 26 years old as of 2022 https://youtu.be/YQQokcoOzeY |
||||||
5988 Posts Member #: 2024 Formally Retired Rural Suffolk |
14th Apr, 2008 at 07:27:16pm
On 14th Apr, 2008 TurboDave said:
Can't help any more than that... :( That's great, it gives me the background to some of the fragmented threads I've been reading and getting confused over. Your point (earlier) about the actual steel pressing of the diaphragm spring distorting could mean the optimum figure will vary for each individual case - the one I've just received has three additional (small) strengthening plates welded inside up near the release bearing plate and I can't see what on earth they are supposed to achieve I'd still like to know what the 52.55mm means in Fab's table though.... Schrödinger's cat - so which one am I ??? |
||||||
Forum Mod 10979 Posts Member #: 17 ***16*** SouthPark, Colorado |
14th Apr, 2008 at 07:44:50pm
IIRC, all Grey diaphrams (or is it GG) have the extra 'tangs'... On 17th Nov, 2014 Tom Fenton said:
Sorry to say My Herpes are no better Ready to feel Ancient ??? This is 26 years old as of 2022 https://youtu.be/YQQokcoOzeY |
||||||
1849 Posts Member #: 672 The oversills police Oslo, Norway |
14th Apr, 2008 at 08:32:04pm
grey and double grey have those |
||||||
4302 Posts Member #: 1321 Post Whore Wiltshire |
18th Aug, 2021 at 04:00:22pm
Holy thread revival attempting to address my clutch slip issue.
Edited by minimole23 on 18th Aug, 2021. On 7th Oct, 2010 5haneJ said:
yeah I gave it all a good prodding |
||||||
940 Posts Member #: 1424 Post Whore Carnforth, Lancs |
24th Aug, 2021 at 11:59:20am

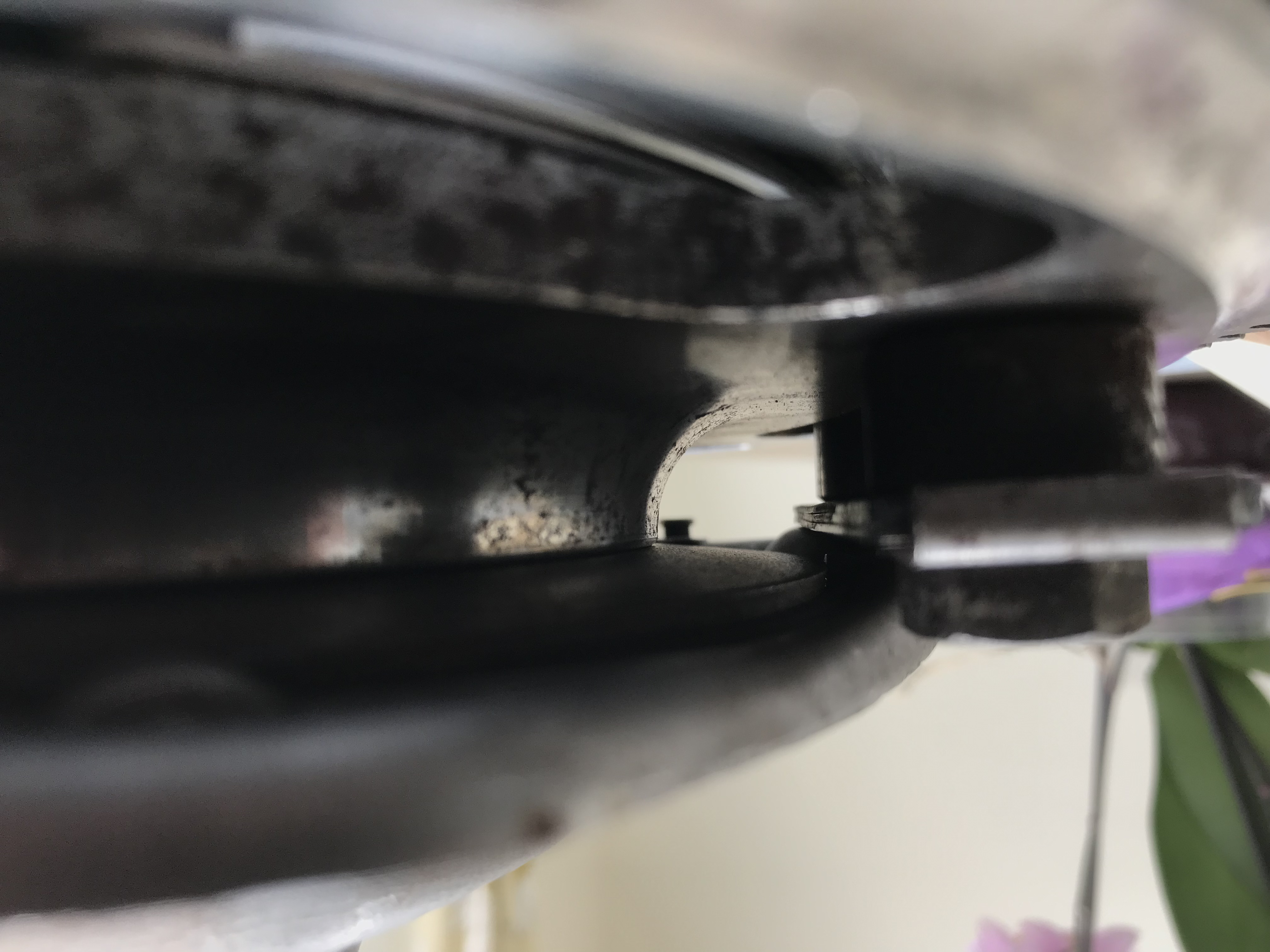

Using a new clutch plate they should be as close to flat as you can get, without them being over-centre at rest.
|
||||||
4302 Posts Member #: 1321 Post Whore Wiltshire |
24th Aug, 2021 at 12:46:15pm
Mine needed 1.5mm off in the end, but to keep things slightly conservative have had 1.2mm off. Picking it up tomorrow.
Edited by minimole23 on 24th Aug, 2021. On 7th Oct, 2010 5haneJ said:
yeah I gave it all a good prodding |
||||||
67 Posts Member #: 8956 Advanced Member Algarve/Portugal |
2nd Sep, 2021 at 10:35:11pm
https://www.youtube.com/watch?v=C3c5EcpYiP8
|
||||||
2488 Posts Member #: 1954 Post Whore Luton Bedfordshire |
3rd Sep, 2021 at 12:20:23pm
Bravo sir
On 2nd Sep, 2021 R.Rodrigues said:
https://www.youtube.com/watch?v=C3c5EcpYiP8 https://www.youtube.com/watch?v=4lEbKGpZ4xw&t=997s One of the best explanations I saw, especially the torque wrench to check. Own the day
|
||||||
3577 Posts Member #: 655 Post Whore Northern Ireland |
5th Sep, 2021 at 07:50:34pm
On 24th Aug, 2021 minimole23 said:
Mine needed 1.5mm off in the end, but to keep things slightly conservative have had 1.2mm off. Picking it up tomorrow. Be interesting to see if the clutch is lighter to save heaving up to and over centre. I had always thought clutches did go overcentre on the pedal But some months ago I read from one of the clutch suppliers, that the diaphragm should never go over centre in use, this can weaken it over time. This was for more conventional clutches, but I'm sure it would equally apply to the old Mini clutches too. Would be interesting to see some actual clamp load tests vs diaphragm position, up to and including over centre. 9.85 @ 145mph
|
||||||
4302 Posts Member #: 1321 Post Whore Wiltshire |
6th Sep, 2021 at 05:51:40am
With the paddle plate, less oil and chunk off the backplate it now bites hard. Time to pull it to replace the 300 mile oil seal, as it’s buggered. On 7th Oct, 2010 5haneJ said:
yeah I gave it all a good prodding |
||||||
428 Posts Member #: 10128 Senior Member Dorset |
6th Sep, 2021 at 10:31:56am
On 6th Sep, 2021 minimole23 said: Having overheard the discussion with some old hands in the paddock, turns out mine is fitted wrong too, another job for winter!
Time to pull it to replace the 300 mile oil seal, as it’s buggered. |
||||||
