Hi,

I've got a 2wd (I think) cosworth intercooler, but I'm struggling to route the pipework around the servo. I'd like to keep the servo.

Has anyone got any pics of their cossie intercooler setups preferably with servo please?

Thanks,

James

On 25th Sep, 2009 mini13 said:
cool, i'll pop over with my tool and some lube, lol

1293 88.8hp 82.2ftlb

17.3 1/4 @ 78 mph

Naturally Aspirated (for now)


Rob H

4314 Posts
Member #: 700
Formerly British Open Classic

The West Country

http://www.turbominis.co.uk/forums/index.php?p=vt&tid=237690

http://www.turbominis.co.uk/forums/index.php?p=vt&tid=137698

Isambard Kingdom Brunel said:
Nothing is impossible if you are an Engineer


1293 sprite

User Avatar

536 Posts
Member #: 5449
Post Whore

Melton Mowbray

Thanks for the links *happy*

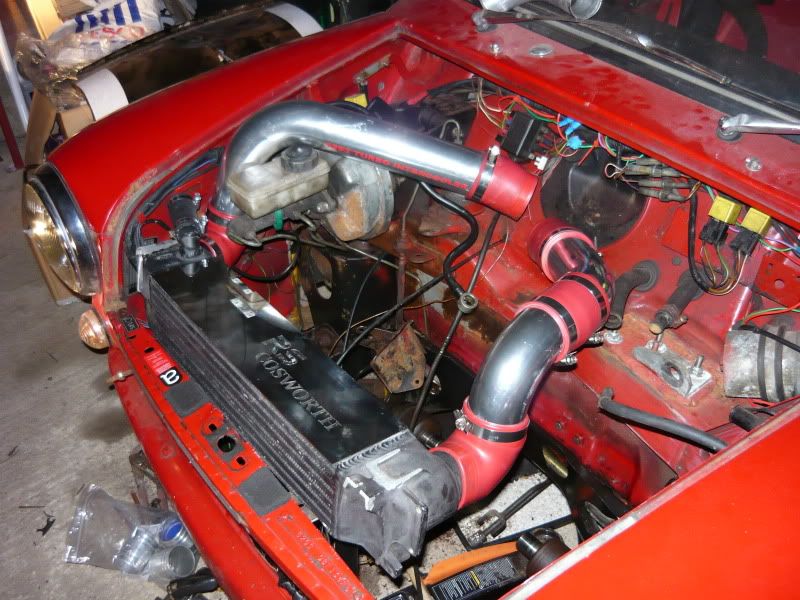

The closest ive got so far is this



The only problem is the bonnet sits quite high because of the pipe on the left over the servo. Its going to be raised at the back anyway, but its still a bit too high...

EDIT : Useing a "Nic" Plenum, so that should help with the pipework...

Edited by 1293 sprite on 3rd Sep, 2009.

On 25th Sep, 2009 mini13 said:
cool, i'll pop over with my tool and some lube, lol

1293 88.8hp 82.2ftlb

17.3 1/4 @ 78 mph

Naturally Aspirated (for now)


stefaz

User Avatar

1252 Posts
Member #: 1656
Post Whore

stoke-on-trent

http://www.turbominis.co.uk/forums/index.p...id=171785&fr=25

I'm going to update that soon with some pics of how the bonnet sits. just need to get home before it gets dark for a change

Edited by stefaz on 3rd Sep, 2009.

On 23rd Oct, 2009 sim_ou_nao said:

eu gosto de mamas = i like boobs


Dicanio

User Avatar

461 Posts
Member #: 91
Senior Member

Live @ Worksop, Work @ Rotherham

http://www.turbominis.co.uk/forums/index.p...&tid=9373&fr=75

Go to page 4.

But I've got a plenum from Nic, which helps.


1293 sprite

User Avatar

536 Posts
Member #: 5449
Post Whore

Melton Mowbray

Thanks for the links :)
They all look like tidy installs.
Mine looks similar to yours stefaz with the pipes over the top of the servo. Just need to get the engine back in to see if they will all link up ok.

Also Dicanio I've got one of Nic's plenums too, when it arrives *wink*

On 25th Sep, 2009 mini13 said:
cool, i'll pop over with my tool and some lube, lol

1293 88.8hp 82.2ftlb

17.3 1/4 @ 78 mph

Naturally Aspirated (for now)


n.g.l.

User Avatar

370 Posts
Member #: 181
Senior Member

Chard, Somerset


MikeRace

User Avatar

6549 Posts
Member #: 1149
#1 Basshunter Fan

Force Racing ICT Dept Manager Miglia Turbo Am frum Yokshyer tha noes!

I was just about to say go under the servo!

1/4 Mile 14.3secs 96Mph Terminal 10psi of boost.


Fibreglass Parts? - http://www.tdkracing.co.uk/
Split Rims? - http://www.force-racing.co.uk/


t3gav

2395 Posts
Member #: 229
Gavin@minispares.com

kent

On mine i'm pretty sure i can do as mike suggests, similar to ngl's setup but the pipe on the left goes straight forward under the braided brake pipe hoses, i dont have a standard breather though.


wil_h

User Avatar

9258 Posts
Member #: 123
Post Whore

Betwix Harrogate and York

I found it impossibel to get the cosworth one in and terail all the original bits (servo, cold air intake etc.)

So I chucked it my brothers way and stuck in am S2 Escort RS one. Much easier and bigenough for dectent power/cooling.

Fastest 998 mini in the world? 13.05 1/4 mile 106mph

www.twin-turbo.co.uk

On 2nd Jan, 2013 fastcarl said:

the design shows a distinct lack of imagination,
talk about starting off with a clean sheet of paper, then not bothering to fucking draw on it,lol

On 20th Apr, 2012 Paul S said:
I'm mainly concerned about swirl in the runners caused by the tangential entry.


t3gav

2395 Posts
Member #: 229
Gavin@minispares.com

kent

Ah courtesy of theoneeyedlizard, hope you dont mind http://www.turbominis.co.uk/photo/658/


1293 sprite

User Avatar

536 Posts
Member #: 5449
Post Whore

Melton Mowbray

Thank you for all your help, pics and links.

On 25th Sep, 2009 mini13 said:
cool, i'll pop over with my tool and some lube, lol

1293 88.8hp 82.2ftlb

17.3 1/4 @ 78 mph

Naturally Aspirated (for now)


theoneeyedlizard

User Avatar

7265 Posts
Member #: 1268
The Boom Boom speaker Police!

Essex


That's not a cossie cooler in that pic, but it may help with the pipework around the servo.

On 4th Sep, 2009 t3gav said:
Ah courtesy of theoneeyedlizard, hope you dont mind http://www.turbominis.co.uk/photo/658/

In the 13's at last!.. Just


TurboMike1992

User Avatar

171 Posts
Member #: 9928
Advanced Member

Hartley, Kent

my setup using a phase 2 escort rs turbo cooler iirc





Low boosting for now.
