Manifold, Turbo and Adapter Flanges
Turbo Mini Forums

Following on from the thread in the wanted section:



I'm getting a batch of flanges cut in both mild and stainless steel. This is a picture of the last batch:



So here goes:

Head Flanges
Two outers and one centre.
The holes and reliefes are cut at 8mm diameter so that they can be accurately aligned for fabrication. They will need opening out to allow for expansion.
The ports are generous, but not gasket size, so you may need to open them out a bit more if you have your head ports enlarged.
304 St Steel - £40
Mild Steel - £30

T2 Inlet Flange
These are undrilled basically because they can't laser cut at the size needed for tapping for M8 or 5/16" UNF.
Now the ports in these are 33mm deep instead of the 38mm of the turbo. This was because I was using 33mm OD pipe for my manifold and needed some metal to weld to :)

So you may need to open them up if you are using larger pipes.
304 St Steel - £10
Mild Steel - £8

GT17 Inlet Flange
Undrilled
38mm diameter port
304 St Steel - £12
Mild Steel - No demand

T2 Outlet Flange
48mm diameter port positioned to take flow from wastegate and turbine exhaust as so:

304 St Steel - £15 OUT of STOCK
Mild Steel - £12 OUT of STOCK

Gt2056 Outlet Flange
The turbo housing is divided between the exhaust and the wastegate, except for a small port. I think it is a good idea to keep these seperate for at least a couple of inches so these will have two ports as so:

304 St Steel - £15 OUT OF STOCK
Mild Steel - £12 OUT OF STOCK

T2 to T3 Adapter Flange
12mm Mild Steel.
You will need to cut the existing studs off the Metro manifold and drill and tap to take four new studs. Also grind the plate to the T3 outlet shape on one side.

Price £15

Postage will be extra but about £5-£10 depending on weight.

I've compiled a list of those guys who have let me know already, but please PM me if you want any.

It will take a few days to get the prices for the mild steel, but they will be slightly cheaper than the stainless.

EDIT: Added adaptor plates.

EDIT2: Added some prices and postage extra.

EDIT3: Added price for T2/T3 Adaptor

Edited by Paul S on 26th Sep, 2011.

Saul Bellow - "A great deal of intelligence can be invested in ignorance when the need for illusion is deep."
Stephen Hawking - "The greatest enemy of knowledge is not ignorance, it is the illusion of knowledge."

Pm sent

Put me down for a GT17 304 stainless flange please :)

And what sort ot time scale are we looking at :)

Thanks

PM'd!

If something is worth doing, it's worth doing half of.

Right, Ive also been asked about making up some T2 to T3 Metro manifold adaptors.

I don't have a Metro manifold anymore to check this against, but I'll make some up if someone can provide a drawing or give me guidance.

I assume that they are T3 overall size, with a T2 hole. I seem to remember that the hole is at an angle.

I seem to think it's drilled and countersunk to fix to the manifold and then fitted with studs to the T2 pattern.

Can anyone confirm?

Saul Bellow - "A great deal of intelligence can be invested in ignorance when the need for illusion is deep."
Stephen Hawking - "The greatest enemy of knowledge is not ignorance, it is the illusion of knowledge."

my turbos off at the moment so can sent the manifold if thats any good

Can i have a GT17 304 stainless flange please.

Manchester Minis

Saul Bellow - "A great deal of intelligence can be invested in ignorance when the need for illusion is deep."
Stephen Hawking - "The greatest enemy of knowledge is not ignorance, it is the illusion of knowledge."

Paul ive got this image i scavenged from on here i have it labelled as a t3manifold to t2 turbo adapter plate

im not totally sure thats what it is as there is only one set of holes if its of any help

Yes i moved to the darkside

Instagram @jdm_brett

Saul Bellow - "A great deal of intelligence can be invested in ignorance when the need for illusion is deep."
Stephen Hawking - "The greatest enemy of knowledge is not ignorance, it is the illusion of knowledge."

Paul I have a cad drawing for the adapter plate. It is basically just a match for the T2 flange. PM me an email and I will send it over. I could do with one myself!

http://www.twin-turbo.co.uk
http://www.hillclimbandsprint.co.uk/default.asp

A man without a project is like a like a woman without a shopping list.

On 2nd Feb, 2010 Brett said:
Paul ive got this image i scavenged from on here i have it labelled as a t3manifold to t2 turbo adapter plate

im not totally sure thats what it is as there is only one set of holes if its of any help

Saul Bellow - "A great deal of intelligence can be invested in ignorance when the need for illusion is deep."
Stephen Hawking - "The greatest enemy of knowledge is not ignorance, it is the illusion of knowledge."

Saul Bellow - "A great deal of intelligence can be invested in ignorance when the need for illusion is deep."
Stephen Hawking - "The greatest enemy of knowledge is not ignorance, it is the illusion of knowledge."

Am I correct in thinking that the T3/T2 adaptor is just a flat plate with the port and 4 clearnace holes for fixings?

Then you just cut the studs off the manifold and drill and tap for 4 new studs?

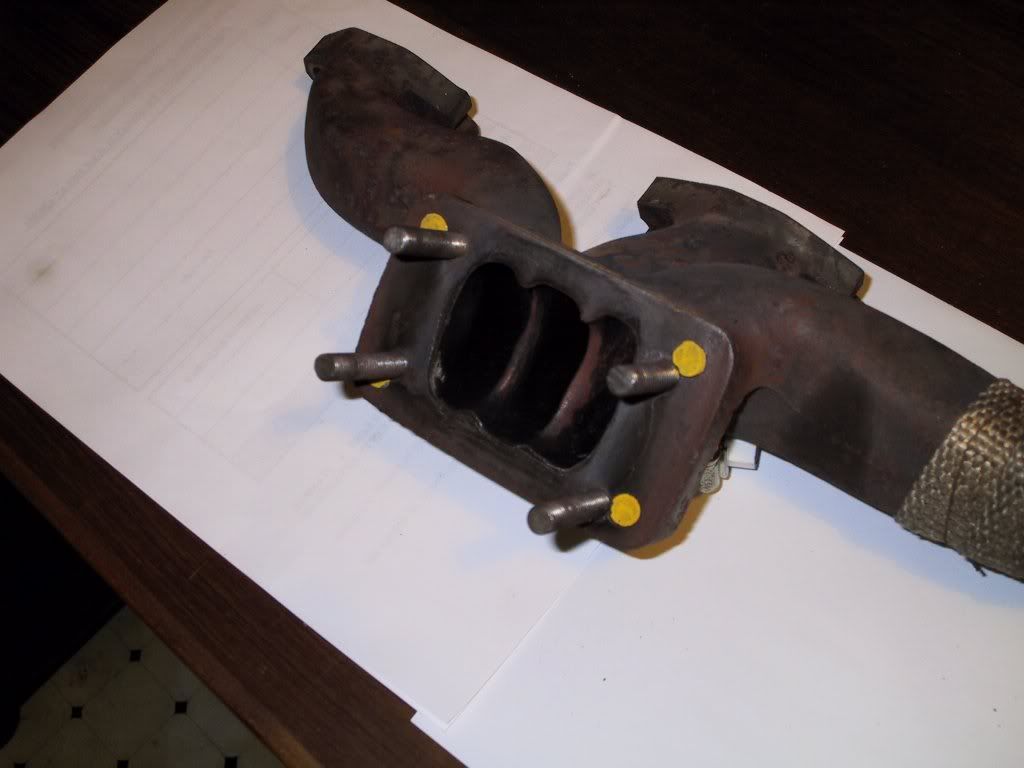

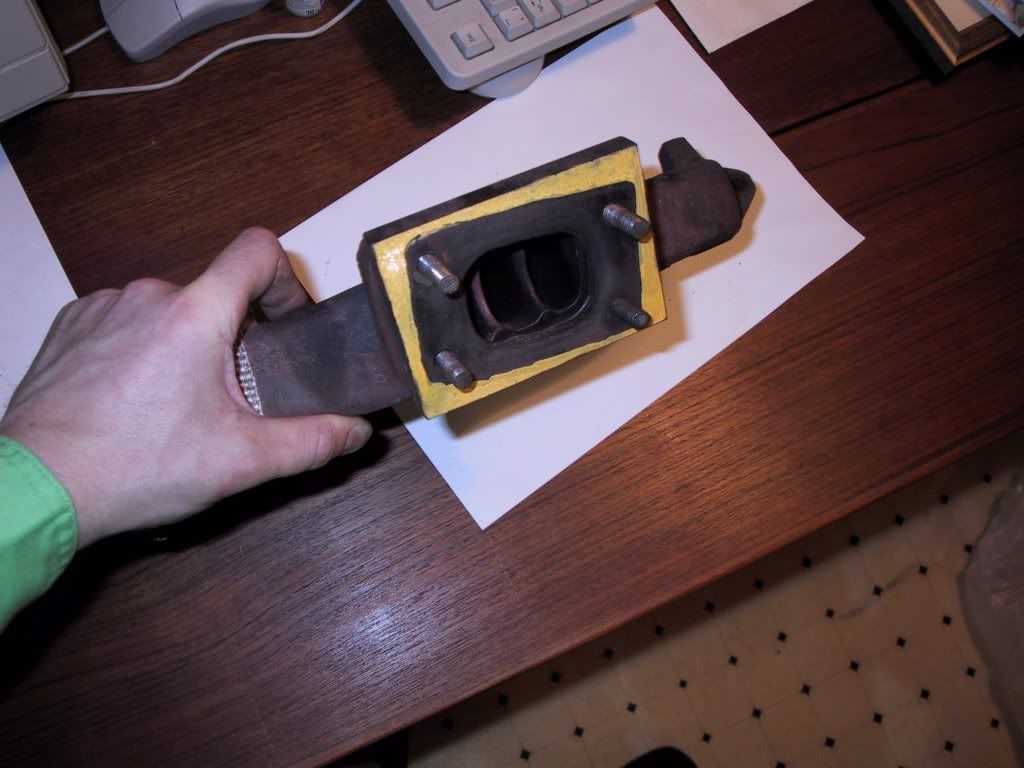

Photo coutesy of Nick

Saul Bellow - "A great deal of intelligence can be invested in ignorance when the need for illusion is deep."
Stephen Hawking - "The greatest enemy of knowledge is not ignorance, it is the illusion of knowledge."

That is correct, nothing fancy to it. Just the T2 shape is needed really.

Edit: actually I do seem to remember that the centre hole is rotated a bit as the turbo rotates a bit on the flange. I am beginning to think I need to look at the one on the TT.

Edited by Ben H on 2nd Feb, 2010.

http://www.twin-turbo.co.uk
http://www.hillclimbandsprint.co.uk/default.asp

A man without a project is like a like a woman without a shopping list.

I've added the adaptor in the original post.

I've rotated the holes 3 degrees around the centre.

Saul Bellow - "A great deal of intelligence can be invested in ignorance when the need for illusion is deep."
Stephen Hawking - "The greatest enemy of knowledge is not ignorance, it is the illusion of knowledge."

Saul Bellow - "A great deal of intelligence can be invested in ignorance when the need for illusion is deep."
Stephen Hawking - "The greatest enemy of knowledge is not ignorance, it is the illusion of knowledge."

im planning on fitting a GT17 at some point.. can you put me down for a adapter and stainless outlet flange.

Thanks, Mark

Saul Bellow - "A great deal of intelligence can be invested in ignorance when the need for illusion is deep."
Stephen Hawking - "The greatest enemy of knowledge is not ignorance, it is the illusion of knowledge."

i'll take a GT20 outlet in stainless please. my laser cutters were pretty useless and they couldn't do it with 2 seperate ports, or the bolt holes in the right places..

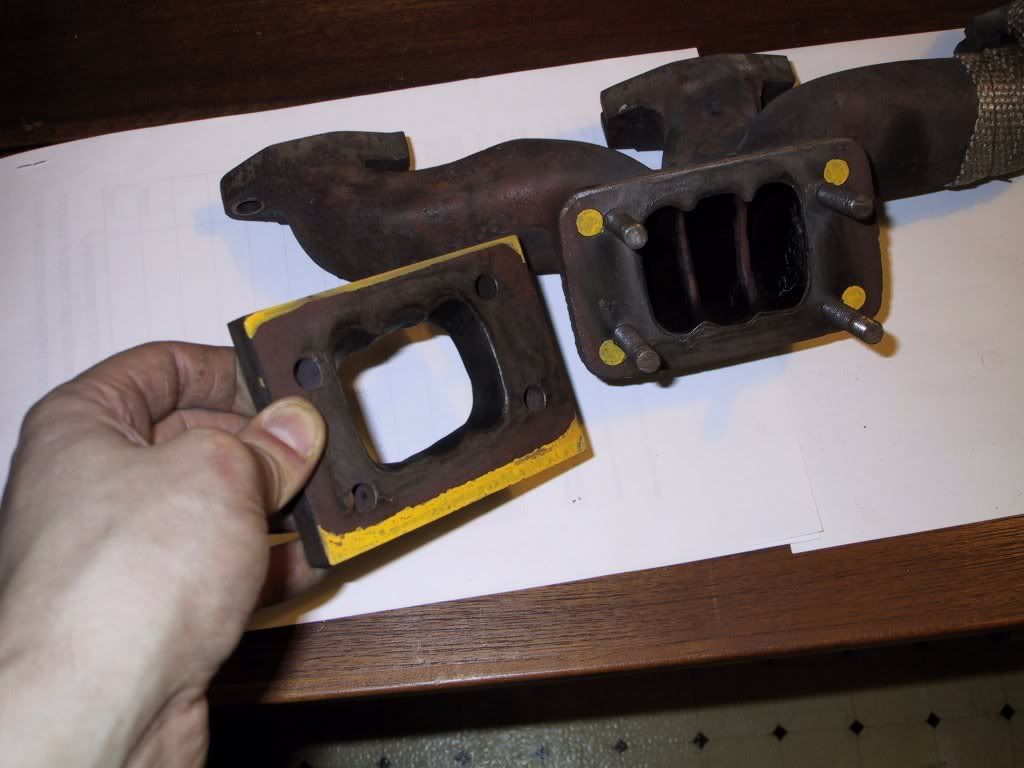

i've still got TD's pics from the original T3>T2 how to thread saved, just uploading them now...
