Alright chaps,

I finally got around to doing some bits and bobs on the car :)

So thought I would post a few picks as an update

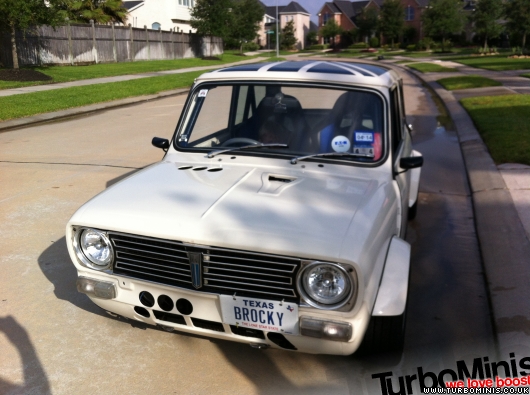

First off I managed to after much hassle to get the car actually registered and legal to drive here, so I have fitted my plates...

I didn't want to drill more holes or pull off the uk plate so lucky I found a plate bracket which I mounted under the boot hinge :)

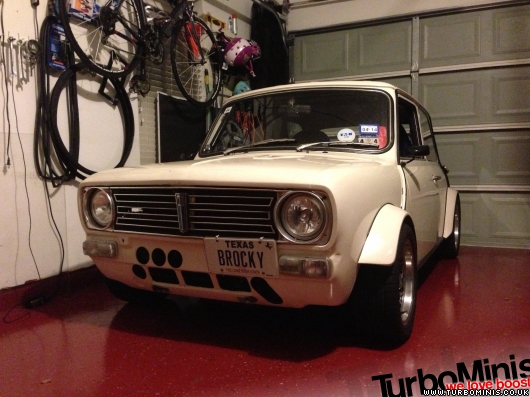

I think it looks ok ?

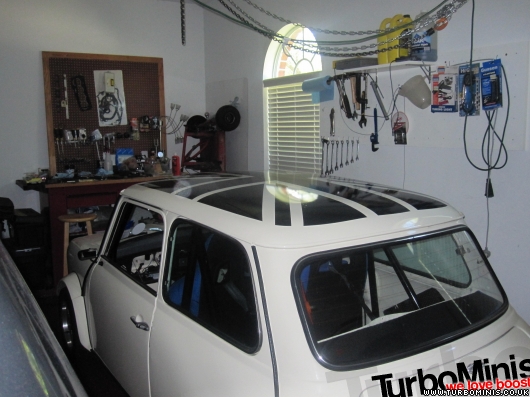

I have also fitted spa mirrors and a new roof decal

And after having had the edis and crank pulley and sensor bracket for 3 years finally bought a V4 Mega jolt



It runs sooo nice now I wish I had done this years ago...the fuel gauge poking out of the dash is temporary while I sort the fueling as I had to fit a new pump.

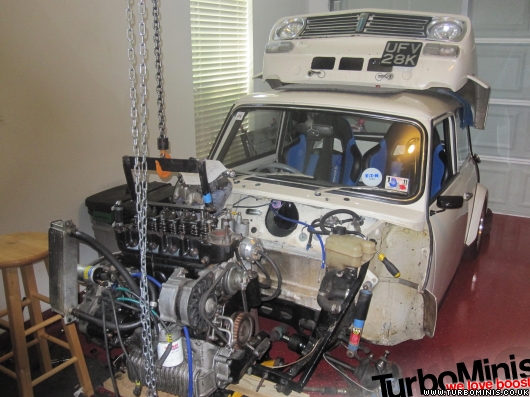

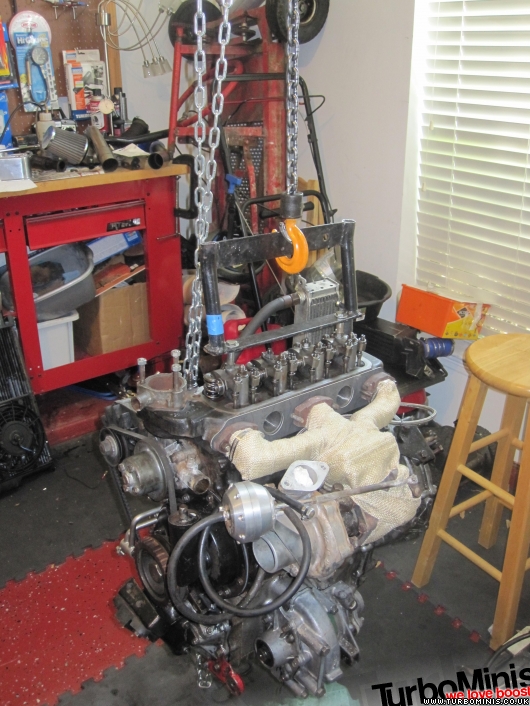

Next I pulled the engine and fitted new head gasket, fixed a few oil leaks and fitted a quaife with new Swifty bearings and a 2.9 FD.



Before refitting the turbo I wrapped the manifold



and fitted the pulley and bracket.



I'm fairly pleased with the car at the moment but it is a little hot at the moment here to drive for too long, its not the engine over heating its the driver lol.

Next I plan to fit a 16 row oil cooler and second 9" tripac to help keep things cool, and need to cut some holes in the front of the car.

Comments welcome

Cheers

Brocky

Edited by Brocky on 3rd Jul, 2015.

BTW - I took my buddy VTEC Pete out for a spin this weekend, and even though I am running her in, he gave it a name, the "Brocket"...cause I'm a brocket maaannn, nah nah nah nah nah nah nah nah nah nah nah....

Build thread - http://www.turbominis.co.uk/forums/index.php?p=vt&tid=7483

Katy Mini Owners Club Thread - http://www.turbominis.co.uk/forums/index.php?p=vt&tid=505552

Let's make sure you embarrass at least one VTEC MINI today !

https://www.facebook.com/groups/17557298589...096464253807802


Brocky

User Avatar

807 Posts
Member #: 224
Post Whore

Katy TEXAS

Does anyone know how to make the pictures bigger ?

BTW - I took my buddy VTEC Pete out for a spin this weekend, and even though I am running her in, he gave it a name, the "Brocket"...cause I'm a brocket maaannn, nah nah nah nah nah nah nah nah nah nah nah....

Build thread - http://www.turbominis.co.uk/forums/index.php?p=vt&tid=7483

Katy Mini Owners Club Thread - http://www.turbominis.co.uk/forums/index.php?p=vt&tid=505552

Let's make sure you embarrass at least one VTEC MINI today !

https://www.facebook.com/groups/17557298589...096464253807802


pinkyandnobrain

User Avatar

720 Posts
Member #: 2588
Post Whore

Pretoria South Africa

Looks wicked !

Clubbies must be super rare in the US.

"So wat we gonna do tonight Brain?"
"Same thing we do evernight Pinky!"
"Try to take over the world!"


apbellamy

User Avatar

16540 Posts
Member #: 4241
King Gaycharger, butt plug dealer, Sheldon Cooper and a BAC but generally a niceish fella if you dont mind a northerner

Rotherham, South Yorkshire

looks good

On 11th Feb, 2015 robert said:
i tried putting soap on it , and heating it to brown , then slathered my new lube on it

*hehe!*


Brocky

User Avatar

807 Posts
Member #: 224
Post Whore

Katy TEXAS

Thanks guys,

I've seen a couple of classic minis in Houston, but no clubbys yet.

Although there was a guy in Austin selling a pick up, but I think its gone now, now that would be rare!

BTW - I took my buddy VTEC Pete out for a spin this weekend, and even though I am running her in, he gave it a name, the "Brocket"...cause I'm a brocket maaannn, nah nah nah nah nah nah nah nah nah nah nah....

Build thread - http://www.turbominis.co.uk/forums/index.php?p=vt&tid=7483

Katy Mini Owners Club Thread - http://www.turbominis.co.uk/forums/index.php?p=vt&tid=505552

Let's make sure you embarrass at least one VTEC MINI today !

https://www.facebook.com/groups/17557298589...096464253807802


BENROSS

User Avatar

9812 Posts
Member #: 332
Resident Cylinder Head Modifier

Mitsi Evo 7, 911, Cossie. & all the chavs ...... won no problem

looking great brocky, get one of those dash mounted fans will help you keep cool

whats the locals say about your mini ?






Brocky

User Avatar

807 Posts
Member #: 224
Post Whore

Katy TEXAS

Thanks Steve,

The coil pack, edis and sensor I got off you work fine, its great when thing just work! Obviously Toms pulley and bracket are spot on and made the install easy.

I had the head off you did recently, everything looks fine except a little coked up, but thats turbos for you, also got oxygen sensor boss welded in to down pipe, so need to get a lambda kit next.

I timed in my cam properly and I found the bannanas that seemed to be missing and the boost went up a psi without adjusting the actuator,
its going really well at the moment and pulls the 2.9 upto 60 mph in second although I don't like to rev it over 6k that often, and still pulls really well in top. mo need to drop to 3rd to over take...

Its amazing the reaction I get from other drives here on the road,

Alot of people look and smile and give me the thumbs up!

I also get people in the street and at the pump who just want to talk about it. :)

Went I took it for the police inspection, they both took turns to sit in it and take photos...

One guy said it would make a good golf cart, but I said he probably wouldn't get his clubs in the boot !! lol.

Other folk just cant believe how small it is.

Hows the beast running ?

Cheers

Brocky

BTW - I took my buddy VTEC Pete out for a spin this weekend, and even though I am running her in, he gave it a name, the "Brocket"...cause I'm a brocket maaannn, nah nah nah nah nah nah nah nah nah nah nah....

Build thread - http://www.turbominis.co.uk/forums/index.php?p=vt&tid=7483

Katy Mini Owners Club Thread - http://www.turbominis.co.uk/forums/index.php?p=vt&tid=505552

Let's make sure you embarrass at least one VTEC MINI today !

https://www.facebook.com/groups/17557298589...096464253807802


Brocky

User Avatar

807 Posts
Member #: 224
Post Whore

Katy TEXAS

Alright chaps,

Its been a while since I took the mini out due to the hot weather here, and a fueling issue....the car was starving while flat out in top after a while.

I fitted a new bosch fuel pump and flushed the tank and system and fitted a hi flow pre filter and the beast is back with avengence !!



The air was nice and cool last night and I got up to 6000 rpm in 4th before I chickened out for fear of a ticket. Which ain't bad for 11 psi.



I'm running a 2.95 FD with standard drops on 13"'s so by my calcs that around 20mph per 1000rpm. and the new mirrors didn't fold in. but I did have to push the texas plate back down when I stopped lol and the new roof decal stayed on...

The quaife feels nice and hooks up real well although it is still a little torque steery, but this could be the tracking,

What tracking settings are you guys using ?

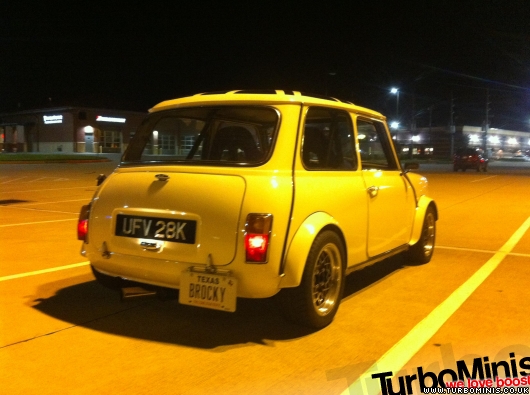

Heres a couple more of pics to follow :) Comments welcome



cheers brocky

Edited by Brocky on 7th Oct, 2010.

BTW - I took my buddy VTEC Pete out for a spin this weekend, and even though I am running her in, he gave it a name, the "Brocket"...cause I'm a brocket maaannn, nah nah nah nah nah nah nah nah nah nah nah....

Build thread - http://www.turbominis.co.uk/forums/index.php?p=vt&tid=7483

Katy Mini Owners Club Thread - http://www.turbominis.co.uk/forums/index.php?p=vt&tid=505552

Let's make sure you embarrass at least one VTEC MINI today !

https://www.facebook.com/groups/17557298589...096464253807802


John

User Avatar

10020 Posts
Member #: 1456
Mongo

Barnsley, South Flatcapshire

120mph is none too shabby!

If something is worth doing, it's worth doing half of.


apbellamy

User Avatar

16540 Posts
Member #: 4241
King Gaycharger, butt plug dealer, Sheldon Cooper and a BAC but generally a niceish fella if you dont mind a northerner

Rotherham, South Yorkshire

Nice car!

On 11th Feb, 2015 robert said:
i tried putting soap on it , and heating it to brown , then slathered my new lube on it

*hehe!*


Brocky

User Avatar

807 Posts
Member #: 224
Post Whore

Katy TEXAS

Thanks guys

Seems to pull better at the top end since doing the MJ and timming the cam in properly, infact found another pound of boost without adjusting the actuator, think the cam was way out...

Admittedly it did take a little while to go between 5500 and 6000, but it felt like it would have kept going,

Will have to get it on the rollers :)

Edited by Brocky on 7th Oct, 2010.

BTW - I took my buddy VTEC Pete out for a spin this weekend, and even though I am running her in, he gave it a name, the "Brocket"...cause I'm a brocket maaannn, nah nah nah nah nah nah nah nah nah nah nah....

Build thread - http://www.turbominis.co.uk/forums/index.php?p=vt&tid=7483

Katy Mini Owners Club Thread - http://www.turbominis.co.uk/forums/index.php?p=vt&tid=505552

Let's make sure you embarrass at least one VTEC MINI today !

https://www.facebook.com/groups/17557298589...096464253807802


jayme hill

14 Posts
Member #: 9092
Member

omagh n.i

lovely car


Brocky

User Avatar

807 Posts
Member #: 224
Post Whore

Katy TEXAS

Alright Guys

Time for a little update,

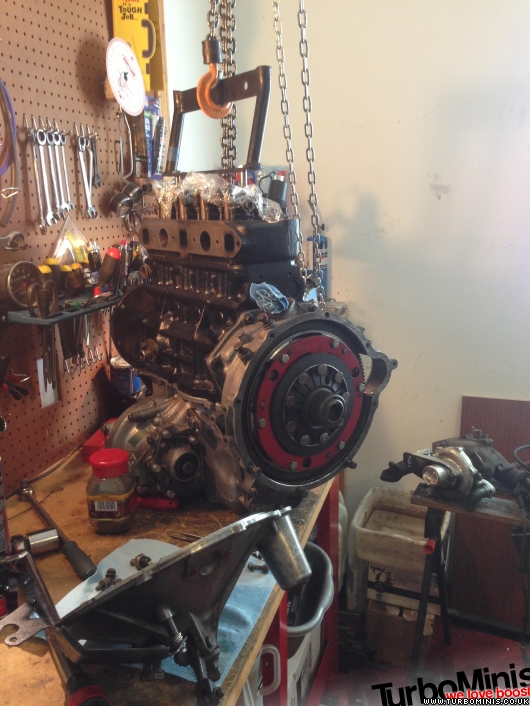

Rebuild the motor at christmas, fairly decent spec.




Total seal rings
ARP Rod bolts
11 stud
MED HC/HF Oil pump

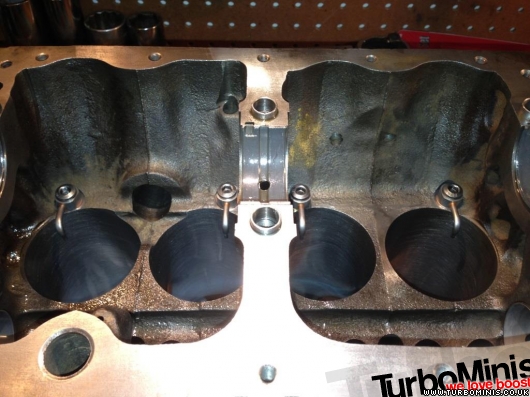

Z4 Under piston cooling jets



Block cooling mods - ported rear entry, blocked first 3 front ports to head passage.
Benross High boost head and matched manifolds and elbow, 2" d pipe.

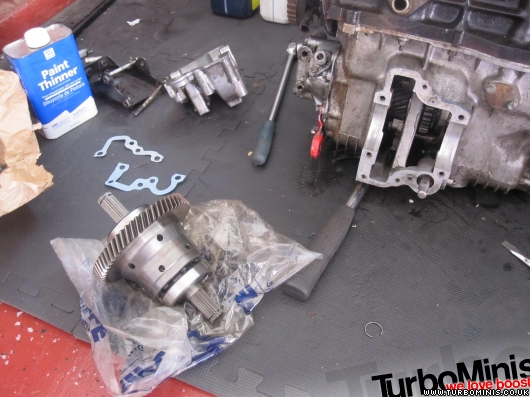

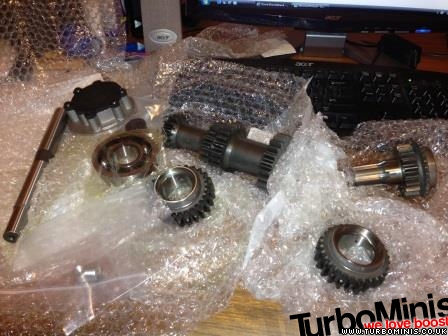

Rebuilt box w Clubman gear set
Quaife diff etc
Edis/mj set up
Lambda gauge fitted
Fabbed jet holder etc.
Nic stainless plenum
TomFenton trigger pulley and sensor bracket
Black washers under main bolts (relieved gearbox housing)
Using 6281 crank, turbo rods and super low milage 1275 stock turbo pistons,
Chilled cam followers and NA MG cam.

Just running in at the moment, getting hot here so had to open up the front end a little,



also put extra holes at back of bonnet to let the hot air out !

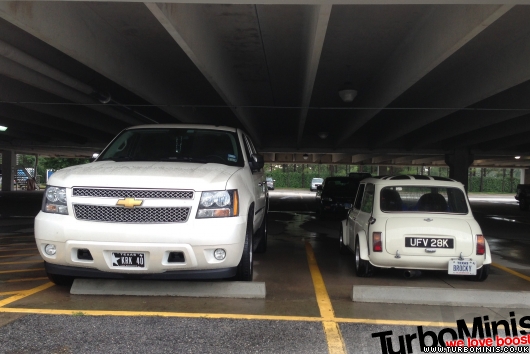

looks pretty small next to Tahoe



Run in is going well, feels really crisp and feels like it will go.

Thinking me and the other Katy club members will have a shoot out in Autumn when they get on the road. Pete's vtec and Paul Vaux 16v is should be done by then.

http://www.turbominis.co.uk/forums/index.php?p=vt&tid=505552

Comments welcome

Cheers

Brocky




Edited by Brocky on 22nd May, 2013.

BTW - I took my buddy VTEC Pete out for a spin this weekend, and even though I am running her in, he gave it a name, the "Brocket"...cause I'm a brocket maaannn, nah nah nah nah nah nah nah nah nah nah nah....

Build thread - http://www.turbominis.co.uk/forums/index.php?p=vt&tid=7483

Katy Mini Owners Club Thread - http://www.turbominis.co.uk/forums/index.php?p=vt&tid=505552

Let's make sure you embarrass at least one VTEC MINI today !

https://www.facebook.com/groups/17557298589...096464253807802


theoneeyedlizard

User Avatar

7259 Posts
Member #: 1268
The Boom Boom speaker Police!

Essex

Looks great. I bet it looks tiny compared with most US cars.

Edited by theoneeyedlizard on 21st May, 2013.

In the 13's at last!.. Just


miniturboRene

54 Posts
Member #: 10130
Advanced Member

Was Netherlands, now Philippines

Haha, the last pic with the Tahoe is great, i lived in Dubai for a while and i was planning to import a Mini. Same overthere, all big cars.
But you have a really nice car, congrats

Rene


Rob Gavin

User Avatar

6729 Posts
Member #: 618
Post Whore

Glasgow

Hah ha! You can forget how small the mini is!


Brocky

User Avatar

807 Posts
Member #: 224
Post Whore

Katy TEXAS

Thanks guys, real glad I have full cage just in case....

Also, who says minis arent pratical,

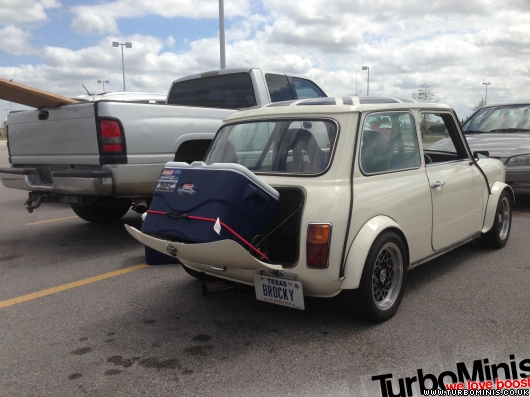

I managed to fit a 30 liter beer cooler in my boot, the carry handle fitted snugly under the lock panel and the wheels just rolled down the boot lid and it sat there, i only put the bungees there just in case...
Perfect fit !

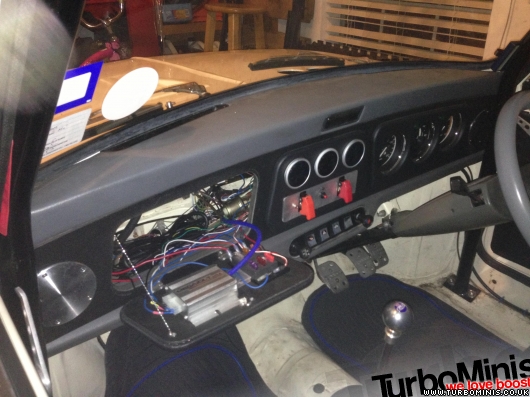

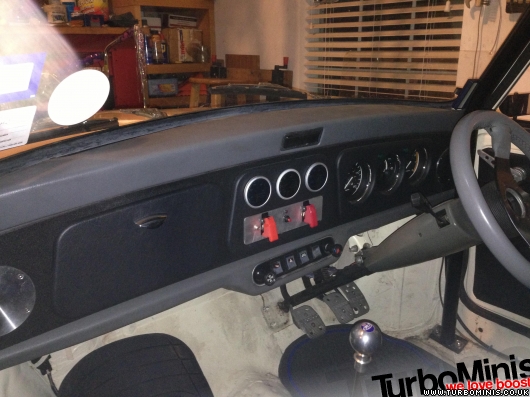

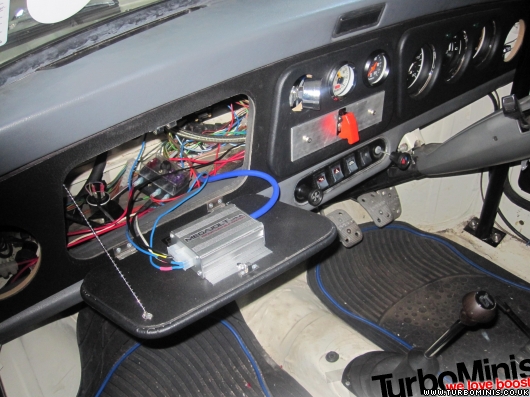

Have also refined the dash and added lambda, oil pressure and matching boost gauges.



Had to add new fuse box too... need to tidy up the wiring though...



Have added covers to the vent holes, old alloy tax disc holders, don't need them now but match the alloy furnature?? (note for the honda boyz you can buy these with "Type R" and the like embrazzened on them, lots of different colours to!). I used 25mm hex head counter sunk M3 bolts tapped through the old front plates (as back plates) on the other side of the holes, may put starter button on the drives side one.

Also got KAD quick shift, with reverse lift lever, which is nice...

Oh and forgot to mention using techniclutch 30% uprated cover with ms lightened verto fw, with machined down lugs to further increase clamping, this has proved good upto 15 psi so far on previous 1310 motor.



Hoping to push 150 nanas on this build, must admit the total seal rings live up to their billing. Oil is still golden after 400 miles, even turbo lag seems reduced, due to increased volumetric efficiency.

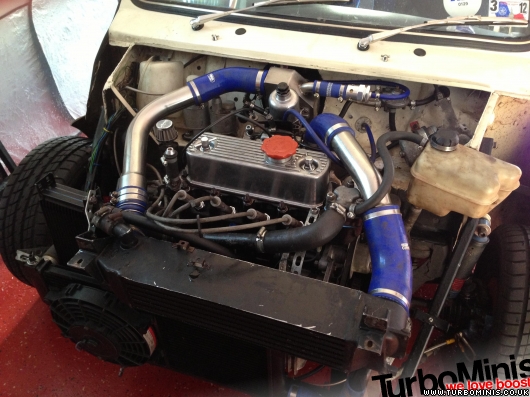

Engine bay needs work, new exp tank, will be talking to fastcarl about that when I order my rear suspension titanium goodies *smiley*



Also going to add second coolant temp sensor to be able to offset ignition curve via programmable input to jolt if gets too hot and kick in second tripac fan using programable output.

Comments welcome.

Cheers

Brocky

BTW - I took my buddy VTEC Pete out for a spin this weekend, and even though I am running her in, he gave it a name, the "Brocket"...cause I'm a brocket maaannn, nah nah nah nah nah nah nah nah nah nah nah....

Edited by Brocky on 4th Jan, 2014.

BTW - I took my buddy VTEC Pete out for a spin this weekend, and even though I am running her in, he gave it a name, the "Brocket"...cause I'm a brocket maaannn, nah nah nah nah nah nah nah nah nah nah nah....

Build thread - http://www.turbominis.co.uk/forums/index.php?p=vt&tid=7483

Katy Mini Owners Club Thread - http://www.turbominis.co.uk/forums/index.php?p=vt&tid=505552

Let's make sure you embarrass at least one VTEC MINI today !

https://www.facebook.com/groups/17557298589...096464253807802


BENROSS

User Avatar

9812 Posts
Member #: 332
Resident Cylinder Head Modifier

Mitsi Evo 7, 911, Cossie. & all the chavs ...... won no problem

Nice update buddy, keep up the good work!






TurboDave16V
Forum Mod

10979 Posts
Member #: 17
***16***

SouthPark, Colorado

Dave, looking really good!

I'll give you a call sometime and catch up.

On 17th Nov, 2014 Tom Fenton said:
Sorry to say My Herpes are no better


Ready to feel Ancient ??? This is 26 years old as of 2022 https://youtu.be/YQQokcoOzeY



wil_h

User Avatar

9258 Posts
Member #: 123
Post Whore

Betwix Harrogate and York

Looks really nice.

Look at the size of the parking spaces! even that irish woman could drive straight into one of them!

Fastest 998 mini in the world? 13.05 1/4 mile 106mph

www.twin-turbo.co.uk

On 2nd Jan, 2013 fastcarl said:

the design shows a distinct lack of imagination,
talk about starting off with a clean sheet of paper, then not bothering to fucking draw on it,lol

On 20th Apr, 2012 Paul S said:
I'm mainly concerned about swirl in the runners caused by the tangential entry.


Brocky

User Avatar

807 Posts
Member #: 224
Post Whore

Katy TEXAS

Thanks Guys,

Dave PM me your new mobile number pls

BTW - I took my buddy VTEC Pete out for a spin this weekend, and even though I am running her in, he gave it a name, the "Brocket"...cause I'm a brocket maaannn, nah nah nah nah nah nah nah nah nah nah nah....

Build thread - http://www.turbominis.co.uk/forums/index.php?p=vt&tid=7483

Katy Mini Owners Club Thread - http://www.turbominis.co.uk/forums/index.php?p=vt&tid=505552

Let's make sure you embarrass at least one VTEC MINI today !

https://www.facebook.com/groups/17557298589...096464253807802


Brocky

User Avatar

807 Posts
Member #: 224
Post Whore

Katy TEXAS

Evening/Morning Chaps,

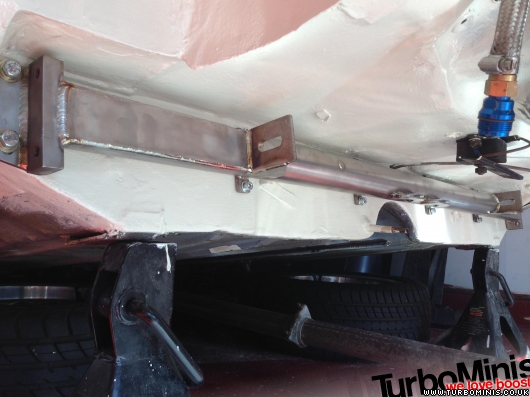

Well finally got all the hard work done in terms of fit up, pre drilling holes and wire brushing and preping for colour matched body colour paint etc....for fitment of the force racing Titanium rear beam...:) Package arrived here in the US quicker than any other order I have made from the UK lol.



Mr Austin you have excelled yourself again *smiley* the beam came with more enhancements than advertised and complete with all the nice fasteners....

Basically replaced 14 kilo subby with 3.5 kgs, which now also includes integral HB quadrants, nice touch Carl, nice surprise...

Also will be replacing spax gas shocks and hilos with alloy protech coil overs, pictures to follow, but basically alloy coilover with springs weigh in at 2/3 of previous set up, now plus minifins, I will be dropping pratically 40 lbs off the back end....*tongue*

More pics to follow, comments welcome,

Cheers

Brocky

Edited by Brocky on 4th Aug, 2013.

BTW - I took my buddy VTEC Pete out for a spin this weekend, and even though I am running her in, he gave it a name, the "Brocket"...cause I'm a brocket maaannn, nah nah nah nah nah nah nah nah nah nah nah....

Build thread - http://www.turbominis.co.uk/forums/index.php?p=vt&tid=7483

Katy Mini Owners Club Thread - http://www.turbominis.co.uk/forums/index.php?p=vt&tid=505552

Let's make sure you embarrass at least one VTEC MINI today !

https://www.facebook.com/groups/17557298589...096464253807802


madonminis

User Avatar

644 Posts
Member #: 9371
Post Whore

East Yorkshire

First time I've seen this thread. Really nice car that. Good job you've made on everything by the looks of it.

BHP sells engines, but Torque wins races!


evad1980

1142 Posts
Member #: 10165
Post Whore

Stansted, Essex

Very nice indeed... And the steering wheel is on the correct side! *tongue*


Brocky

User Avatar

807 Posts
Member #: 224
Post Whore

Katy TEXAS

Thanks guys,

Hope to get the swing arms back on this weekend and may be even bled up,

Will try and post up some more pics

BTW - I took my buddy VTEC Pete out for a spin this weekend, and even though I am running her in, he gave it a name, the "Brocket"...cause I'm a brocket maaannn, nah nah nah nah nah nah nah nah nah nah nah....

Build thread - http://www.turbominis.co.uk/forums/index.php?p=vt&tid=7483

Katy Mini Owners Club Thread - http://www.turbominis.co.uk/forums/index.php?p=vt&tid=505552

Let's make sure you embarrass at least one VTEC MINI today !

https://www.facebook.com/groups/17557298589...096464253807802

Home > Show Us Yours! > Brockys mini update - Updated - Jul 2015
Users viewing this thread: none. (+ 1 Guests)   Next ->
To post messages you must be logged in!
Username: Password:
Page:
