MPI mini --- Hi everyone , I've had an eaton supercharger laying about for a while , I've finally got round to doing my research , what is confusing me is the inlet manifold . it seems the normal set up is a modded inlet to mount the charger. Then the the injectors are mounted at the charger intake. All makes sense - the air and fuel gets sucked through . Now what is bugging the fuck out of me ... is the fuel going through the charger ? Surely it isn't designed to take fuel ? But my big question !!! Is the mpi inlet manifold has the injectors mounted on the inlet manifold just in front of the block ... why not modifying the standard mpi manifold for the charger to sit on top ???? So the fuel doesn't go through the charger ? Am I being totally thick ? Thanks everyone :) ps it's goood to back |
||||||
1030 Posts Member #: 1291 Post Whore Suffolk / Birmingham |
2nd Dec, 2016 at 01:35:20am
I don't think the blowers are designed to take fuel but lots of people do it so they must for the most part be OK. 90% of setups on minis are 'suck through' carb setups where fuel is indeed drawn through the blower. Some say passing fuel though them makes them more efficient as it helps seal the rotors. Some say the coating on the rotors of modern blowers can be damaged by fuel. Neither is clear cut fact so I conclude either is ok.
|
||||||
102 Posts Member #: 155 Advanced Member |
2nd Dec, 2016 at 02:35:51am
Thank you for the reply , I just thought it was odd that nobody has tried the concept and concluded there's a reason .. ? I've been doing further research 'the yanks love their blowers' lol sate side the tuners go either way and after reading many American forums :( lol and returning here to see your reply - your bang on the fuel passing through the blower cools the charge temperature. Interestingly you can combine both - injectors before and after which would be an easy mod with an mpi . I'll continue with the research and hopefully my thread will build up with suggestions and advice Edited by stevecoolerking on 2nd Dec, 2016. |
||||||
102 Posts Member #: 155 Advanced Member |
2nd Dec, 2016 at 02:40:21am
Ps fab advice on the intercooler ! |
||||||
12307 Posts Member #: 565 Carlos Fandango Burnham-on-Crouch, Essex |
2nd Dec, 2016 at 08:24:33am
yep[ as mentioned fuel can cause issues going through the charger, the lobes have a teflon coating and this can flake off, i belive late chargers are less prone to this, and also as with all things it will no doubt depend on how hard your pushing the charger.
On 28th Aug, 2011 Kean said:
At the risk of being sigged... Joe, do you have a photo of your tool? http://www.turbominis.co.uk/forums/index.p...9064&lastpost=1 https://joe1977.imgbb.com/ |
||||||
208 Posts Member #: 438 Senior Member London |
2nd Dec, 2016 at 08:36:35am
Draw through air only and intercooled is how the Bini was set up. |
||||||
102 Posts Member #: 155 Advanced Member |
2nd Dec, 2016 at 10:54:15am

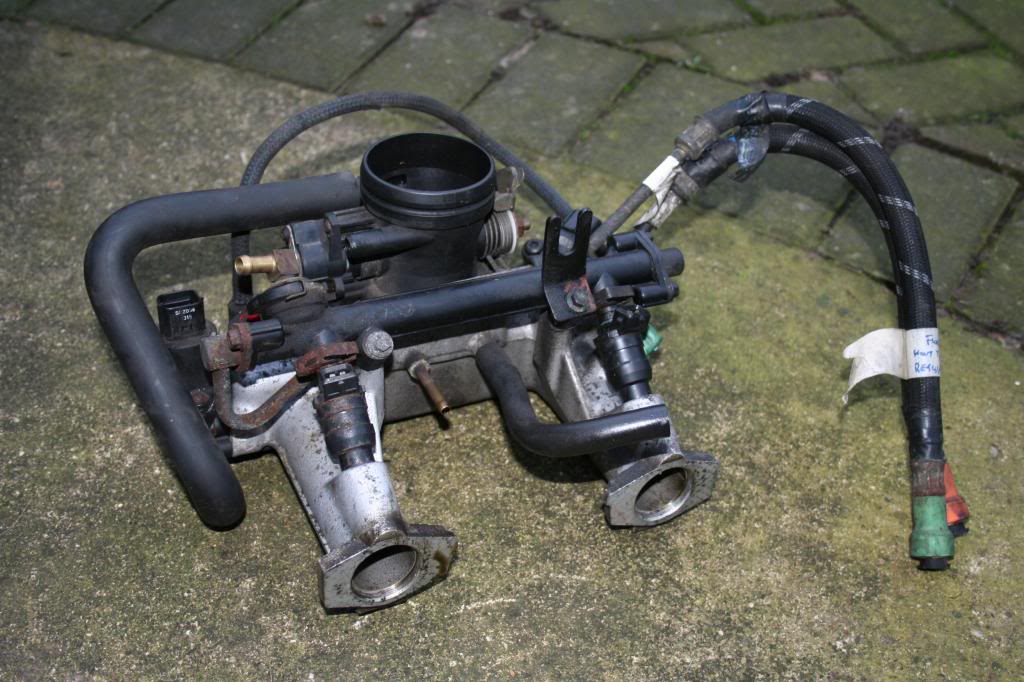

So being rather weirdly OCD and like rain man lol I didn't go to bed drawing up plans in my head. I'm definitely going to go with a front mount for the charger and run the air dry . My initial msg mentioned modding the current mpi intake as compared to DIY and professional charger intakes the original mpi one looks like it flows air a million times better ! so I was thinking how can I add a nice samco take off to it without bastardising it ... after staring at intake for ages it hit me ! The throttle body is plastic and has a lovely lip for a hose . I'm going to strip the gubbins off the throttle body and tidy it up filling any tiny holes then will add a new throttle body on the intake side of the charger lmao ! Bingo ! |
||||||
12307 Posts Member #: 565 Carlos Fandango Burnham-on-Crouch, Essex |
2nd Dec, 2016 at 11:31:26am
something worth considering if your running more than about 10psi is whacking some water injection on the inlet to the charger, it will scrub off some temp and make the charger more efficient and wont hurt the rotors like fuel., On 28th Aug, 2011 Kean said:
At the risk of being sigged... Joe, do you have a photo of your tool? http://www.turbominis.co.uk/forums/index.p...9064&lastpost=1 https://joe1977.imgbb.com/ |
||||||
102 Posts Member #: 155 Advanced Member |
3rd Dec, 2016 at 05:42:49pm
Hi slater I'm back after your suggestion on reading up on the mpi fuel mapping and yep it's complicated lol. Luckily my mates is a physics teacher I've just text him the following -
|
||||||
6743 Posts Member #: 828 Post Whore uranus |
3rd Dec, 2016 at 06:32:20pm
the fpr is ported to the boost in the inlet, so fuel pressure and boost pressure rise synchronously .
Edited by robert on 3rd Dec, 2016. Medusa + injection = too much torque for the dyno ..https://youtu.be/qg5o0_tJxYM |
||||||
1909 Posts Member #: 9764 Post Whore Northamptonshire. |
3rd Dec, 2016 at 06:53:47pm
The pre 04 M45 chargers are ceramic coated and the 04 onwards are Teflon coated.
|
||||||
102 Posts Member #: 155 Advanced Member |
3rd Dec, 2016 at 07:03:01pm
Thanks rob , so if if the fuel pressure regulator synchronises the mixture I shouldnt have any concerns of a lean mixture even with the extra air due to boost from the charger ?
Edited by stevecoolerking on 3rd Dec, 2016. |
||||||
1267 Posts Member #: 831 Post Whore Montreal, Canada |
3rd Dec, 2016 at 07:23:38pm
The only way to get the correct fueling for the entire engine range (load and RPM) is to program the correct fueling and injection timing for the setup you end up with. And you can't do that with the stock ECU. |
||||||
102 Posts Member #: 155 Advanced Member |
3rd Dec, 2016 at 07:39:56pm

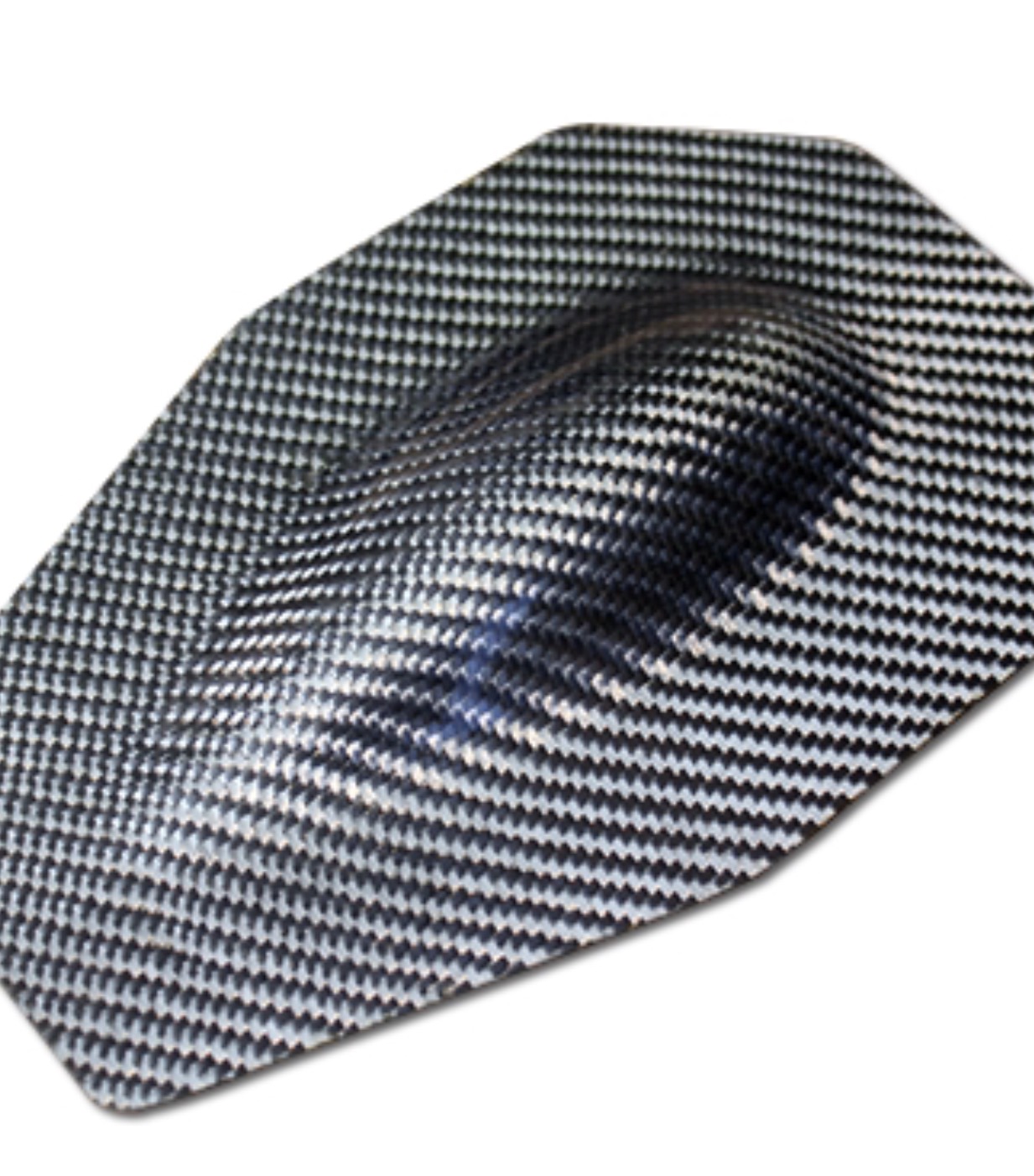

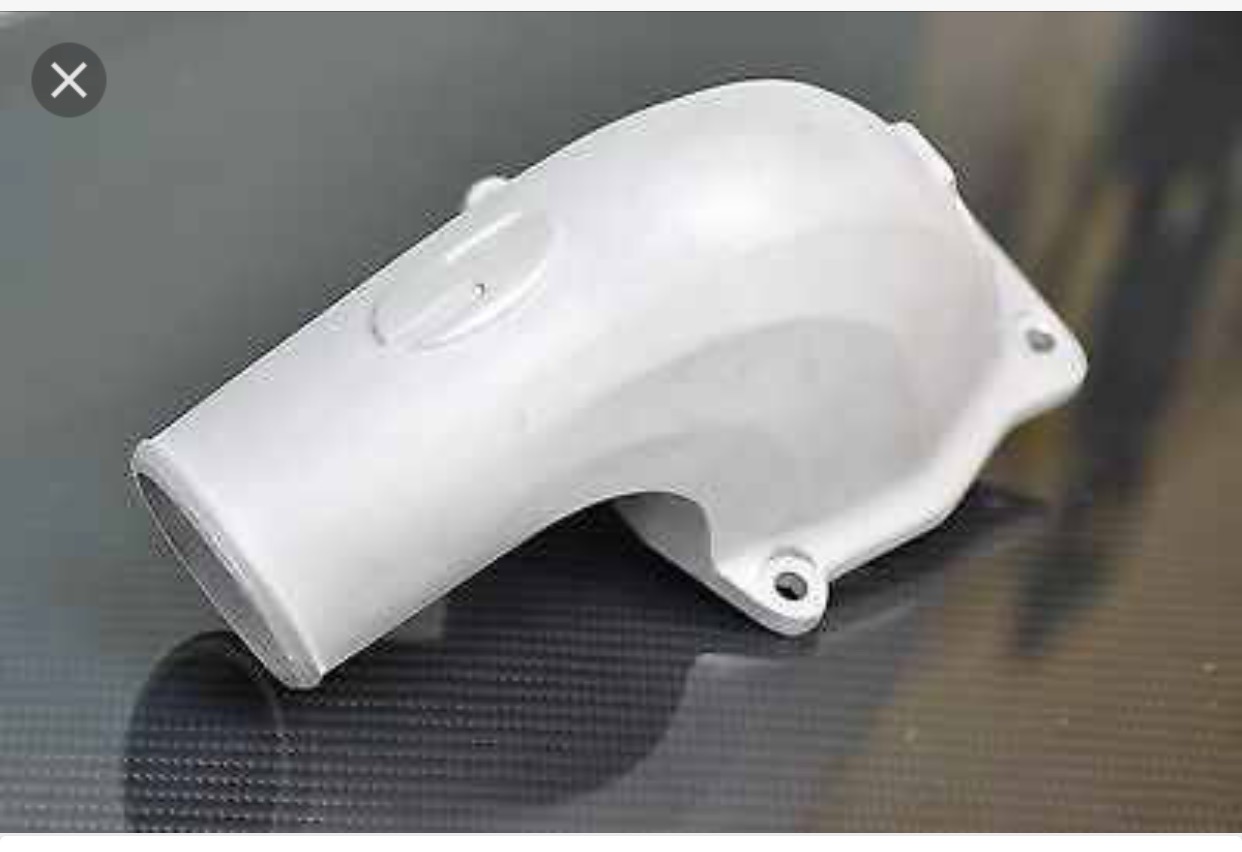

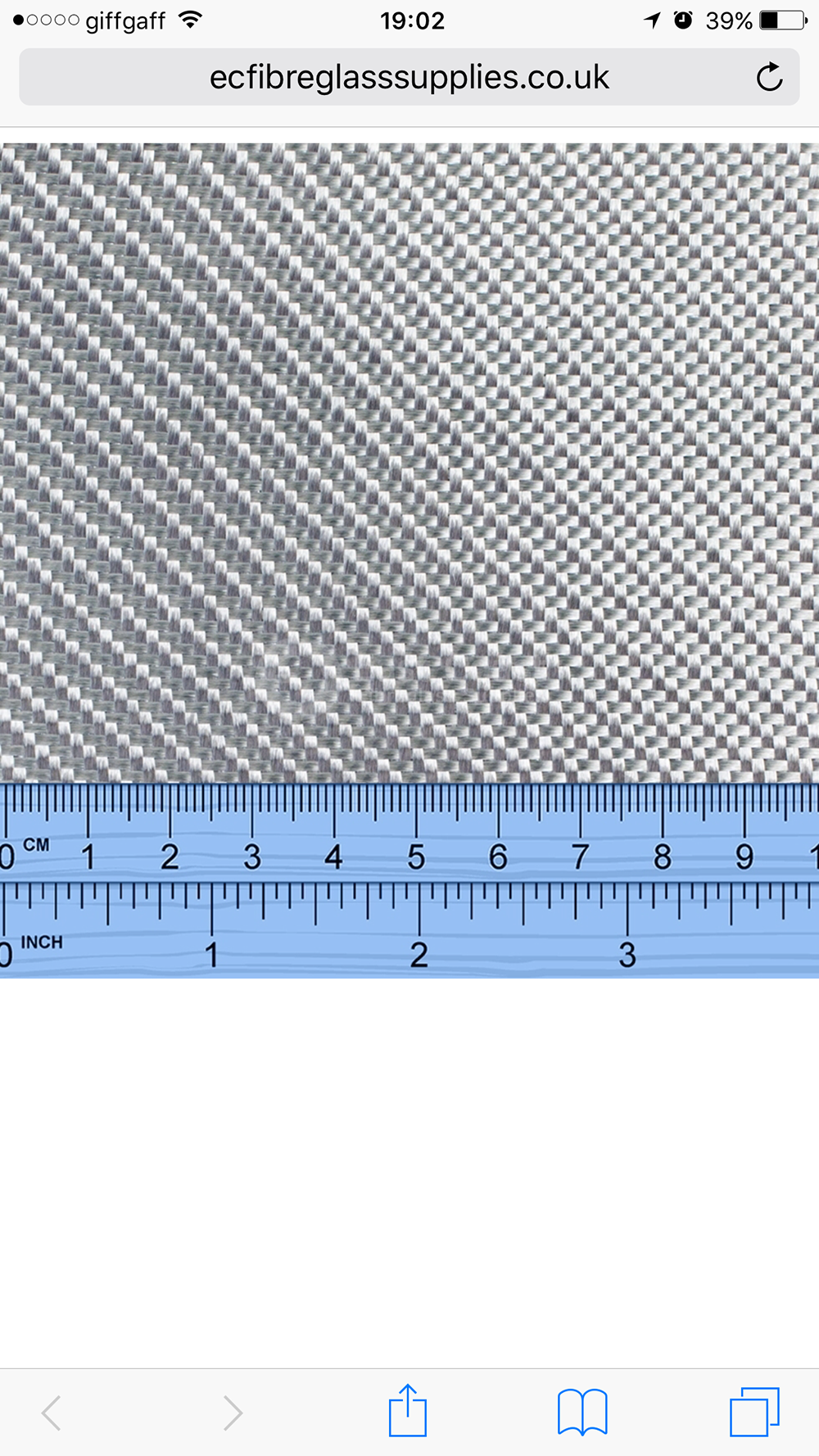

I've done some shopping today I've ordered a decompression plate , a specific blow off atmospheric valve for chargers , it has a dial so you can blow off at a specific boost , although in the U.K It's deemed unessery for superchargers it's considered a sin not have one over the pond with the logic that when you throttle off - the boost pressure is still present and needs to go somewhere so releasing prevents damage to the charger. Obviously with a turbo a bov recicaltes for performance. 'Honest I don't want the tsshht noise' 😂 🙊 😇 I've also looked at the eaton inlet manifolds , my tig welding skills are non existent owing to the fact I don't own a tig welder 😂 And I can't be having a crude diy job and I'm certainly not paying 300 or 400 hundred bucks see pics attached this is a nice inlet from a rx 5 performance web shop - it only costs £479 wtf ? Luckily I'm pretty skilled and knowledgeable in composites , I've ordered some 'alufibre' cloth it will look much more goochy than carbon fibre , its mostly an astetic composite so I'll sandwich it with 'unidirectional glass' very strong and smooth glass fibre that's like carbon fibre cloth. I'll make the mold this evening and post pics :) pic attached of alufibre
|
||||||
102 Posts Member #: 155 Advanced Member |
3rd Dec, 2016 at 07:48:27pm
Yeah I know the mpi ecu is a nightmare and I don't mind getting a mapable one if I have to ... but the 5 port a-series must be a bastard to map ? I'm just thinking if the current ecu is bang on for fuel timing and all I want is a bit more fuel 'in' and fired at the same time and length as per the rover ecu - a larger fuel outlet 'pressure / jets' would be the easier option ? at least in my head - what do you think ? Is this viable ? |
||||||
6743 Posts Member #: 828 Post Whore uranus |
4th Dec, 2016 at 04:52:03am
steve ,no , , if the supercharger is increasing the density of the air , but the ecu is injecting the same duration of inj as it was with no supercharger ,then the engine will run lean ,,,as stevie says, it needs remapping . Medusa + injection = too much torque for the dyno ..https://youtu.be/qg5o0_tJxYM |
||||||
5988 Posts Member #: 2024 Formally Retired Rural Suffolk |
4th Dec, 2016 at 09:28:45am
On 3rd Dec, 2016 stevecoolerking said:
I'm just thinking if the current ecu is bang on for fuel timing and all I want is a bit more fuel 'in' and fired at the same time and length as per the rover ecu - a larger fuel outlet 'pressure / jets' would be the easier option ? at least in my head - what do you think ? Is this viable ? The MPI inlet manifold is designed very specifically to have the injectors right at the head face (port injection) and does run some unique code to get the injection timings required specifically to overcome the siamese port charge robbing issues. However it's fuelling algorithm is, like a lot of ECUs, simple speed/density. It uses engine RPM and inlet manifold pressure (MAP) plus a small correction for air temperature (MAT) to calculate the mass of air going into the engine and uses a map of those key parameters to open the injectors for a specific time. If you fit larger injectors or increase the fuel pressure, the ECU will do the same calculation, it doesn't know the injectors are bigger or higher pressure so too much fuel will go in. There is a feedback loop from an oxygen sensor in the exhaust to "trim" the fuel calculation but I don't believe for a minute it can deal with such significant changes to hardware. And, as the ECU was mapped for a normally aspirated engine it's MAP sensor may not even be capable of reading above atmospheric pressures and even if it physically can I don't expect for a minute Rover extended the fuel maps to any above atmospheric pressures. And as Jean said, the Rover ECU is not designed to be re-mapped (well not easily anyway). Schrödinger's cat - so which one am I ??? |
||||||
11046 Posts Member #: 965 Post Whore Preston On The Brook |
4th Dec, 2016 at 09:54:04am
The MPI MAP sensor is only an absolute sensor and wont measure much above 115kpa, I also seem to remember that the ECU cuts all fuel at about this pressure, so using the stock ECU in a boosted application wont work, never mind that it still wouldn't provide the right fuel or ignition On 26th Oct, 2004 TurboDave16v said:
Is it A-Series only? I think it should be... So when some joey comes on here about how his 16v turbo vauxhall is great compared to ours, he can be given the 'bird'... On 26th Oct, 2004 Tom Fenton said:
Yep I agree with TD........ |
||||||
11046 Posts Member #: 965 Post Whore Preston On The Brook |
4th Dec, 2016 at 10:08:10am
That said, I've seen people try to do this by place the MAP sensor on the inlet of the charger to get round the MAP sensor issue and just raise the fuel pressure, or use a bigger injector in an effort to get the fueling somewhere right, but the ignition timing is still way too high. They then try to retard the crank trigger to compensate, and loose idle control.
On 26th Oct, 2004 TurboDave16v said:
Is it A-Series only? I think it should be... So when some joey comes on here about how his 16v turbo vauxhall is great compared to ours, he can be given the 'bird'... On 26th Oct, 2004 Tom Fenton said:
Yep I agree with TD........ |
||||||
102 Posts Member #: 155 Advanced Member |
4th Dec, 2016 at 06:43:33pm
Very informative thank you guys ☺️ Ok new ecu it is 😂😭 I suppose if it was cheap and easy everyone would be boosting ! Lol ! I'll keep my thread going as the project is under full steam - I should get my composites tomorrow or Tuesday so I'll have my charger intake built mid week and my additional throttle body has come 👌 So I'll get round to stripping that - I think the new ecu is the way forward as I'm still keen to keep the injectors on the inlet manifold and have the charger dry 👍 Oh and I've got a pukka little intercooler on route off eBay 20 quid lmao ! It's off a smart brabus it's got a shroud and a fan ! goochy or what ? 😂 Edited by stevecoolerking on 4th Dec, 2016. |
||||||
102 Posts Member #: 155 Advanced Member |
4th Dec, 2016 at 06:48:18pm

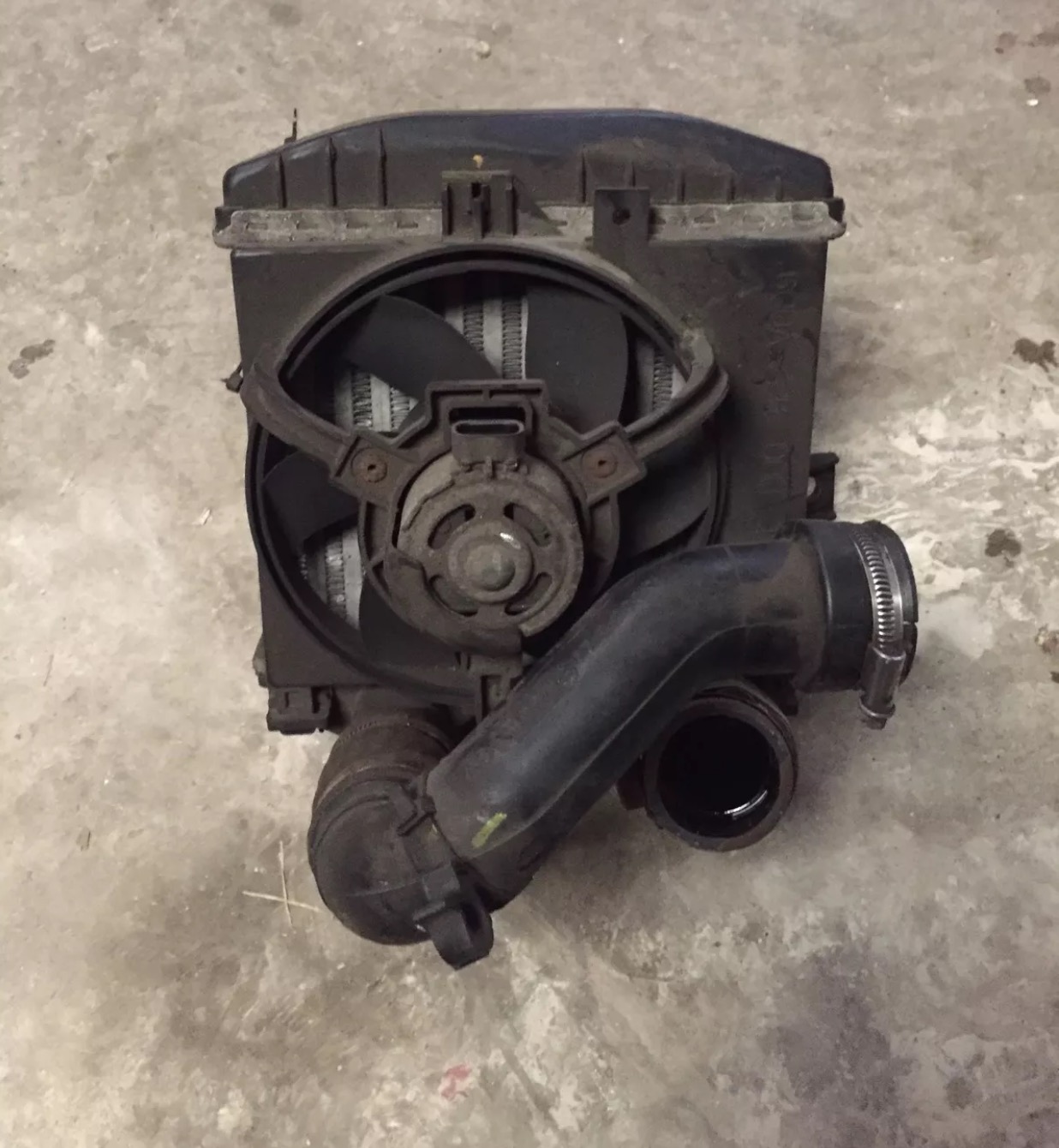

Intercooler - dunno how big it is or tech specs but 20 quid worth a looksy and I like the fan 😂 The kid in me 😂👍 |
||||||
102 Posts Member #: 155 Advanced Member |
4th Dec, 2016 at 07:03:06pm
Random question , so when it's time for my ecu is my local rolling road tuner gonna get the weird mpi set up with the minis 5 port ? |
||||||
5988 Posts Member #: 2024 Formally Retired Rural Suffolk |
4th Dec, 2016 at 07:57:04pm
On 4th Dec, 2016 stevecoolerking said:
Random question , so when it's time for my ecu is my local rolling road tuner gonna get the weird mpi set up with the minis 5 port ? There is no easy or nice answer to this because it's NO..... (unless you go for the wet manifold setup). If you do port injection (MPI type manifold) you need an ECU that can vary the injection timings per cylinder and you need to have widebands in both the inner and outer exhausts to see what is going on to set it up. 5 port siamese injection, doing it at the ports, is not simple. Which is why only a few of us do port injection. If you go down the port injection route (MPI type manifold) I strongly suggest you read up all of the threads of those of us who do it. Schrödinger's cat - so which one am I ??? |
||||||
102 Posts Member #: 155 Advanced Member |
5th Dec, 2016 at 07:59:20pm
Hi all , another 24 hours of being awake cooking the books on fueling ... did any of you ever come across a thread when a guy added 2 additional mpi injectors into the standard intake - fareplay to him fucking hell of an effort - if it's OK with the mods I'll post a link it's an absolute fab read ... there's nothing to pick apart but let's have a thumbs up for him 'legend'
Edited by stevecoolerking on 5th Dec, 2016. |
||||||
967 Posts Member #: 3228 Post Whore North of the Netherlands |
6th Dec, 2016 at 11:27:19pm
Well....
On 5th Dec, 2016 stevecoolerking said:
Hi all , another 24 hours of being awake cooking the books on fueling ... did any of you ever come across a thread when a guy added 2 additional mpi injectors into the standard intake - fareplay to him fucking hell of an effort - if it's OK with the mods I'll post a link it's an absolute fab read ... there's nothing to pick apart but let's have a thumbs up for him 'legend' http://www.theminiforum.co.uk/forums/topic...r-mpi-manifold/ Dazed and Confused.... |
||||||
