Ok Heres my little guide on fitting a new style quaife into your mini, its very simple:

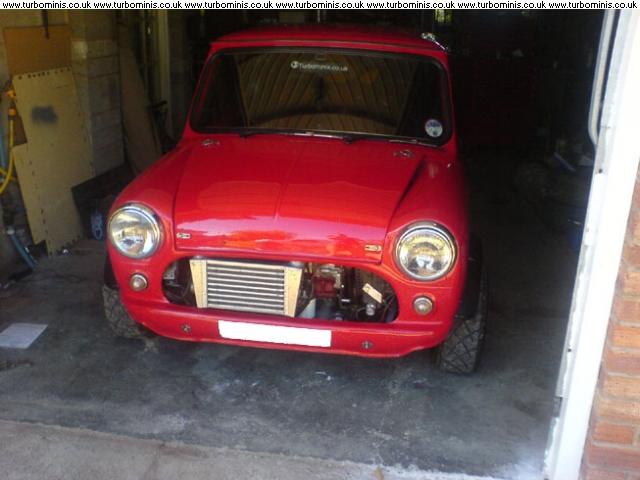

1. Take one mini:

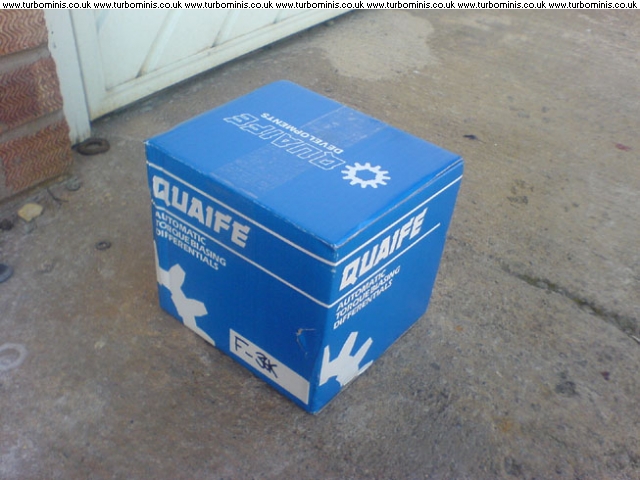

2. And one box of tricks, mine came from BJ Autobits. Try not to snigger like i did when the phone is answered with "Hello BJ's"


Remove all packaging and stickers to leave a diff in a bag

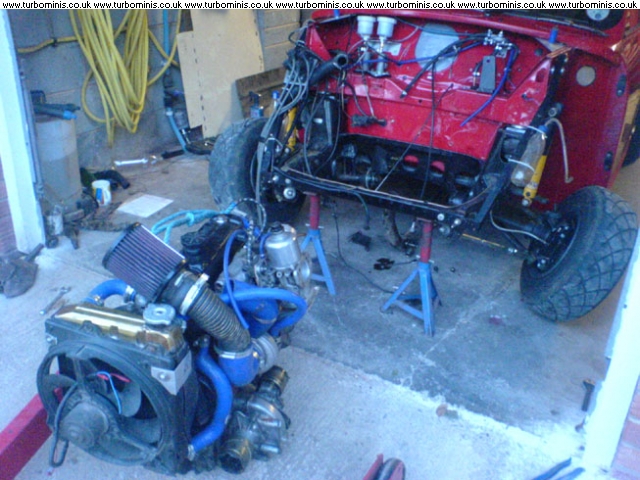

3. Clap hands and watch as the engine removes itself:

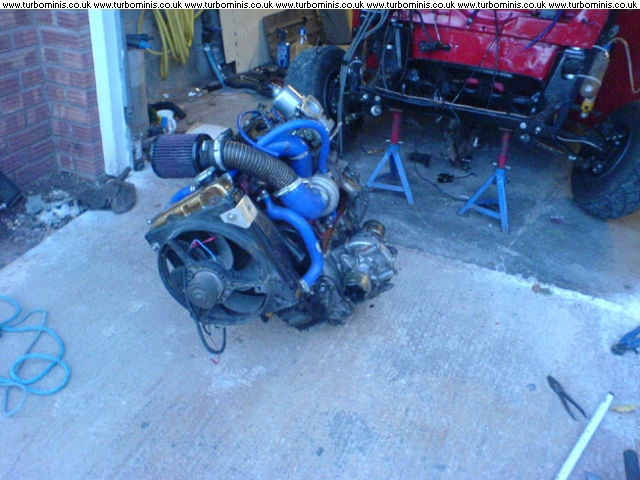

4. If your a bodger like me, lean the engine forward on some bricks under the starter so you dont need to drain the oil:

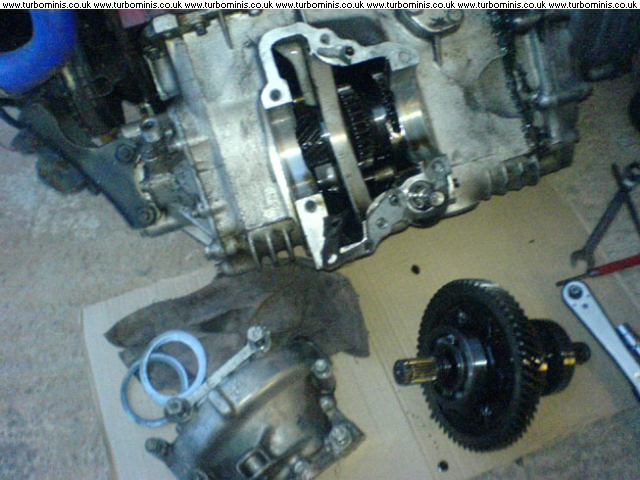

5. Remove diff covers to remove the old diff, in this case a minispares 4pin:

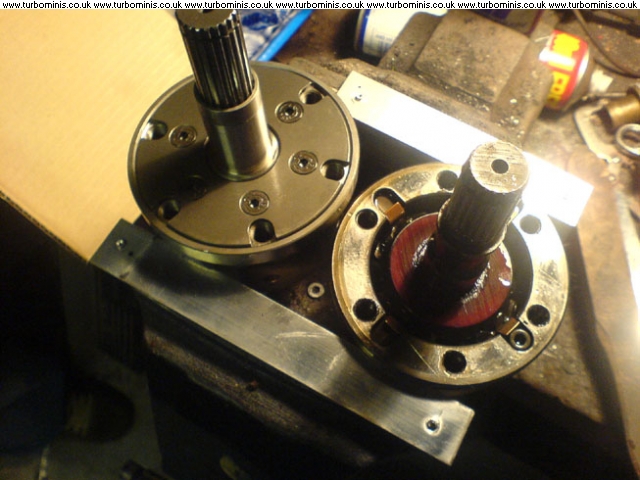

6. Remove the bearing and then crownwheel if you are going to use it on the quaife. Rejoice in the fact that you can now use a sensible ratio and admire the differences between the two. The quaife comes ready to roll:

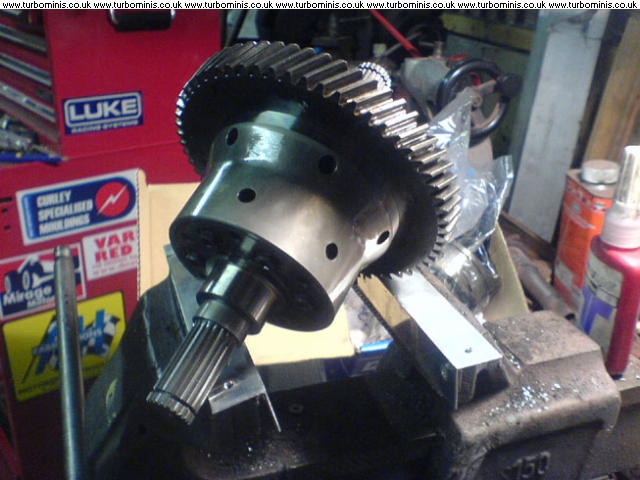

7. Place the crownwheel on the quaife and torque up the std bolts (ill add the setting here soon), then fit the new diff bearings:


8. Check for clearance in the covers and fit the diff onto the car, and push it towards the radiator end. Use gaskets if they were there originally, fit the side end cover and preload the diff as per the haynes but shimming the opposite side. Torque up all the covers.

9. With the help of someone strong- Popeye, Desperate Dan, The Incredible Hulk, etc, put the engine back into the car.

10. To finish off, fit the sticker somewhere useful and go enjoy:


See isnt that easy



So then how does it drive?????

Well ive never driven any other sort of lsd so I cant tell you how it compares, but
-Under normal driving conditions it feels the same as the std diff

-When giving it beans in a straight line on a smooth flat road its AMAZING, the car pulls straight and lurches forward much quicker than the open diff

- On bumpy roads its not too bad, a little bit lively but no worse than the open diff (now ive tightened up the ball joints :$ )

-Theres a long straight near my house that has drainage channels underneath it. Its easy to jump the car on these and with the open diff id find myself zig zag-ing up the road like AlexB after one too many babychams at avon. However I managed to go up here in a controlled fashion on 20psi of boost. (I find this interesting as Calver states that it cuts the drive to the wheel on the ground if the car jumps and was expecting to fly off the side of the road)

Now to find out how it improves my 60fts...
