SIDE MOUNTED TURBO SETUP AND MANIFOLD DESIGN FOR ANYONE OUT THERE INTERESTED???:)
Turbo Mini Forums

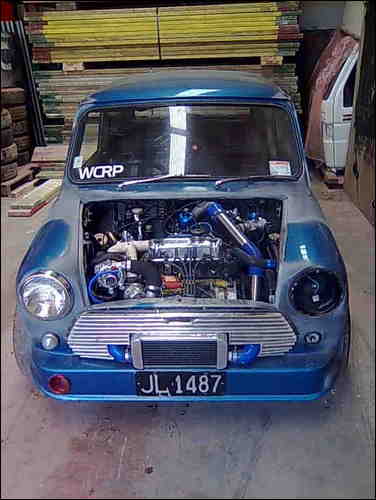

THIS IS MY SIDEMOUNT SETUP FROM NEW ZEALAND :)

IT WORKED WELL ON MY 1100CC CLUBMAN ENGINE THAT HAD 4-8PSI PUSHED INTO IT. LOADS OF FUN..I PLAN TO PUT THE 1100 BACK IN ONCE THE CAR IS FINISHED FROM ITS MIGLIA ROAD LEGAL BUILD UNTIL THE M.E.D GROUP A ENGINE IS ON ITS WAY....:)

FEW PEOPLE AFTER PICS AND INFO ON HOW TO DO IT SO ILL POST MINE UP. IM SURE SOME OF YOU MAY HAVE SEEN THESE BEFORE.

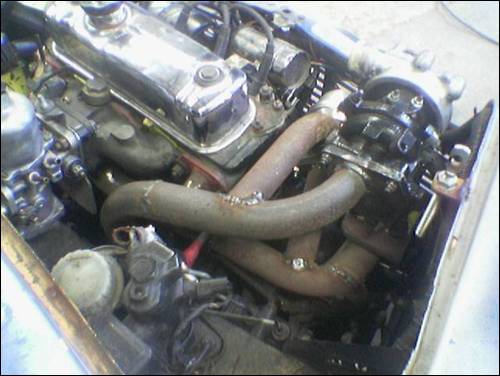

MANIFOLD - 2MM WALL STEAM PIPE 2" DIAMETER TO TURBO.
3MM WALL STEAP PIPE DUMPIPE 2.5" DIAMETER

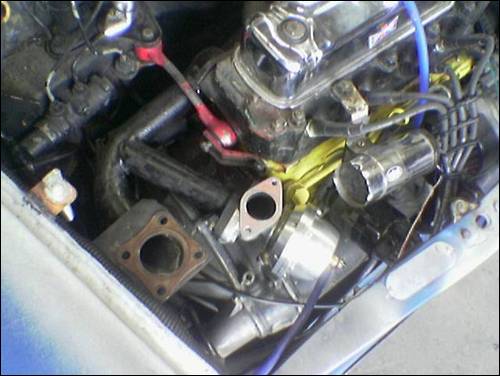

38MM EXTERNAL WASTEGATE PLUMBED INTO MANI

TURBO - TOYOTA CT9 (FITTED TO A RANGE OF CARS)

FUELING - BOSCH 090 FUEL PUMP
AEROMOTIVE RISING RATE FUEL REG
8MM FUEL LINES WITH RETURN
HIF44 NA METRO SU MODIFIED TO SUIT BOOST
PRESSURE. BDD NEEDLE AND TURBO JET
