Home > Show Us Yours! > Efi Supercharged Blow Through

turbominik

33 Posts
Member #: 8976
Member

Hi all I've been registered for year but never posted a topic but now I think its time to show the progress and giving you an idea of how I'm converting from carburettor to multi point. So after hours searching on the forum trying to understand the problem in injecting an a-series engine and trying to find the best ecu that will work on a 5 port head, I came with a conclusion and bought a MS3X from Extraefi. As for injector I'm using siemense deka, two 480cc for primaries and two 875cc for secondary's.
The engine is 1275 A+ with omega forged +20 pistons, H section rods, standard balanced crank, med light weight non verto flywheel assembly, med rs camshaft, 1.5 roller rockers, ported and polished head, straight cut gears and the supercharger is a m45 mounted at the front of the engine.

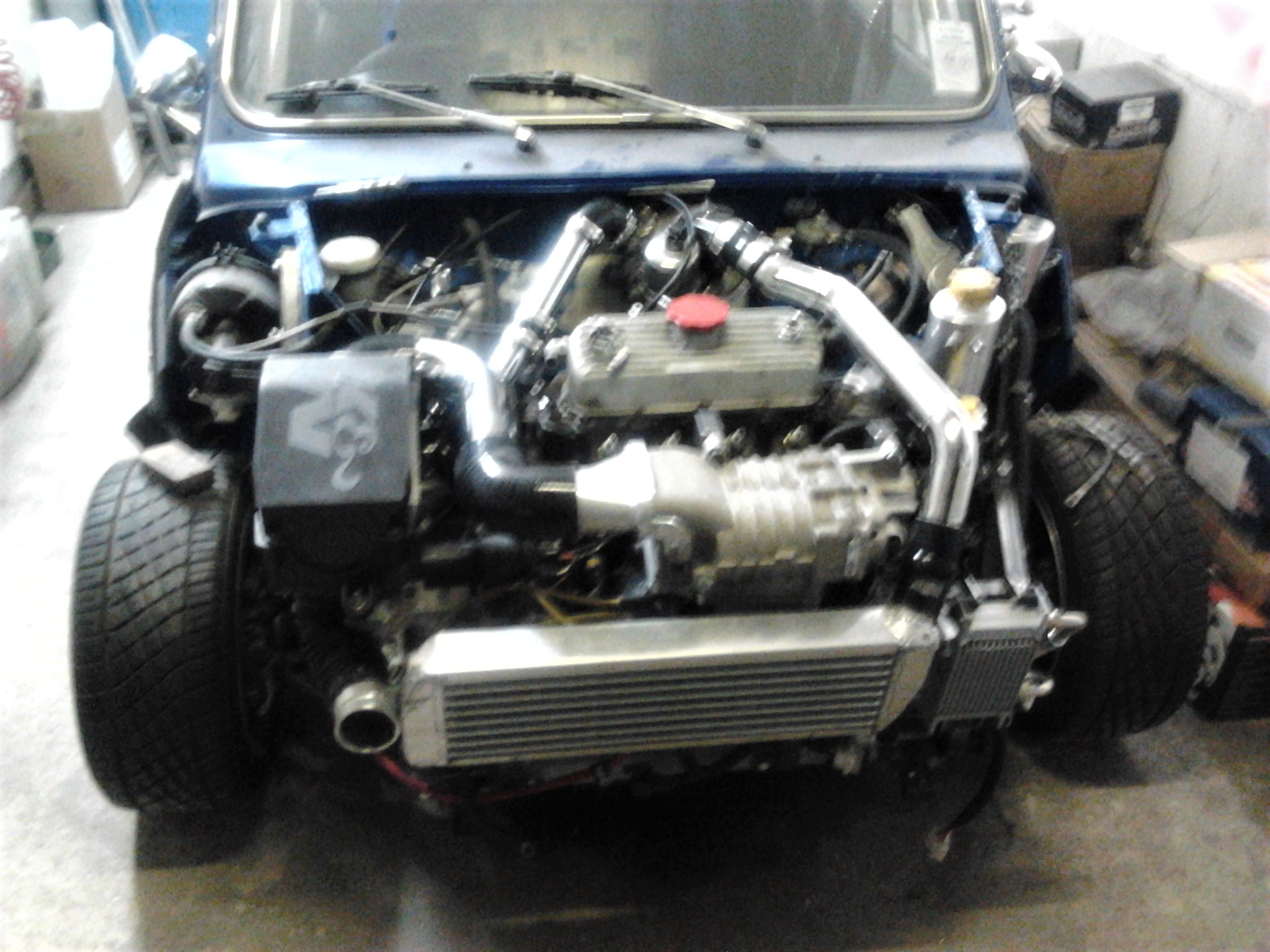

This is the setup with the carburettor sorry for the poor image.

Edited by turbominik on 1st May, 2018.


turbominik

33 Posts
Member #: 8976
Member

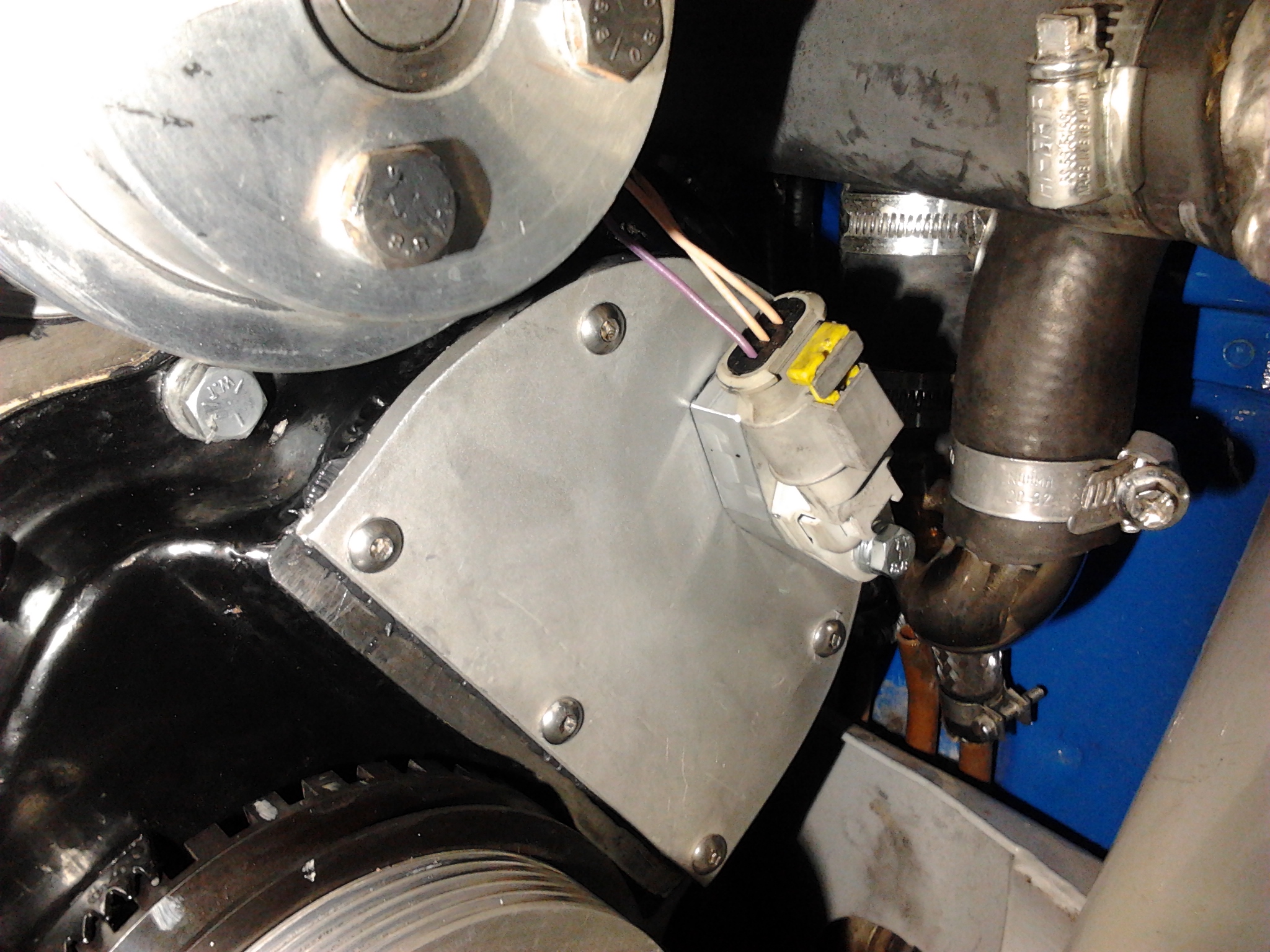

This is the crank and cam sensor.



jonny f

User Avatar

1861 Posts
Member #: 9894
Post Whore

Dorking

Sounds like a nice setup.

I presume it’s a clubman front end?


turbominik

33 Posts
Member #: 8976
Member

Its a steel round nose flip front but with 3 inch extra




Attachments:

Edited by turbominik on 2nd May, 2018.


slater

User Avatar

976 Posts
Member #: 1291
Post Whore

Suffolk / Birmingham

Interesting looking project. Did it work ok on the carb?


Rod S

User Avatar

5822 Posts
Member #: 2024
Formally Retired

Rural Suffolk

Interesting cam sensor.
Hall switch I presume from the three wires but what is it looking at on the sprocket ?

Schrödinger's cat - so which one am I ???


turbominik

33 Posts
Member #: 8976
Member

Hi it worked well on carb but you now you always want to improve something
For cam sensor, yes its a hall type and its seeing a higher head of one of vernier cam sprocket locking bolt.
I want to ask a question how can i host pictures from google photos because when I put Img in square brackets at the beginning and at the end of the url the photos are not displayed in the post?

Edited by turbominik on 2nd May, 2018.


Rod S

User Avatar

5822 Posts
Member #: 2024
Formally Retired

Rural Suffolk

On 2nd May, 2018 turbominik said:

I want to ask a question how can i host pictures from google photos because when I put Img in square brackets at the beginning and at the end of the url the photos are not displayed in the post?

Lots of forums won't work with google's photo system - I'm not sure about this one - but have you added the forward slash to the second set of square brackets ???
[ IMG ] .... [ /IMG ]
but without the spaces between the square brackets and IMG
(if I omit the spaces in my example the forum expects an image in between where the ... is in my example....)

Edited by Rod S on 2nd May, 2018.

Schrödinger's cat - so which one am I ???


turbominik

33 Posts
Member #: 8976
Member




On 2nd May, 2018 Rod S said:
On 2nd May, 2018 turbominik said:

I want to ask a question how can i host pictures from google photos because when I put Img in square brackets at the beginning and at the end of the url the photos are not displayed in the post?

Lots of forums won't work with google's photo system - I'm not sure about this one - but have you added the forward slash to the second set of square brackets ???
[ IMG ] .... [ /IMG ]
but without the spaces between the square brackets and IMG
(if I omit the spaces in my example the forum expects an image in between where the ... is in my example....)


Yes I added the forward slash without any spaces to the second set of square but it didn't work but when I post the url only the link works and the photo is opened in an other window.


turbominik

33 Posts
Member #: 8976
Member

So finally I got hold on how to host pictures from google photos *Clapping* and now I can show the progress on the intake manifold.
Basically the manifold will be a dual plenum and here are a couple of virtual shots









And here is the progress in reality

First i started with the two runners, from a peace of solid aluminium block like this



after days using a chisel and hammer I managed to finish the two runners. *tongue*





These are the trumpets






turbominik

33 Posts
Member #: 8976
Member

Here is the custom fuel rail







The runners, trumpets, injectors and fuel rail all together for the first time. *Yes*







Edited by turbominik on 3rd May, 2018.


Turbo Phil

User Avatar

4229 Posts
Member #: 20
My sister is so fit I won't show anyone her picture

Lake District

That's some nice DIY.

Phil.

WWW.TURBO-MINI.COM


jonny f

User Avatar

1861 Posts
Member #: 9894
Post Whore

Dorking

Impressive!


TurboDave16V
Forum Mod

10835 Posts
Member #: 17
***16***

SouthPark, Colorado

Someone stood at the mill a long time doing those pieces!

Where are you located? I feel like I've seen this mini before?

On 17th Nov, 2014 Tom Fenton said:
Sorry to say My Herpes are no better


Who remembers this first time around: https://www.youtube.com/watch?v=JF0a5aoEGsw


Joe C

User Avatar

12109 Posts
Member #: 565
Carlos Fandango

Burnham-on-Crouch, Essex

this looks like the install that was in the mini that JohnySTI used to have, it wasa Vmax blowthrough prototype IIRC.

On 28th Aug, 2011 Kean said:
At the risk of being sigged...

Joe, do you have a photo of your tool?



http://www.turbominis.co.uk/forums/index.p...9064&lastpost=1

https://joe1977.imgbb.com/



turbominik

33 Posts
Member #: 8976
Member




On 3rd May, 2018 TurboDave16V said:
Someone stood at the mill a long time doing those pieces!

Where are you located? I feel like I've seen this mini before?


Hi I'm located in Malta and yes i stood a long time at mill i think for each runner it took more than 12 hours and also countless hour to design them on the cad, but I'me very pleased on how they came.


turbominik

33 Posts
Member #: 8976
Member

Hi a little bit more update, here are some pics of the runners in place and cardboard model of the plenum just to have an idea of the clearance between the bulkhead and plenum.









turbominik

33 Posts
Member #: 8976
Member

Hi a little bit more update I've started to build a part of the plenum which is this



and this is the progress so far.








theoneeyedlizard

User Avatar

7069 Posts
Member #: 1268
The Boom Boom speaker Police!

Essex

Nice build *Clapping*

In the 13's at last!.. Just


turbominik

33 Posts
Member #: 8976
Member

Hi today's update. After a little bit of grinding, polishing and adding an end plate the part ended like this.






Edited by turbominik on 11th May, 2018.


turbominik

33 Posts
Member #: 8976
Member

Hi today I thought that I should also show some photos of the interior.








turbominik

33 Posts
Member #: 8976
Member

Hi a little bit more update, today I've finished the throttle body flange, its made from 10mm aluminium flat bar. The throttle body is from a renault megane, it has a 4 wire stepper motor for idle control.





And here is the flange









dan187

User Avatar

747 Posts
Member #: 6724
Post Whore

Wootton Bassett

looking great so far!

1275 N/A Sprite, 998 T2 Turbo Mayfair
1275 EFi Turbo


TurboDave16V
Forum Mod

10835 Posts
Member #: 17
***16***

SouthPark, Colorado

Is that mig welded alloy?

On 17th Nov, 2014 Tom Fenton said:
Sorry to say My Herpes are no better


Who remembers this first time around: https://www.youtube.com/watch?v=JF0a5aoEGsw


turbominik

33 Posts
Member #: 8976
Member

It's tig welded alloy

On 31st May, 2018 TurboDave16V said:
Is that mig welded alloy?
