Ride height request
Turbo Mini Forums

Hello just wondering if people with lowered cars can post up their ride heights measured from the sill seam to the floor at the front and back, i notice that the mighty minis have to run between 220mm and 250mm at the front and between 240mm and 270mm at the rear, is this a good figure to aim for? Oh my car is on 10's btw, cheers, gav

gav is the car for road or track use ? i lowered the shit outa my last one (on tens) and i used to get stuck on speed bumps !!! i know you will have considered it anyho but put slightly longer "RACE" bump stops on if ure lowering ure car or u will lose wheel arches / spats like a lepper loses his fingers !!!

i had 2 finger gap between wheel and archeway thats index finger and fore finger

Edited by Richie on 2nd Feb, 2007.

______________________________________________________
TRADER HALL OF FAME
BENROSS...MINIMARK..WOLFIE (comic genius).....CARL....MARTPAUL.......AXEL
______________________________________________________
TRADERS OF SHAME
1 user....pm me 4 details

LEGENDS
MikeRace, Mini13

I'm thinking of running 10" all round (254mm) to start with and then drop it if nothing is catching at that.

I am running 13" though and have uprated bump stops at the front and cut out the front and rear arches. I've made sure the tyre will hit steel before the GRP arches.

There isn't much room between the bumpstop and the top arm just now.

Racers run nearly on the bump stops, but on smooth tarmac this isn't an issue, on the road it is a different matter.

Also unless you have lowered shocks you will need to fit the lowered top mounts at the front. You may also need extend track rod ends

BTW - I took my buddy VTEC Pete out for a spin this weekend, and even though I am running her in, he gave it a name, the "Brocket"...cause I'm a brocket maaannn, nah nah nah nah nah nah nah nah nah nah nah....

Build thread - http://www.turbominis.co.uk/forums/index.php?p=vt&tid=7483

Katy Mini Owners Club Thread - http://www.turbominis.co.uk/forums/index.php?p=vt&tid=505552

Let's make sure you embarrass at least one VTEC MINI today !

https://www.facebook.com/groups/17557298589...096464253807802

I measured my daily driver (mini 30) a minute ago and it was 8.5 inches at the front! no wonder the wheel arch broke, the turbo will be used on the road, oh and brocky it should always be a little higher at the back roughly 3/4".

mines also lowered so yo ucan fit two fingers in the gap! good measurement!

With old cones, spax adjustables on 6 clicks on front and 4 clicks on back, and hilos ive got my green one now just how low i had my red one and it doesnt catch



not tried with passengers yet but that isnt a problem! if i do long journeys ill raise it a bit!

Previous Engine: 1040cc Morespeed engine, 1275 turbo head T2 Turbo Mirage Manifolds Megajolt
Previous engine: STD metro turbo, megajolt
Drives: 399bananahp (flywheel) Honda Civic Vtec b18c4 T28 Turbo 1968 Mini

Megajolt maps to download: http://www.jamesfawcett.co.uk/cms/index.ph...&gid=3&Itemid=3

Feebs you must have very small fingers to get between that wheel and arch!

Maybe he meant the outher red car
Allan

http://www.rabdunn.co.uk/

feebs how the hell did you get away with that??? I'd have thought a shout blade of grass would result in tyre to arch contact!!!!!!!

Also to my eyes it looks terrible (each to their own...)

Every day is a school day ...........

How fast and how expensive ...... the same question...

For the minium in torque steer etc try to ge the driveshafts level and the best balance can be had with the rear sitting about 10% of the resultant height higher than the front.

Just my 2ps worth

Every day is a school day ...........

How fast and how expensive ...... the same question...

Off the top of my head the Miglias run 3.5" front (from sill) and 4" at the back.

Quote me if im wrong!

1/4 Mile 14.3secs 96Mph Terminal 10psi of boost.


Fibreglass Parts? - http://www.tdkracing.co.uk/
Split Rims? - http://www.force-racing.co.uk/

Sorry but you are WRONG lol, http://www.turbominis.co.uk/forums/index.php?p=vt&tid=5400 3.5" would be silly!

i havent got a clue what the height was, but back in the day when i ran hi los on the back, the lowest i could get away with was 14mm of thread showing on a genuine hi lo

and on the front i have those fake hilow things, that i run wound down to the minimum (and ride around on the bump stops), should i admit that?

iv got hilos from huddersfield, and i have 8mm of thread on the front and 25mm on the rear.
not sure what it is from the sill though ill measure it tomorow.
in my opinion i could do with it being a bit lower at the front, but if i do ill get the uprated bumb stops!


cheers
josh

My build thread..

http://www.turbominis.co.uk/forums/index.php?p=vt&tid=542985

Hi,
Feebs .. There's no way you could run that low where I live, there's that many bomb holes in the road you'd have no arches by the end of the street!
Cheers,
Gavin :)

VEMs Authorised Installer / Re-seller. K head kits now available!

WB/EGT gauges. Click here for customers write-up

Visit www.doyouneedabrain.co.uk

My Mini build diary

Ive just measured mine from the lip where the trims sits on the sill to the floor. Front 180mm Rear 195mm.

On 10's

https://www.facebook.com/pages/Fusion-Fabri..._homepage_panel

www.fusionfabs.co.uk



1/4mile in 13.2sec @ 111 terminal on 15psi

Feelble, were the rear arches tubbed on that red Mini???

I run about 247mm on the front and 260 on the rear. I am looking at going a smidgen lower, but not untill I tub the rear arches. The rear wheels bottom on these modern UK roads. Though its not so low that i have hit any speed bump yet since i replaced the exhaust link pipe and cat with a straight section of 2" pipe. The exhaust is well tucked up.

Edited by Sprocket on 4th Feb, 2007.

Cheers guys, matty did you tub your arches to run that low?

Mine is 215 at the front and 245 on the rear. 12" wheels and no tubbing. No problems running on the road.

I have had it 20mm lower at the back but it handled rubbish.

Feebs, that can't be right, that WOULD rub unless you drive like granny!. I suspect that the slope it is parked on is making it look lower and I assume that the other side is higher.

Fastest 998 mini in the world? 13.05 1/4 mile 106mph

You also need some rear camber brackets to knock off that toe in!

Or is that the wheel arch?

Edited by Jay#2 on 5th Feb, 2007.

I have no idea then! no its not sat on bumpy ground it really was that low! 2 fingers fitted between the metal of the body and the tyre, maybe my plastic arches were mounted lower then they were supposed to be!

Is it matty on here with the white mini? His ride height is really low too

Previous Engine: 1040cc Morespeed engine, 1275 turbo head T2 Turbo Mirage Manifolds Megajolt
Previous engine: STD metro turbo, megajolt
Drives: 399bananahp (flywheel) Honda Civic Vtec b18c4 T28 Turbo 1968 Mini

Megajolt maps to download: http://www.jamesfawcett.co.uk/cms/index.ph...&gid=3&Itemid=3

and yes it was a stiff ride and couldnt take passengers i had to raise it to! Also it does look daft because the front couldnt be as low as the rear or it would catch when turning

Edited by jamesfawcett on 5th Feb, 2007.

Previous Engine: 1040cc Morespeed engine, 1275 turbo head T2 Turbo Mirage Manifolds Megajolt
Previous engine: STD metro turbo, megajolt
Drives: 399bananahp (flywheel) Honda Civic Vtec b18c4 T28 Turbo 1968 Mini

Megajolt maps to download: http://www.jamesfawcett.co.uk/cms/index.ph...&gid=3&Itemid=3

No rear arches are standard, they only scrub slightly when its loaded up with camping gear!

Front arches are cut slightly, probably didn't need it, but better to be safe than sorry and they where getting slightly rusty so I chopped it out. Lol

https://www.facebook.com/pages/Fusion-Fabri..._homepage_panel

www.fusionfabs.co.uk



1/4mile in 13.2sec @ 111 terminal on 15psi

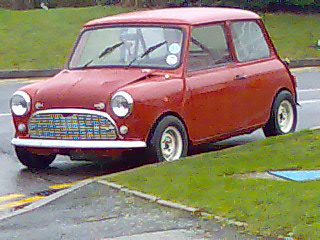

i have about an inch gap, which is 2 my lil fingers between the arch edge & tyre, index & forefinger its running low but not had much trouble with speedbumps etc yet, the odd light scrape on the exhaust bracket, thats it, pic below

Attachments:

53.03kb

SKYLINES ARE LIKE CLITS, EVERY FLANGE SEEMS TO HAVE ONE: see this sticker on my silvia

the Search-section on this forum is blummin superb & simple to use, unlike some other forums, without the search-section & the help of this bunch of chaps on here i'll never be able to !!!Start the day with a 998cc turbo!!! :) i'm getting closer though!

Tom Fenton says: I have it all, make me an offer

I tell you what speed bump got me.... you know on the way to york drag strip, when just entering the village theres some just after a bend that appear without a warning! they are high ones like this but made of block paving i think



i was saved by my sump guard that day!

Previous Engine: 1040cc Morespeed engine, 1275 turbo head T2 Turbo Mirage Manifolds Megajolt
Previous engine: STD metro turbo, megajolt
Drives: 399bananahp (flywheel) Honda Civic Vtec b18c4 T28 Turbo 1968 Mini

Megajolt maps to download: http://www.jamesfawcett.co.uk/cms/index.ph...&gid=3&Itemid=3

hehe, its those rubber ones that are'nt too wide that are really bad, like you get around cinema complex's & such, i have a cheapo sumpguard i'm gonna fit too be a lil safer, i doo take my time over them tho!

feebs you may be able to see where i've cut the flappy single skin tin part of the front valance on my car in the pic above, the bit between the teardrop mounts

SKYLINES ARE LIKE CLITS, EVERY FLANGE SEEMS TO HAVE ONE: see this sticker on my silvia

the Search-section on this forum is blummin superb & simple to use, unlike some other forums, without the search-section & the help of this bunch of chaps on here i'll never be able to !!!Start the day with a 998cc turbo!!! :) i'm getting closer though!

Tom Fenton says: I have it all, make me an offer
